2.2 Description of LCD Annunciators

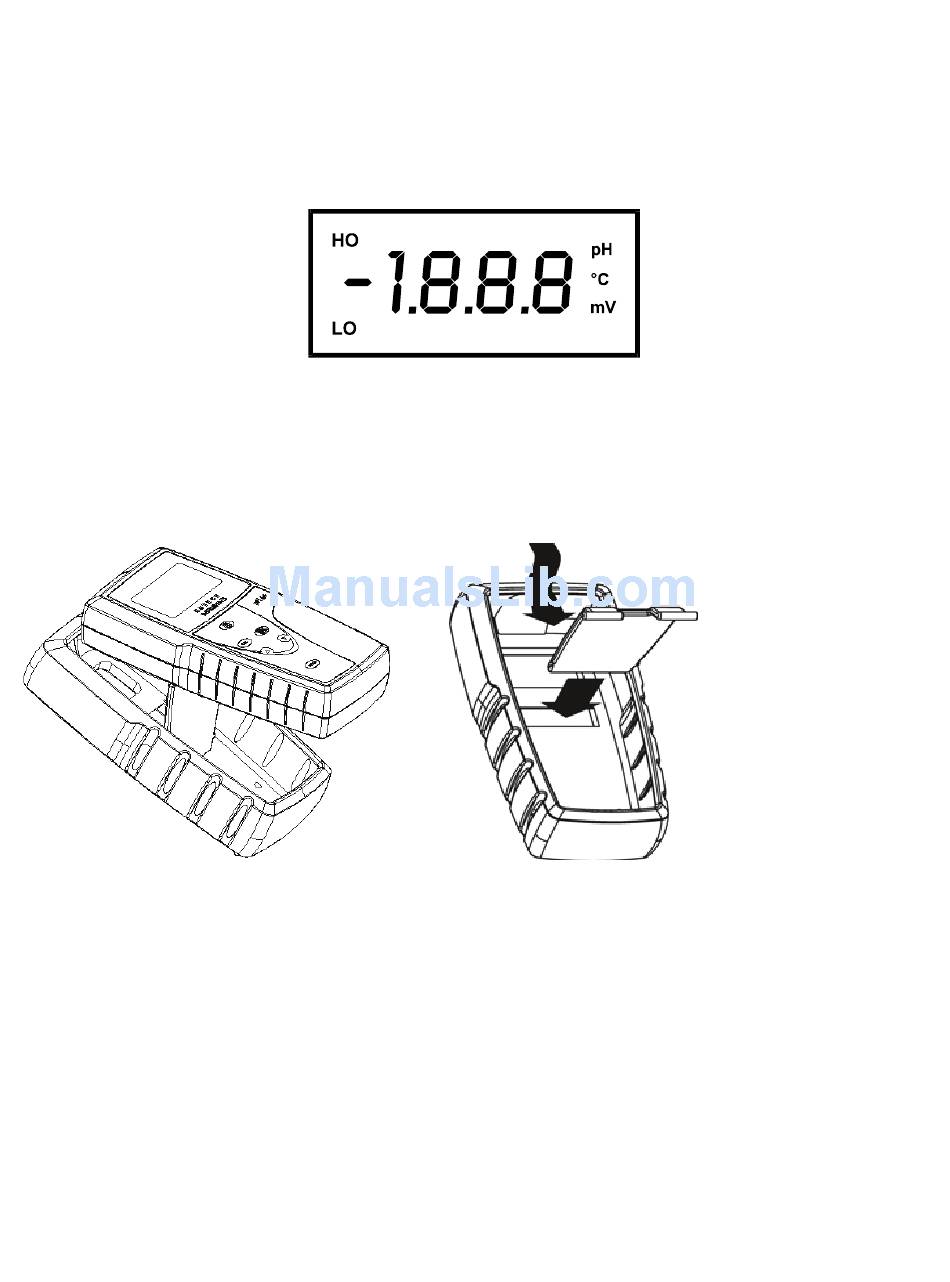

The large custom LCD consists of 3½-digit segments which uses annunciators for pH,

mV or

C (Temperature). No annunciator is shown in Ion mode. Other annunciators

include "HO" (when HOLD function is activated) and "LO" (low battery condition).

2.3 Inserting & Removing the Rubber Armor / Stand

1. To remove meter from rubber armor, push out from the bottom edges of meter until

it is completely out of boot. Ensure that cables of ISE/pH electrode or temperature

probe are not connected. Figure A.

Figure A

2. To insert meter into armor, slide in from the top of meter before pushing the bottom

edges of meter down to set it into position. Lift up the stand at the back of meter for

bench top applications if necessary. Figure B.

Figure B

-4-
