Sony WMS155 Service Manual

SERVICE MANUAL
Ver 1.0 2004. 05

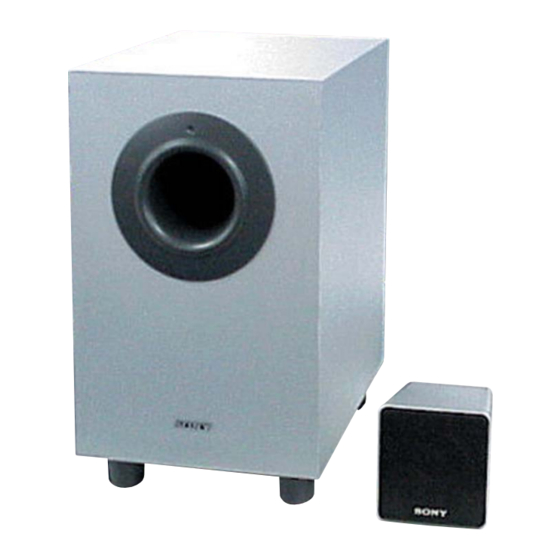

• SA-VE155 consists of the following models respectively.
SUBWOOFER SA-WMS155
FRONT, CENTER AND
SS-MS155
SURROUND SPEAKER
SS-MS155
(front, center and surround speakers)
Speaker system Full range, magnetically
shielded
Speaker units 7 cm, cone type
Enclosure type Closed type
Rated impedance 8 ohms
Power handling capacity
Maximum input power: 100 W
Sensitivity level 83 dB (1 W, 1 m)
Frequency range 120 Hz - 20,000 Hz
Dimensions (w/h/d) Approx. 91 × 96 × 102 mm,
including front grille
Mass Approx. 650 g each
Sony Corporation
9-877-869-01
2004E04-1 Home Audio Company
© 2004. 05 Published by Sony Engineering Corporation
SA-VE155/WMS155/
SA-WMS155 SS-MS155
SPECIFICATIONS
SA-WMS155
(subwoofer)
Speaker system Active subwoofer,
magnetically shielded
Speaker unit Woofer: 16 cm, cone type
Enclosure type Bass refl ex
Reproduction frequency range
32 Hz - 200 Hz
Continuous RMS power output
55 W (4 ohms, 100 Hz,
10 % THD)
Input
LINE IN (input pin jack)
General
Power requirements 220 - 240 V AC, 50/60 Hz
Power consumptions 45 W
Dimensions (w/h/d) E model:
Approx. 210 × 355 × 335
mm
AEP, UK model:
Approx. 210 × 355 × 330
mm
Mass Approx. 8 kg
MICRO SATELLITE SPEAKER SYSTEM
SS-MS155
AEP Model
UK Model
E Model
Supplied accessories
Foot pads (20)
Audio connecting cord (1)
Speaker connecting cords, 10 m (2)
Speaker connecting cords, 3.5 m (3)
Design and specifi cations are subject to change
without notice.
1
