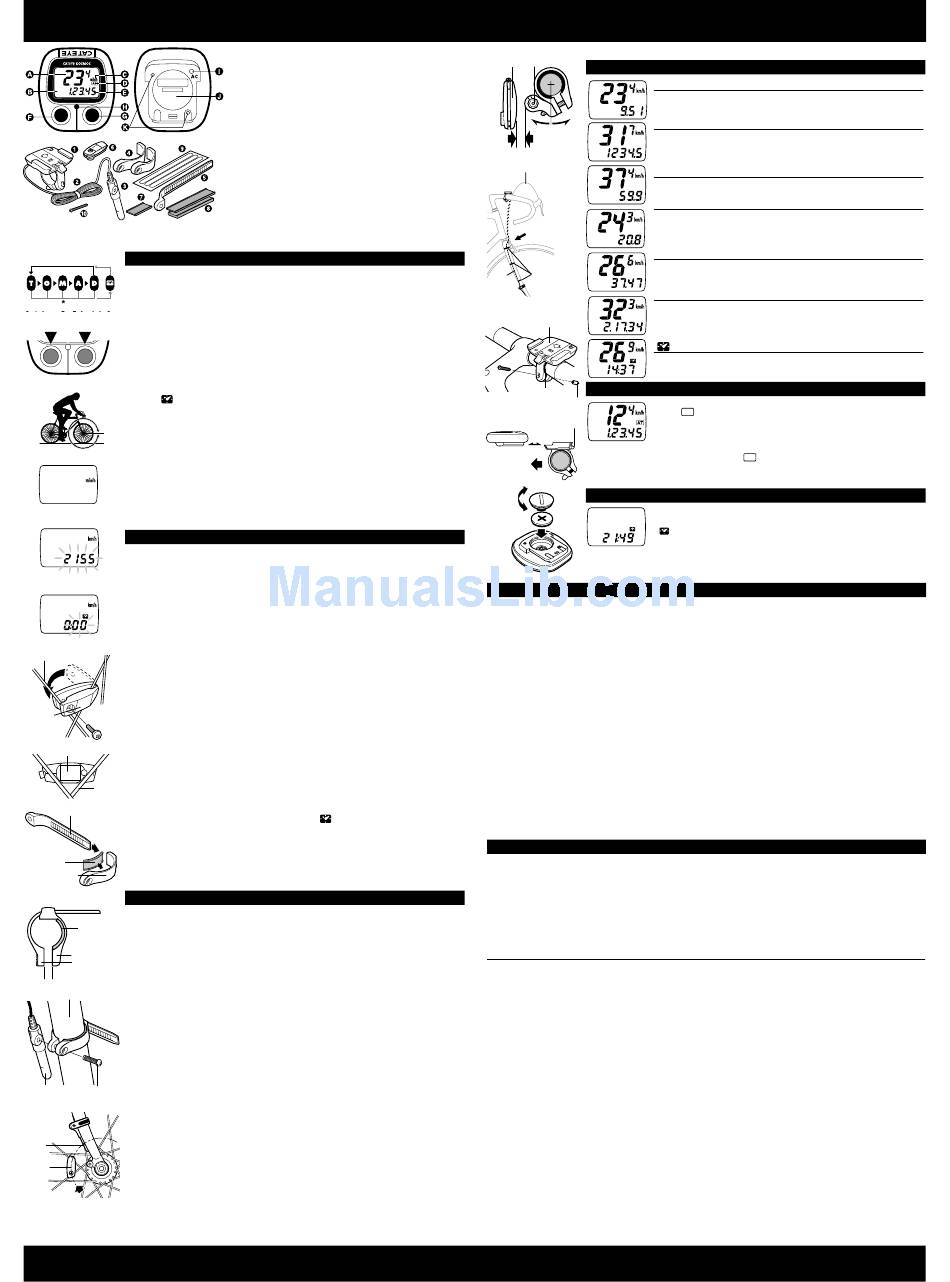

OPERATING INSTRUCTIONS
T
BUTTON FUNCTION
• MODE Button (left button)
Changes the display in the order shown in fig. 1, and data is displayed on the sub-
display. *If held over 2 seconds, 24-hour clock appears.
Fig.1
• START/STOP Button (right button)
Starts and stops the measurement of trip distance and elapsed time. During opera-
AT
Reset
tion, speed scale symbol flashes. In Auto Function, this button is invalid.
T
• SET Button
This is for setting the wheel circumference and clock time, switching on/off Auto Func-
tion and to clear all present data and any irregularity. When pressed in stop state in
each mode, the following can be revised.
Fig.2
• In O mode -------------------------- Wheel circumference
• In mode ----------------------- 24-hour clock
• In T, D or A mode ---------------- On/off the Auto function
L
• AC Button (All Clear)
By pressing AC Button on the back, all data stored (O data, speed scale, wheel
circumference and clock time) is erased. All displays illuminate, then mile/h sym-
Fig.3
bol illuminates. This operation is to be executed after replacing battery or when ir-
regular display occurs due to static electricity, etc. Since all memories are erased, set
necessary data again according to "Main Unit Preparation".
Reset Operation: (Fig. 2)
Select any mode except O, then press MODE Button and START/STOP Button si-
Fig.4
multaneously. M, A, D and T will become zero. (When done in O, registered wheel
circumference will be displayed.)
MAIN UNIT PREPARATION
The following must be completed before operating.
(1) How to measure wheel circumference (L) of your bike (Fig. 3)
Fig.5
Put a mark on the tire tread and ride the bike one full wheel revolution. Mark the start
and the end of the revolution on the ground and then measure the distance between
the two marks. This is your actual circumference. Or, the "Selecting Values Cross
Reference Table" tells you an approximate circumference according to tire size.
(2) Setting Speed Scale (Fig. 4)
By pressing AC Button (All Clear Operation), all displays illuminate, and then mile/h
Fig.6
symbol illuminates (fig.4). Km/h and mile/h are alternately displayed with each press
of Start/Stop Button. Press Set Button to set desired speed scale; then the display will
Spoke
change as fig.5.
(3) Setting the wheel circumference (Fig. 5)
The wheel circumference of 2155mm (standard circumference for 27" wheel) is dis-
played. When using 2155mm without revision, press Set Button. Speed/Elapsed
Time T will be displayed and 2155mm is set. For revision, press Start/Stop Button to
magnet
increase the number and Mode Button to decrease. To increase/decrease rapidly,
Fig.7-1
hold down respective buttons. When the desired number appears, press Set Button;
Speed/Elapsed Time T will be displayed and the number is set.
magnet
(4) Resetting or changing the wheel circumference
Set main unit in O with MODE Button, and stop it with START/STOP Button. Press
SET Button. The stored number will flicker on the sub-display. Revise the number as
spoke
Fig.7-2
desired according to the instructions in (3).
Setting the clock time (Fig. 6)
sensor band-B
Press MODE Button over 2 seconds to select
Button. Then press SET Button, and minutes flash. Press START/STOP Button to
advance minutes by one. To advance rapidly, hold down the button. Set the time one
or two minutes ahead of the current time. Then press MODE Button, and hours will
flash. Use START/STOP Button the same way. Press SET Button to complete time
rubber pad
setting. *When you press the SET Button, the undisplayed seconds will turn to zero.
sensor band-A
For accuracy, set by the radio time signal.
Fig.8
MOUNTING TO BIKE
• Attach the magnet on the right spokes of front wheel as fig.7. The spokes must run
correctly through the inside the magnet as in fig.7.
rubber pad
• Attach the sensor with Sensor Bands-A -B to the right fork. Choose a band that fits
the fork diameter (S size for up to 24ø, L for oversize).
sensor band-A
1. Insert the band-B into the slit of the band-A , and put the rubber pad inside of the
sensor band-B
band-A (fig. 8). Adjust the length in order that the screw-fastening part of the
Parallel bands are parallel when mounted to the fork (fig. 9). *To pull out the band B from
Fig.9
band A , tug strongly.
front fork
2. Mount the adjusted bands to the fork along with the sensor , by temporarily
tightening the screw (fig. 10).
3. Align the magnet's center and the sensor's marking line (fig. 11), and make sure
of 2mm clearance between the magnet and sensor (fig. 12). Then tighten the
screw securely. Cut the excess of the band-B with a nipper or the like.
• Secure the wire with tape as fig. 13. Wind the wire round the outer cable and adjust
length. Loosen the wire in the area marked with the arrow so that the wire does not
hinder handlebar operation.
• Use either 1mm- or 2 mm-thick pads if necessary, according to handlebar diameter.
sensor
screw
Attach the bracket close to the handlebar stem (fig. 14).
Fig.10
• Slide main unit onto the bracket from front until it clicks into position. To remove,
pull it off forward while pushing down the lever . (fig. 15)
•Test
marking
Mount main unit. Lift the front wheel off the ground and spin it to check if the speed is
line
displayed. If not, adjust the position of magnet and sensor again.
magnet's
How to replace the battery
center
Turn main unit over, remove battery case cover with coin and insert a new lithium
battery properly (CR2032) with the (+) pole upward (fig.16), and close the cover se-
Fig.11
curely.
*After replacing battery, be sure to press AC Button and set necessary data again.
A. Main Display F. Mode Button
(Speed)
G. Start/Stop Button
B. Mode Symbol
H. Set Button
C. Speed Scale Symbol
I. AC Button
D. Auto Mode Symbol
J. Battery Case Cover
E. Sub-Display
K. Contacts
(Selected Function)
1. Bracket
2. Wire
3. Sensor
4. Sensor Bands-A (S)(L)
5. Sensor Bands-B
6. Magnet
7. Sensor Band Rubber Pad
8. Bracket Rubber Pad (2 pcs.)
9. Wire Securing Tape
10. Sensor Band Screw
, and stop it with START/STOP
magnet sensor
MEASURING AND DISPLAY FUNCTIONS
S
This is always displayed on the main display and updated once a
second.
D
O
This is continuously measured until battery wears down or all clear
about 2 mm
operation is done. At 10,000 miles(km), it returns to zero and count-
O
Fig.12
ing begins anew.
outer cable M
With Reset operation, it returns to zero and counting begins anew.
M
A
The average speed from start to current point is displayed within 27
hours 46 minutes 39 seconds (99,999 seconds) or 999.99 miles
(km). If either is exceeded, (.E) is displayed and calculation ceases.
A
D
The trip distance from start to current point is displayed. With Reset
wire securing
operation, it returns to zero.
wire tape
D
T
Fig.13
Elapsed time is measured from start to current point, in units of
hours, minutes and seconds. At 10 hours, it returns to zero and
bracket
T counting begins anew. With Reset operation, it returns to zero.
The current time is displayed by a 24-hour clock.
AUTO (AUTOMATIC START/STOP) FUNCTION
rubber pad
Fig.14
screw cap
This function switches the main unit to start or stop automatically, in
which
pressing START/STOP Button each time.
lever
slide • How to switch on/off the Auto Function.
T
In T, D or A, this function switches on/off with each press of SET
Button. When on,
front
Fig.15 ceases measuring elapsed time during a stop. *2 seconds may be
elapsed if mount the main unit to the bracket with this function on.
CLOSE
POWER SAVING FUNCTION
When main unit is left without receiving any signal for 60-70 minutes
CR2032
OPEN
continuously, power supply is shut down and main unit will display
(
Button, or by receiving signal, this function is released.
Fig.16
TROUBLE SHOOTING
• The following situations do not indicate malfunction of the cyclocomputer. Check the following before taking to repair.
* When current speed does not appear, short-circuit the contact on the back with metal. The unit will function
normally if the speed display appears.
Display response is slow.
------------- Is it at a low temperature under 32°F(0°C)?
------------- It returns to normal state when temperature rises.
No display.
------------- Has the Lithium Battery in the main unit worn out?
------------- Replace the Lithium Battery with a new one.
Incorrect data appear.
------------- Execute "All Clear" operation.
Current speed does not appear.
------------- Is there anything on the contact of the main unit or of the bracket?
------------- Wipe the contact clean.
------------- Is the distance between sensor and magnet too far?
------------- Are the marking line of the sensor and the center of magnet matched each other?
------------- Refer to "Sensor/Magnet Mounting" and re-adjust correctly.
------------- Is the wire broken?
------------- Replace the Bracket & Sensor part with a new one.
Transmission signal loss in damp or wet conditions.
------------- Water or condensation may collect between the bracket sensor and the computer causing an
interruption in the data transmission. Wipe the contacts with dry cloth. Contacts can also be treated
with a water repellent silicon jell from an automotive parts or hardware store. Do not use industrial
water repellent; it may damage the bracket.
When the START/STOP Button is pressed, the unit doesn't activate or stop.
------------- Is the unit in the Auto function?
------------- The START/STOP Button doesn't function in the Auto function.
MAINTENANCE/PRECAUTIONS
• Do not leave the main unit exposed to direct sunlight when the unit is not in use.
• Do not disassemble the main unit, sensor and magnet.
• Don't pay too much attention to your computer's functions while riding! Keep your eyes on the road and duly
consider to traffic safety.
• Check relative position of sensor and magnet periodically.
• For cleaning, use neutral detergent on soft cloth, and wipe off later with dry cloth. Do not apply paint thinner,
benzine, or alcohol, to avoid damages on the surface.
• If there is mud, sand or the like clogs between the button and the body, the movement of the button may be
disturbed. Softly wash away such objects with water.
Specifications
Applicable Cycle Sizes: 10mm - 2,999mm
Applicable Fork Diameter: 11ø - 36ø (S:11 - 26ø L:21 - 36ø)
Power Supply: Lithium Battery (CR2032 X 1)
Battery Life: Approx. 3 years (The life of the first factory-loaded battery may be shorter than this period.)
Dimension/Weight: 1-15/16" x 1-25/32" x 11/16" (49 x 45 x 17mm) 0.9 oz (25.5 g)
Current Speed 0.0(3.0) - 65.9 mile/h [±0.3 mile/h under 31 mile/h]
Total Distance (Odometer) 0.0 - 99,999 mile [±0.1 mile]
Maximum Speed 0.0(3.0) - 65.9 mile/h [±0.3 mile/h]
Average Speed 0.0 - 65.9 mile/h [±0.3 mile/h]
Trip Distance 0.00 - 999.99 mile [±0.01 mile]
Elapsed Time 0:00'00" - 9:59'59" [±0.003%]
24-hour clock time 0:00' - 23:59' [±0.003%]
AT symbol appears on the screen, and you are free from
AT symbol appears. *With this function, it
) only as the figure. By pressing MODE Button or START/STOP
The length of the wire: 70cm
* The specifications and design are subject to change without notice.
