GUIDE TO INSTALLATION AND USE

Cooking Hob

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTI1053W and is the answer not in the manual?

Questions and answers

Related Manuals for DeDietrich DTI1053W

Summary of Contents for DeDietrich DTI1053W

  • Page 1: Cooking Hob

    GUIDE TO INSTALLATION AND USE Cooking Hob...
  • Page 2 Dear valued customer, To discover a De Dietrich product is to experience the range of unique emotions which only high-value items can produce. The attraction is immediate, from the moment you set eyes on the product. The sheer quality of the design shines through thanks to the timeless style and outstanding finishes which make each appliance an elegant and refined little masterpiece in its own right, each in perfect harmony with the others.

  • Page 3: Table Of Contents

    CONTENTS 1 / INSTALLING YOUR APPLIANCE • Installation _________________________________________________________ • Connection _________________________________________________________ 2 / USING YOUR APPLIANCE • The induction principle _______________________________________________ • Description of your top _______________________________________________ • Using a cooking zone ________________________________________________ • Additional functions _________________________________________________ Preheating Function Boil Delayed cooking Independent timer Elapsed time...
  • Page 4 Child safety mechanism This appliance can be safely Children under 8 must be kept at a used by children 8 and up; people distance unless constantly super- with physical, sensory, or mental vised. disabilities; or individuals pre- Your hob features a child safety me- viously lacking the necessary ex- chanism which prevents its opera- perience and knowledge, if they...
  • Page 5 Untended cooking of food on Do not store cleaning supplies or a heating surface in the presence flammable substances in the cabi- of grease or oil may be dangerous net underneath your hob. and could start a fire. Never use a steam cleaner to clean Never try to extinguish a fire with your hob.

  • Page 6: Installation

    1 / INSTALLING YOUR APPLIANCE Air outlet Sortie d'air Air intake Entrée d'air l’ L’ Above a cabinet with a door or drawer • CHOOSING THE POSITION The distance between the edge of your appliance MIN 4 mm and the side and rear walls (or partitions) must be at least four centimetres (zone A).

  • Page 7: Installing Your Appliance

    1 / INSTALLING YOUR APPLIANCE Connection DTI1053X and DTI1053W • Hook-up of 220-240V These hobs must be connected to the mains using a socket in compliance with publication IEC 60083 or an all-pole circuit-breaker device Green/yellow in compliance with the installation rules in Blue force.
  • Page 8 1 / INSTALLING YOUR APPLIANCE Connection These hobs must be connected to the mains using a socket in compliance with publication IEC 60083 or an all-pole circuit-breaker device in compliance with the installation rules in force. When power is first supplied to your hob, or after an extended power cut, an indicator light will appear on the control panel.

  • Page 9: Using Your Appliance

    2 / USING YOUR APPLIANCE We have designed this cooking hob for use by private individuals in their homes. These cooking hobs are intended exclusively for cooking beverages and foodstuffs and do not contain any asbestos-based materials. This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental abilities, or persons lacking experience or awareness, unless using it with the help of a person reponsible for their safety, or under supervision and with prior instruction in its use.

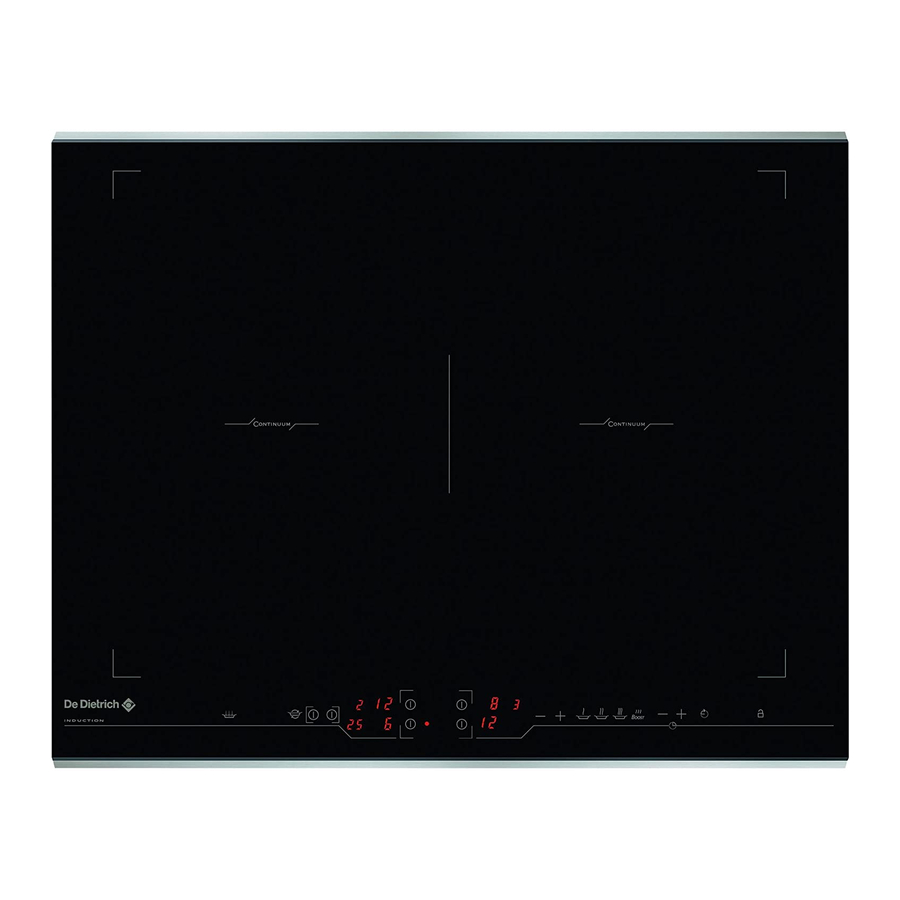

  • Page 10: Description Of Your Top

    2 / USING YOUR APPLIANCE Description of your top Total dimensions (L x l ) DTI1053X : 65 x 52 4600W DTI1053XE : 65 x 52 3600W DTI1053W : 65 x 52 4600W Recess cut-out (L’ x l’) DTI1053X : 56 X 49 4600W...

  • Page 11: Using A Cooking Zone

    2 / USING YOUR APPLIANCE Using a cooking zone N.B.: - The pre-heating time is calculated automati- Adjusting the power level: cally by your hob depending on the cooking - Place your cookware on the cooking zone power level chosen. and press the corresponding touchpad C or - When HU is displayed, if you do not adjust D.

  • Page 12: Delayed Cooking

    2 / USING YOUR APPLIANCE •Delayed cooking •Elapsed time This function allows you to delay your cooking This function displays the time elapsed since (available only for the rear right zone S TART the last power setting adjustment on a cho- zone).

  • Page 13: Preselected Power Settings

    2 / USING YOUR APPLIANCE •Switch •Child safety This functioin allows you to lock your hob when it is shut off or when it is cooking. This function lets you move a pan from one zone to another, keeping the original settings To lock: (power level and time).

  • Page 14: Safety Features When Operating

    2 / USING YOUR APPLIANCE As shown in this logo, the materials used to package this appliance are not recycla- ble. Recycle them and play a role in protecting the environment by depositing them in municipal containers provided for this purpose. Recycling of the appliances organised by your manufacturer will thus be undertaken in optimum conditions, in accordance with European directive 2002/96/CE relating to electrical and electronic equipment waste.

  • Page 15: Maintaining Your Appliance

    3 / MAINTAINING YOUR APPLIANCE Maintaining your appliance TYPES OF STAINS/SPOTS WHAT TO DO? Light. Cleaning sponges Thoroughly moisten the zone to be cleaned with hot water, then wipe off. Accumulation of baked-on Cleaning sponges Thoroughly moisten the zone to be stains/dirt.

  • Page 16: Special Messages, Difficulties

    4 / SPECIAL MESSAGES, DIFFICULTIES •On first use POSSIBLE CAUSES: WHAT SHOULD YOU DO? A special lamp appears. Working normally. Nothing, the light disappears after 30 seconds. Check that it is set up Your installation blows a fuse. The electrical connection of properly.

  • Page 17: After-Sales Service

    When making an appointment, state the full reference of your equipment (model, type and serial number). This information appears on the manufacturer's nameplate attached to your equipment. For UK after sales service information please contact:- www.dedietrich.co.uk De Dietrich UK office – tel: 01256 308000...
  • Page 18 STATEMENT OF STANDARD DE DIETRICH COOKING PRODUCT WARRANTY CONDITIONS WARRANTY The Warranty only applies provided that Subject to the “Statement of Standard appliance been used Warranty Conditions” this product is accordance with manufacturer’s covered by the following Warranty. instructions provided that appliance has not been damaged by an TWO (2) YEARS WARRANTY from...
