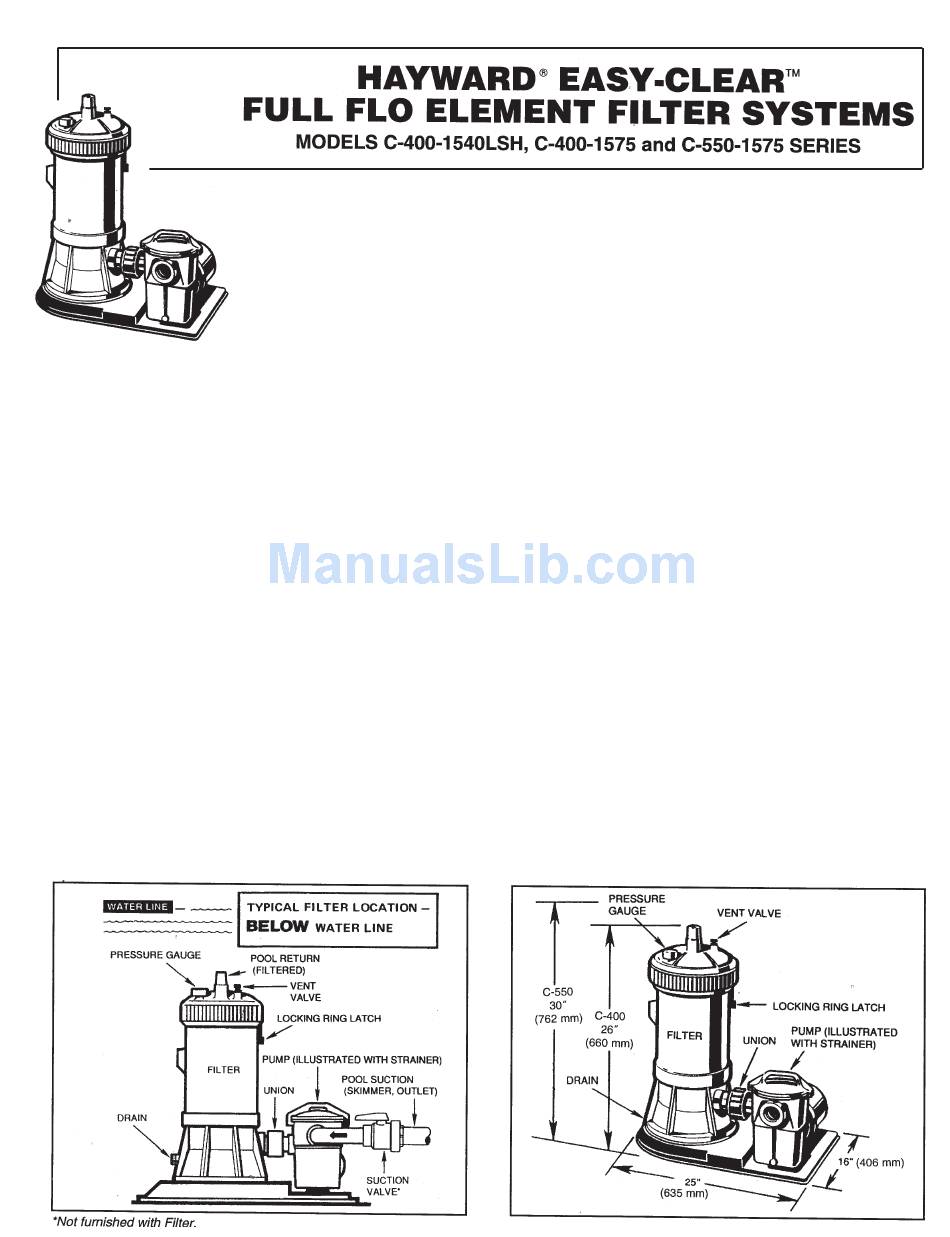

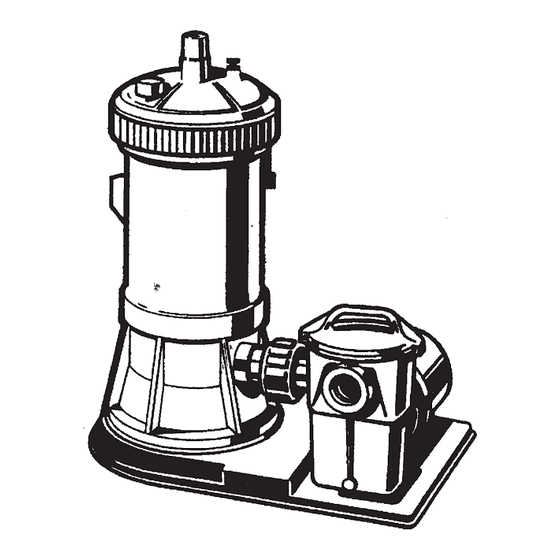

Hayward C-400-1540LSH Owner's Manual

SYSTEM LOCATION
Though the system is designed for outdoor use, it is
1.
advisable to protect electrical components from the
weather. Select a well-drained area, one that will not
flood when it rains.
For best pump performance, position the system below
2.
the swimming pool water line. If the system must be
located above the pool water line, it can be raised as
high as 2 feet (610 mm) above the water without
affecting the pump's efficiency.
NOTE: NSPI-4 Article V, standard for above-ground and
on-ground pools, advises that components such as the
filtration system, pumps and heater be positioned so as
to prevent their being used as a means of access to the
pool by young children.
Set the mounting platform level. Keep the cover lock,
3.
filter bump handle, drain outlet and pressure gauge
accessible for convenient operation.
OWNER'S GUIDE
Hayward's Easy-Clear filters are high performance above-ground swimming pool filters with a
filtration rating up to 4,200 gallons (16 Kl) per hour. Manufactured from durable, corrosion-proof
materials, Easy-Clear has been designed to provide years of trouble-free operation.
FEATURES
Easy-Lok ™ lid access design provides simple
•
entry to service the cartridge element.
Built-in check valve prevents accidental loss
•
of pool water when cartridge is being
removed for cleaning.
Unique safety latch prevents overtightening
•
of the cover and secures the filter from
unwanted entry.
Cartridge element is uniquely designed, by
•
Hayward,
polyester with a molded center core for easy
cleaning, high flow and long life.
• Union connection allows pump or filter to be
removed quickly and easily for servicing the
system and winterizing.
4. Position the system so the filter tank can be drained by
gravity.
PLUMBING INSTALLATION
1. Use 1-1/4" or 1-1/2" I.D. flexible plastic pipe, or hose,
joined with insert fittings and stainless steel clamps.
All plumbing connections on the system are 1-1/2"
2.
N.P.T. When making connections, use plastic male-end
adapters. Apply three turns of Teflon tape or plastic
pipe sealant to the male threads. Screw the fitting into
the threads hand tight; then, using a wrench, tighten
one more full turn. Additional tightening is unnecessary
and could result in damaged components.
Refer to the diagrams for suggested valving. Ball-type
3.
valves are recommened where needed.
