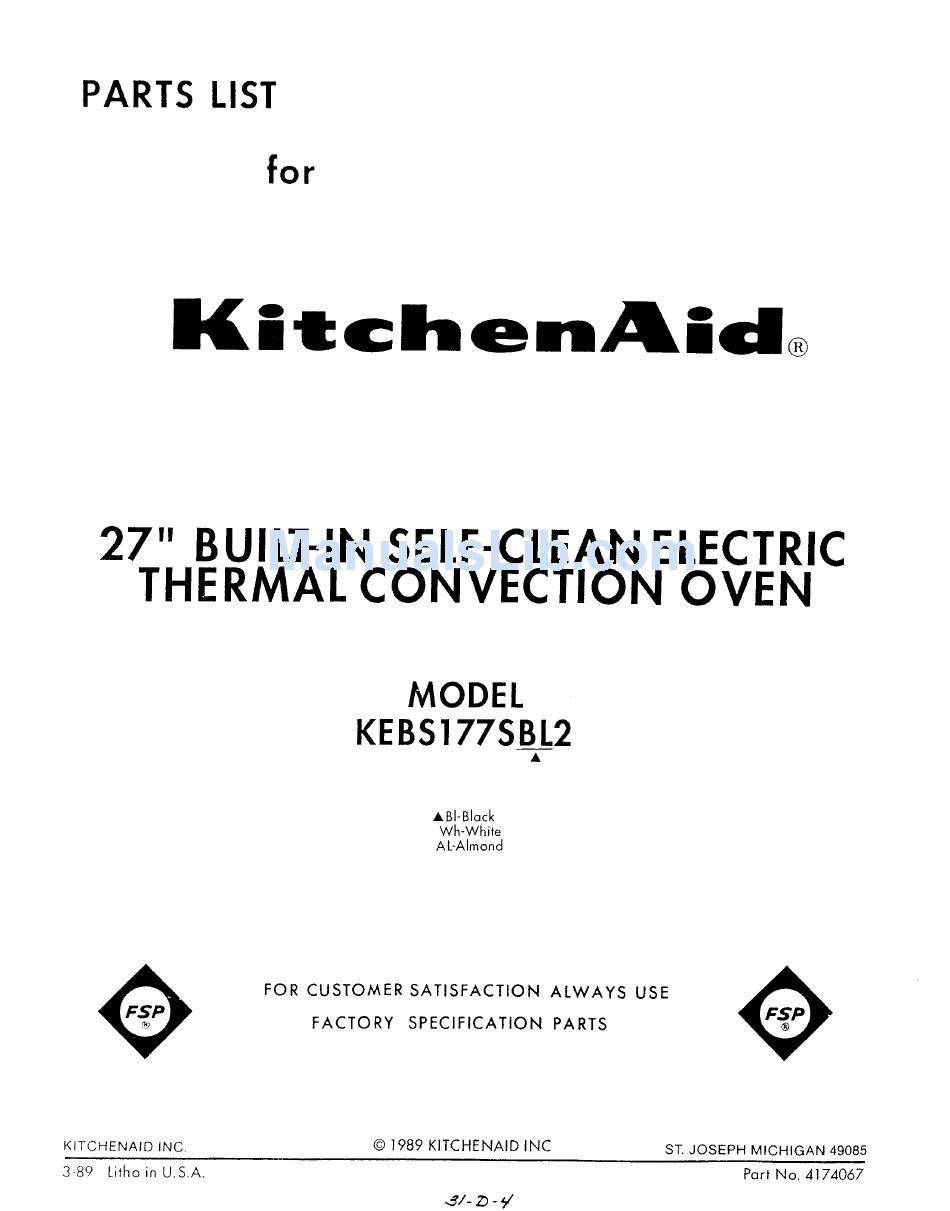

KitchenAid KEBS177SWH - 27 Inch Single Electric Wall Oven Parts List

27" built-in self cleaning electric thermal convection oven
Hide thumbs

Advertisement

Advertisement

Table of Contents
loading

  Related Manuals for KitchenAid KEBS177SWH - 27 Inch Single Electric Wall Oven

  Summary of Contents for KitchenAid KEBS177SWH - 27 Inch Single Electric Wall Oven

  • Page 3 4173159 Thermostat Disc 4173160 Selector Disc 4173071 Clock, Electronic 4173148 Mounting, Control Panel 4168597 Indicator Light 4164360 Nut, Washer Type (4) 3178514 Selector Switch 4164361 Thermostat, Self Clean 4173153 Meat Probe Indicator Assy. 4163869 Indicator Light (2) Lock - Clean 4173150 Housing, Back Light (2) 4168533...
  • Page 5 4167590 Retainer (2) 4163831 Bezel, Light Switch 4163840 Knob, Meat Probe Indicator 4168403 Knob, (2) Selector Switch, Thermostat 3177122 Knob, Clock 3177121 Knob (2) Clock Vent Insert 3178516 Black 3178980 Almond - White Control Frame 3178571 White 3178572 Almond 4164363 Black Insert, Top 4173436...
  • Page 7 4173054 Sandwich Panel 4173043 Bushing, Electrical 4168257 Hole Cover 313135 Control Panel, 4166561 Transformer, Probe 4163731 Relay, Meat Probe 4168295 Terminal Block, Power Supply 4167614 Conduit, 1/2 x 56 4173276 Cabinet Top 4173165 Flexible Bushing 4173166 Panel, Blower Mounting 4173004 Blower Assembly...
  • Page 9 4168063 Mounting Plate 4168538 Mechanism, Latch 3177965 Latch Lever 4168292 Solenoid Plate 4169323 Solenoid 4173007 Safety Switch Manual Reset 4173053 Screw (Rd. Hd) 4-40 x 1 1/4 4168560 Solenoid Spring 4159129 Cotter Pin 4168514 Latch Switch With Roller 4164366 Latch Switch 4159117 Locknut 4168517...
  • Page 11 3178512 Mounting Plate 4173193 Screws, Mounting 4173194 Lockwasher (3) 4173196 Nut (Left Hand) 4173236 4173198 Motor 4173238 E-Ring 4173185 Bracket Guard 4173230 Flatwasher...
  • Page 13 4173095 Liner, Oven 4163990 Bake Element 4168217 Support-Right Broiler Element 3178520 Broiler Element 4173173 Light Base 4173175 Bulb, Lamp 4173174 Lens, Light 4167277 Nut, Meat Probe 4167266 Cover, Probe Jack 4173438 Washer 4159113 Nut, Hex Jam 4173189 Meat Probe Jack, Lighted 4173275 Clip (2) Thermostat Bulb 4168218...
  • Page 15 Door Frame 4173432 White 4173433 Almond 4164391 Black 4164240 Door Handle 4173434 White 4173435 Almond 4173018 Black 4159330 Screw, (4) 8-32 x 3/8 Glass, Door 4173430 White 4173431 Almond 4164241 Black 4168826 Rubber Bumper (8) 4163857 Air Baffle 4169357 Retainer, Insulation 4163852 Bracket, Lock 4164235...
  • Page 17 4163966 Main Bottom 4164191 Insulation, Bottom 3178580 Door Gasket Hi-Temp 3177549 Cover, Seal End 4169310 Insulation, Top and Sides 4163821 Knob, Latch Lever 4164192 Insulation, Rear 4167526 Rear Anchor 4163823 Front Frame 4169336 Support, Control Frame 4169314 Compartment Top 4163941 Vent Box (2) 4168494 Vent Tube...
