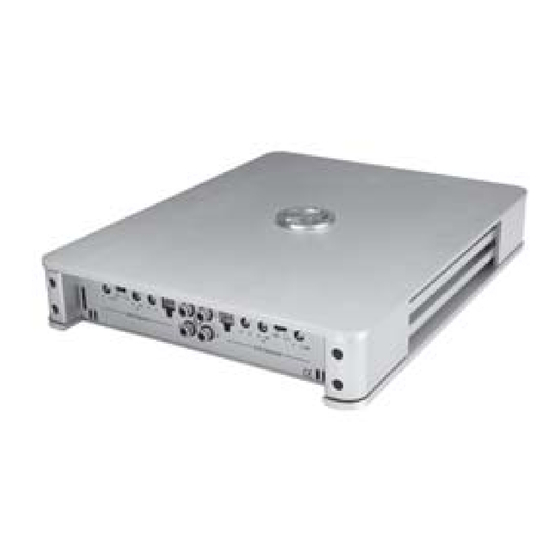

DLS X-program X-D40 Owner's Manual

How to install and operate the
X-program amplifiers
X-D10
X-D20
X-D25
X-D30
X-D40
Welcome!
This owners manual is written in easy english and
uses a lot of drawings to simply the installation and
use of the above amplifiers.
Your X-program amplifiers must be installed
correctly in order to work well. This manual will show
you how to install the amplifier like a pro. Please
read the entire manual before beginning the
installation.Install the amplifier yourself if you feel
confident with our instructions and if you have the
proper tools. However if you feel unsure, turn over
the installation job to someone better suited to it.
Warranty Service
This amplifier is covered by warranty, depending
on the conditions in the country where it is sold. If
the amplifier is returned for service, please include
the original dated receipt with the product.
Technical Assistance
For technical assistance ask the shop where the
product was sold or the distributor in your very coun-
try. Information can also be found on our WEB-site
www.xprogram.com
We follow a policy of continuous advancement in
development. For this reason all or part of
specifications & designs may be changed without
prior notice.
DECLARATION OF CONFORMITY
X-program amplifiers for vehicles are manufactured
in accordance with the EU directive EEC 95/54 (72/
245/EEC) and are marked with the approval number.
They are also marked in accordance with the WEEE-
directive 2002/96/EC.
The products are also produced in accordance with
the EU RoHS directive 2002/95/EC.
Contents
Features...................................
Installation................................
Tools and materials needed..........
Amplifier installation kit................
Routing Wires............................
Wiring
Power and Outputs.....................
Inputs and controls.....................
High and low level inputs...............
Input level control...........................
Bass boost,Crossovers, etc............
Crossovers / features on each model 7
X-D10 speaker wiring:
Subwoofer.................................
X-D20 / D25 speaker wiring:
Front speakers............................
Subwoofer.................................
X-D30 speaker wiring:
Two speakers and subwoofer..........
X-D40 speaker wiring:
Four speakers............................
Two speakers and bridged subwoofer 11
Connection of subwoofers...............
Testing......................................
Troubleshooting...........................
Professional tips..........................
Specifications.............................. 15
This product must be returned to the
separate collection system for electronic
products. Do not dispose this product
together with general household waste.
X-program is designed, engineered and distributed by:
DLS Svenska AB
P.O. Box 13029 - SE-40251 Göteborg - Sweden
Tel: +46 31 840060 - Fax: +46 31 844021
E-mail: info@dls.se
www.xprogram.com
X-program products are produced in Taiwan
2
2
3
3
3
4
5
5
6
6
8
9
9
10
11
12
13
13
14
