Owner's manual
VX402A
VZ402A

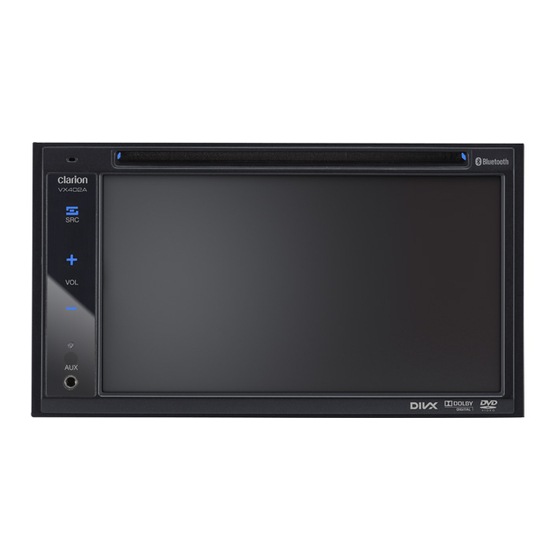

2-DIN DVD MULTIMEDIA STATION WITH 6.2-inch
TOUCH PANEL CONTROL
DVD MULTIMEDIA STATION WITH 7-inch
TOUCH PANEL CONTROL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VZ402A and is the answer not in the manual?

Questions and answers

Related Manuals for Clarion VZ402A

Summary of Contents for Clarion VZ402A

  • Page 1 Owner’s manual VX402A VZ402A 2-DIN DVD MULTIMEDIA STATION WITH 6.2-inch TOUCH PANEL CONTROL DVD MULTIMEDIA STATION WITH 7-inch TOUCH PANEL CONTROL...

  • Page 2: Table Of Contents

    GENERAL ........................... 40 DVD PLAYER ..........................40 USB DEVICE ..........................41 Bluetooth ............................. 41 TV/VTR (When connecting an optional TV tuner, etc.) ..............42 8. ERROR DISPLAY ..........................43 DVD PLAYER ..........................43 9. SPECIFICATIONS .........................43 10. WIRE CONNECTION GUIDE ......................45 VX402A/VZ402A...

  • Page 3: Features

    / iPhone with Album Art Expanding Systems Expanding visual features Rear monitor Rear Vision Camera Expanding audio features External Power Amplifier iPod Memory iPhone Bluetooth Telephone NOTE: The items listed outside the frames are the commercial products generally sold. VX402A/VZ402A...

  • Page 4: Precautions

    2. PRECAUTIONS WARNING • For your safety, the driver should not watch any video sources and/or operate the controls while driving. Please note that watching and operating any video sources while driving are prohibited by law in some countries. Also, while driving, keep the volume to a level at which external sounds can be heard. • Do not disassemble or modify this unit. It may cause an accident, fire, or electric shock. • Do not use this unit when a trouble exists, such as no screen content appears or no sound is audible. It may cause an accident, fire, or electric shock. For that case, consult your authorized dealer or a nearest Clarion service center. • In case of a problem, such as any material has been entered in the unit, the unit gets wet, or smoke or strange smells come out of the unit, etc., stop using this unit immediately, and consult your authorized dealer or a nearest Clarion service center. Using it in that condition may cause an accident, fire, or electric shock. • Use a fuse with the same specification only when replacing the fuse. Using a fuse with a different specification may causes a fire. • For the installation of this unit or a change in the installation, ask your authorized dealer or a nearest Clarion service center for safety. Professional skills and experiences are required to do so. VX402A/VZ402A...
  • Page 5 CD) or the optical parts of the player and proper playback may not be possible. If moisture forms on the disc (DVD/CD), wipe it off with a soft cloth. If moisture forms on the optical parts of the player, do not use the player for about one hour. The condensation will disappear naturally allowing normal operation. 2.Driving on extremely bumpy roads which cause severe vibration may cause the sound to skip. 3.This unit uses a precision mechanism. Even VZ402A in the event that trouble arises, never open the case, disassemble the unit, or lubricate the rotating parts. VX402A VX402A/VZ402A...

  • Page 6: Controls

    3. CONTROLS Operational Panel [SOURCE] [PWR] [VOL+] [VOL-] RESET SENSOR AUX IN [OPEN] AUX IN JACK SENSOR [VOL-] [POWER/SRC] RESET [VOL+] VX402A/VZ402A...

  • Page 7: Functions Of Buttons

    Functions of Buttons [Power/SRC] Button • Press this button to turn the unit power on. • Press this button to select a source. • Press and hold this button for more than 2 seconds to turn the power off. [VOL -], [VOL +] Buttons • Use these buttons to decrease/increase the volume. [OPEN] [CLOSE] Button (VZ402A) • Use this button to open/close operation panel. RESET Button • Press this button to reset the unit. SENSOR • Receiver for the remote control unit (operating range: 30 degree in all directions). • I nternal microphone for use during Bluetooth phone calls. Sensitivity can be adjusted from the Settings menu. VX402A/VZ402A...

  • Page 8: Remote Control

    1. P ress the retention tab and pull out the • D ispose of spent batteries properly. battery tray and remove the old battery. 2. I nsert the new CR2025 battery and slide the Note: battery tray back in the remote control the • T he wireless remote control operation may not same direction that you removed it. Please be optimal in direct sunlight. ensure the tray is inserted in the correct direction. Note: Using battery improperly can cause it to explode. Take note of the following points: • W hen replacing batteries, replace both batteries with new ones. • D o not short-circuit, disassemble or heat battery. VX402A/VZ402A...

  • Page 9: Functions Of Remote Control Buttons

    Functions of Remote Control Buttons You can use the remote control unit to control the VX402A and VZ402A. Note: • The wireless remote control operation may not be optimal in direct sunlight. ] Button in the TUNER mode. • P ress this button to play or pause video and • Press to select button items on the menu screen of a DVD video. audio media. • P ress this button more than 1 second to stop • Press[ ], [ ]to scroll through the pages...
  • Page 10 [AUDIO] Button Press to switch the AUDIO channel of the disc while playing DVD. [SUB-T] Button • Press to switch next available subtitle while playing DVD. • Press to display Video menu in iPod mode. [ANGLE] Button • Press to switch the different ANGLE while playing DVD. (No all DVD disc supports this function) • Press to display Audio menu in iPod mode. VX402A/VZ402A...

  • Page 11: Cautions On Handling

    When affected by static electricity or electric as “USB mass storage class” to work properly. noise. Some models may not operate correctly. Connect/disconnect the USB memory stick When the memorized data is lost or when it is not accessed. damaged by any chance, Clarion shall not • Some USB memory sticks cannot be inserted be liable for any damage. to the main unit because of their shape. In such When using an USB memory stick, we cases, use a commercial USB extension cable recommend that you backup your data stored to connect them.

  • Page 12: Handling Discs

    For your safety, the driver should not missoperation or damage. insert or eject a disc, opening the • To remove a disc from its storage case, operation panel while driving. press down on the center of the case and lift the disc out, holding it carefully by the edges. • Do not use commercially available disc protection sheets or discs equipped with stabilizers, etc. These may damage the disc or cause breakdown of the internal mechanism. VX402A/VZ402A...

  • Page 13: Dvd Video System

    • Some disc functions may operate differently from described in this manual. Multi-story function Multi-sound function When a DVD video contains more than one DVD video can store up to 8 languages for story for a film, you can select the story you one film; select the language of your wish to enjoy. The operation procedures preference. vary with the disc; observe the instruc- • The languages stored on the disc are tions for selecting a story provided during indicated by the icon shown below. playback. Menu screens Menu can be called up during DVD video playback to perform menu setting. Multi-angle function A DVD video that is filmed from multiple • Example showing menu display angles allows you to select the angle of choice. • The number of recorded angles are indicated by the icon shown below. VX402A/VZ402A...

  • Page 14: Discs

    “3”. Note: The DVD video region number is marked on the • When you play a CD Extra disc, only the first disc jacket as shown below. session will be recognized. About playing a CD-R/CD-RW disc (MP3, WMA) This player can play CD-R/CD-RW discs previously recorded in music CD format (MP3, WMA). Asia About playing a DVD-R/RW or DVD+R/RW disc This player cannot play DVD-R/RW and DVD+R/ RW discs previously recorded in video CD format. However, MP3/WMA files recorded on DVD-R/ RW and DVD+R/RW discs can be played. Discs that cannot be played back This DVD video player cannot play back DVD- VX402A/VZ402A...
  • Page 15 • The Bluetooth ® word mark and logos are owned by the Bluetooth SIG, Inc. And any use of such ® marks by Clarion Co.,Ltd. is under license. Other trademarks and trade names are those of their respective owners. VX402A/VZ402A...

  • Page 16: Operations

    Press [POWER/ Source] button on the panel to turn on the unit. 1- Display Tuner mode 10- Display BT mode 2- Display DVD/CD mode 11- Monitor Off 3- Eject Disc 12- Display USB/iPod mode 4- Display AUX IN mode 13- System time, touchto 5- Display current mode display clock mode. 6- Display AV IN mode 7- Display Settings 8- Audio Off 9- Display Camera mode VX402A/VZ402A...

  • Page 17: Dvd Player Operations

    Tuner Set rating for parental level control mode. Note: If y ou force a disc into before auto 1. Select Rating screen while in Settings mode. reloading, it may damage a disc. Press [Parental Control] button. VX402A/VZ402A...
  • Page 18 2. T o resume playback, press the [ ] key. Playback resumes from the scene where playback is stopped. Play/Pause Playback 1. T ouch the [ ] key to pause during playback. 2. T ouch the [ ] key again to resume playback. Playback starts from the scene of the input title Skip (Search) a Chapter number, time or chapter number. 1. T ouch the [ ] or [ ] key during playback. *If the input title/chapter/time number does not Chapters are skipped down or up from current exist or searching with a title/chapter number is locations, as many times as the key is pressed, not allowed, the screen image will not change. and playback starts. VX402A/VZ402A...
  • Page 19 Indicates that 8 or [Right] key to move the Key Pad panel to the kinds of 8 subtitles have been recorded). other side of the screen. * D epending on the disc, switching may be completely impossible or impossible on some scenes. 2. The DVD Player mode screen will hide in 3 seconds after your selection is made. 3. T o turn off subtitles, repeat touching the [Sub.T] key until subtitles are turned off. VX402A/VZ402A...
  • Page 20 Searching with the Track Number This operation allows searching using the track numbers recorded on the CD. 1. Touch the [List] key to display the Disc List screen. 2. Touch the [Key] key to display the numerical keypad. 3. I nput the track number that you want to play 12 13 back with numerical keypad. 4. Touch the [OK] key to confirm. • I f the input track number does not exist or searching with a track number is not al lowed, the unit will return to the List screen VX402A/VZ402A...
  • Page 21 2.4, 2.3, 1.1 and 1.0. PRO files, files with DRM, open session discs. In displaying, this unit gives priority to the Version • Logical format (File system) 2.3 and 2.4 TAGs. 1. W hen writing an MP3/WMA file on a disc, After USB device inserted into USB slot, or please select “ISO9660 level 1 or level disc is loaded, the play mode is automatically engaged. 2(without including expansion format)” as the writing software format. Normal playback may not be possible if the disc is recorded on another format. VX402A/VZ402A...
  • Page 22 • In case of a track recorded at VBR (variable bit acter will cause the file and folder names to be rate), the display for the play time of the track displayed incorrectly. may be slightly different from the actual play • Electronic Shock Protection time. Also, the recommended value of VBR 1 0 seconds for CD-DA (CDA) 45 seconds for ranges from 32 kbps to 320 kbps. MP3 recorded at 44.1 kHz, 128kbps 90 sec- • After disc selection, the play mode is onds for WMA recorded at 44.1 kHz, 128kbps automatically engaged. • Folder structure A disc with a folder having more than 8 hierarchical levels will conflict with the ISO9660 and playback will be impossible. VX402A/VZ402A...
  • Page 23 Root Folder Folder File Layers 1 Layers 1 Layers 3 Layers 4 Layers 6 The player will only recognize three folder levels and does not display folders containing other folders. In the example above, the unit will display folders 2, 3, 5, and 7, but not 1 and 6 since they do not contain others. VX402A/VZ402A...

  • Page 24: Usb Operations

    The operations in the USB Memory mode are For WMA files: “.WMA” or “.wma” same as those in the DVD mode. Please refer • Notes on the folder structure MP3/WMA /CD Playback. • The folder hierarchy must be within 8 hier archical levels. Otherwise, playback will be impossible. • The maximum allowable number of folders is 200 (including root directory and folders with no MP3/WMA file). • The maximum allowable number of files in a folder is 1500. • The maximum allowable number of files in all folders is 1500. • You can store the MP3 files, WMA files to gether in a folder. VX402A/VZ402A...

  • Page 25: Ipod Operations

    OFF. • Set the language setting of iPod/iPhone to English before connecting your iPod/iPhone. Some characters of the other languages may not be displayed correctly in this system. • Precautions on battery consumption: If the iPod/iPhone is connected to this unit when the internal battery of iPod/iPhone has run down, this function may not operate correctly. You must connect the iPod/iPhone after charging the battery if it has run down. VX402A/VZ402A...
  • Page 26 Simple Control screen [Video/Music] key • Touch this key to switch operation mode to the Touch the [Simple Control] key to display Video mode or Music mode. Simple Control Mode. [Previous Track] key • Touch this key to play the previous track. • Touch this key to play from beginning of current track (In play for 2 seconds) [Next Track] key • Touch this key to play the next track. [Audio Settings] key • Touch this key to switch to the Audio menu for setting the audio settings. VX402A/VZ402A...

  • Page 27: Ipod Operation

    (and the rear monitor if connected). Note: Do not connect the iPod/iPhone to this unit when a Video Playlists item is selected on the iPod/ iPhone. 1. Touch the [Video] key on the iPod audio mode menu screen. The iPod play video screen is displayed. 2. S elect the type of video you would like to play, by touching the menu. The video playback will start. Note: • Video playback is not available on all iPod/ iPhone devices. Please contact your Clarion dealer for details. An optional connection able or accessory may be required for this feature. VX402A/VZ402A...
  • Page 28 • Touch this key to repeat the play of the selected track. [Shuffle] key • No function in this mode. [Video/Music] key • Touch this key to switch operation mode to the Video mode or Music mode. [Folders] key • Touch this key to return to the main track search screen. [iPod Menu] ey • Touch this key to return to the previous menu. [Simple Control]key • Touch this key to display Simple Control Mode. [Page up] key • Touch this key to scroll up the track list. [Page down] key • Touch this key to scroll down the track list. VX402A/VZ402A...

  • Page 29: Bluetooth Mode

    Bluetooth audio player. Note: • This system will not operate or may operate improperly with some Bluetooth audio players. • For detailed information on the playable Bluetooth audio players, see our home page: www.clarion.com This unit has a Bluetooth indicator ( ) on the top of the screen. When the Bluetooth function is “OFF”, the indicator is grey. When the Bluetooth function is “ON” and the phone is not connected, the indicator will blink.
  • Page 30 ] or [ ]key during playback. Telephone Settings screen. Tracks are skipped, as many as the times the key is touched, and playback starts. Note: • Control functions such as play, pause and track skipping are not available on all devices. Stop Playback 1. T ouch the[ ] key during playback. Playback stops. 2. T o resume playback, touch the[ ] key. Play back resumes. 2. Perform setting for the desired item. See the [ON] following sections for detail. • Touch this key to connect the music. VX402A/VZ402A...
  • Page 31 Making a Call Using the Ten-Key Pad Object Push transfer. 1. Touch the [Keypad] key to display the Ten-Key • Some cellular phones may transfer Phone pad screen. Book data automatically. 2. E nter the telephone number by using the Ten- Key pad displayed on the screen. Making a Call Using the Phone Book 3. Touch the [Send] key to call the entered You can use the Phone Book data obtained from number. the cellular phone to make a call from this unit. • T he following Telephone Interrupt screen is displayed during phone call. VX402A/VZ402A...
  • Page 32 1. Touch the [Phone Function] key. The History List screen is displayed. 2. Select [Dialed Call], [Received Call] or [Missed Call] key to select your desired call log. • Touch the [ ] or [ ] key to scroll the list. • T ouch the [Phone Function] key to return to the previous screen. 3. T ouch the desired History item key you wish to dial. When the call is finished, touch the [End] key to hang up. VX402A/VZ402A...

  • Page 33: Radio Operation

    3. Touch the preset station (1 to 6) on tuner display. 4. T ouch [ ] or [ ] to select next station up or down the preset list. 5. Touch the [AS/PS] button to begin scanning the preset stations. Manual memory 1. T ouch the desired Band key to select the band VX402A/VZ402A...
  • Page 34 4. When the desired station is tuned in, touch the [PS] key again to continue receiving that station. LOC/DX Setting The DX / LOC setting changes the tuner sensitivity in order to separate closely spaced stations. This feature is useful in areas that have many radio stations in close proximity. 1. Touch the [ ] key to display the Preset List screen. 2. Touch the [DX] key to switch to DX tuner sensitivity. VX402A/VZ402A...

  • Page 35: Aux In/ Av In

    You cannot directly control external devices connected to AUX IN or AV IN input. Press [ ] button return to the Main Menu. Camera in Operations Switching to Camera mode Press [Camera] button on Main Menu to select desired mode. The LCD will display the external camera video. The screen will display “No Video Signal” menu, if a valid camera is not connect to this head unit. Press [ ] button return to the Main Menu. VX402A/VZ402A...

  • Page 36: Settings Operations

    TFT Auto Open. 1. Touch the [Audio] key to set: Bass Freq, Treble 2. T ouch the desired tab key and perform the Freq, and Bass Q-Factor. necessary adjustments. 2. T ouch the desired tab key to make the desired audio adjustments. • Touch Screen Calibration T his key is to activate the touch screen • Bass Freq activation mode, please consult technical S elect the desired bass center adjustment support before attempting this process. frequency: 60Hz, 80Hz, 100Hz, and 200Hz. • Brightness Set screen brightness value from 0 to 20. • Treble Freq S elect the desired treble center adjustment • TFT Angle (VZ402A) frequency: 10 KHz, 12.5KHz.15KHz, 17.5 KHz Adjust the TFT angle from 0 to 5. VX402A/VZ402A...
  • Page 37 12- D ivX Registration 13- D ivX Deactivation 14- Reset • Password Refer to Setting up the password for parental level control. • Parental control T ouch this key to set the age ratings Choose the desired rating:1. Kid Safe 2. G 3. PG 4. PG- 13 5. PG-R 6. R 7. NC-17 8. Adult. Others Setup Menu 1. Touch the key to set: Anti-theft code, Anti-theft, Bluetooth, Tel SP, Blinking, Beep, Reset, DivX VX402A/VZ402A...
  • Page 38 If you enter the wrong code for four times, the unit will be locked, and must be unlocked by the professionals. • Bluetooth T ouch this tab to turn On or Off the Bluetooth. • Tel SP T ouch this tab to set the output speaker for the Bluetooth feature. You may select the Left Front speaker or Right Front speaker. • Blinking T ouch this tab to turn the anti-theft blinking indicator On or Off. When the Blinking is On and the ACC power is off, the indicator blinks red. • Beep T ouch this key to turn On or Off the beep sound. VX402A/VZ402A...
  • Page 39 Settings Operations Monitor Off Touch Monitor Off button on main menu, it will show “Monitor off……Touch the screen to return” and then the head unit will turn off the TFT screen. Touch any place of the screen, the TFT screen will turn on again. Audio Off Touch Audio Off button on main menu to turn on/ off the audio of source . Clock mode Touch system time on main menu to show clock mode. VX402A/VZ402A...

  • Page 40: Troubleshooting

    Video images are not The parking brake is not Check that the parking brake is displayed. engaged. engaged. Disc cannot play with Feature exceeds set parental Release the view limitation or the display “PARENTAL level. change the parental level. VIOLATION” shown. See the subsection “Setting up the parental level” VX402A/VZ402A...

  • Page 41: Usb Device

    The Bluetooth function of the Refer to the user manual of the device is not enabled. device for how to enable the function. The audio quality is poor after The microphone is not correctly Use optional external connection with a Bluetooth positioned. microphone and adjust the enabled device. position of it. The Bluetooth reception is Move the device closer to the poor. car audio system or remove any obstacle between the device and the system. VX402A/VZ402A...

  • Page 42: Tv/Vtr (When Connecting An Optional Tv Tuner, Etc.)

    VTR. There are red, green, and blue -------------------- This is not a failure, but a points in display. phenomenon peculiar to a liquid crystal panel (The liquid crystal panel is produced according to technology with very high precision. Note that, though there are effective pixels of 99.99% or more, pixel missing or normally lit pixels account for 0.01%). VX402A/VZ402A...

  • Page 43: Error Display

    AM Tuner High : 300 mVrms Frequency Range: 531 kHz to 1,629 kHz Mid : 600 mVrms Usable Sensitivity: 28 dBµV Low : 1.3 Vrms DVD Player System Audio/Video output Digital Versatile Disc System with CDDA, Video Video output voltage: 1.0Vp-p @75 CD capable Usable discs: DVD video disc, Compact disc Frequency Response: 20 Hz to 20 kHz VX402A/VZ402A...

  • Page 44: Mp3 Mode

    LCD Monitor VX402A dimensions: VX402A Screen Size: 6.2” wide type 178 mm 100 mm Pixels: 1,152,000 Resolution: 800 x 480 x 3 (RGB) VZ402A Screen Size: 7” wide type Pixels: 1,152,000 Resolution: 800 x 480 x 3 (RGB) Bluetooth Specification: Bluetooth Ver 2.1+EDR Profile: HFP(Hands Free Profile) VX402A weight: 2.4 kg...

  • Page 45: Wire Connection Guide

    10. WIRE CONNECTION GUIDE Note: • Before installing, be sure to disconnect the negative cable of the car battery. • In the optional devices, the RCA cables and the Connector cables are separately-sold items. VX402A Refer to page 47 VX402A/VZ402A...
  • Page 46 VZ402A Refer to page 47 VX402A/VZ402A...
  • Page 47 Front left + White Bla Front left- Green Rear left+ Green Blac Rear left- Blue White Amplifier tur n on cord Orange White Illuminatio n Blue Auto antenna Brown Phone interrupt Grass- green Parking brake cord Purple Whit Reverse gear cord VX402A/VZ402A...
  • Page 48 Clarion Co., Ltd. All Rights Reserved. Copyright © 2012: Clarion Co., Ltd. VX402A/VZ402A...
