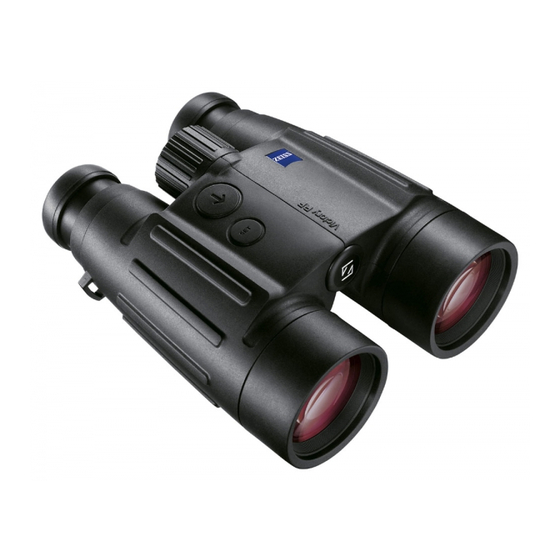

Zeiss Victory 10x56T*RF Instructions For Use Manual
  1. Manuals
  2. Brands
  3. Zeiss Manuals
  4. Binoculars
  5. Victory 10x56T*RF
  6. Instructions for use manual

Zeiss Victory 10x56T*RF Instructions For Use Manual

Carl zeiss victory rf binoculars instructions for use
Hide thumbs
Table of Contents

Advertisement

Quick Links

Carl Zeiss
Sports Optics
Victory
8 x 45 T* RF / 10 x 45 T* RF
8 x 56 T* RF / 10 x 56 T* RF
Gebrauchshinweise
Instructions for use
Mode d'emploi
Istruzioni d'impiego
Mode de empleo
Bruksanvisning
Informacje dotyczące użytkowania
Инструкция по применению
Használati utasítás
We make it visible.
Bezeichnung der Bauteile / Part description

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Victory 10x56T*RF and is the answer not in the manual?

Questions and answers

Related Manuals for Zeiss Victory 10x56T*RF

Summary of Contents for Zeiss Victory 10x56T*RF

  • Page 1 Carl Zeiss Sports Optics Victory 8 x 45 T* RF / 10 x 45 T* RF 8 x 56 T* RF / 10 x 56 T* RF Gebrauchshinweise Instructions for use Mode d’emploi Istruzioni d‘impiego Mode de empleo Bruksanvisning Informacje dotyczące użytkowania Инструкция...
  • Page 3 Bezeichnung der Bauteile / Part description Fig. 1 Fig. 2 Fig. 3 Fig. 4...
  • Page 4 Congratulations on the purchase of your new binoculars with integrated laser range finder. Carl Zeiss brand products are characterised by outstanding optical perform- ance, accurate processing and long durability. Please observe the following instructions for use, so that you enjoy optimum use of your product and it can be a faithful companion to you for many years.
  • Page 5 Victory RF Caution Use only battery types recommended by the manufacturer. Handle used batteries in accordance with the manufacturer’s instructions. Under no circumstances should batteries be thrown into a fire, heated up, recharged, taken apart or broken open. User information for the disposal of electrical and electronic equipment (private households) This symbol on products and/or accompanying documents indicates that used electrical and electronic products are not to be mixed with ordinary...

  • Page 6: Table Of Contents

    Instructions for use Table of contents Identification of the components ....... . 18 Scope of delivery .

  • Page 7: Scope Of Delivery

    Victory RF Scope of delivery Binoculars with laser range finder Eyepiece cap 2 protective lens covers Carry case Carrying strap 3V type CR 2 lithium battery Optics cleaning cloth Instructions, guarantee card Preparation Inserting/Removing the battery The laser range finder is powered by a type CR 2 lithium battery. To insert and replace the battery, unscrew the battery cover (Fig.

  • Page 8: Attaching The Carrying Strap And The Protective Caps

    Instructions for use Attaching the carrying strap and the protective caps The carrying strap and the eyepiece cap are attached as shown in the illustrations. Note: Feed the carrying strap only once through the eyelet on the eyepiece cap. Depending on personal taste, use the carry- ing strap to connect the eyepiece cap either on both sides or on one side only.

  • Page 9: Observation With And Without Glasses

    Victory RF Observation with and without glasses When observing without glasses, use the equipment with the eye cup extended. To do this, turn the eye cup (Fig. 1/1) upwards and to the left (anticlockwise) until it locks in the highest position (illustration A). The eye cup can be locked in four positions –...

  • Page 10: Focusing The Aiming Mark And Diopter Compensation

    Instructions for use Focusing the aiming mark and diopter compensation Use the RANGE FINDER button (Fig. 1/6) to switch on the aiming mark (Fig. 4/9) and hold down the button. Focus the aiming mark and the display (Fig. 4/10) by turning the right hand diopter compensation (Fig. 1/4) to the left or the right.

  • Page 11: Scan Mode

    Victory RF Scan mode The equipment can also be used to measure in constant operation (scan mode). If the range finder button (Fig. 1/6) is pressed for longer than approx. 3 seconds, the equipment switches to scan mode and takes measurements continuously.

  • Page 12: Selection Of The Appropriate Ballistic Programme

    Instructions for use The correction value for the aiming point is displayed approx. 1 second after the range. A preceding “H” means that higher aiming is required (Fig. 3) and a preceding “L” means that lower aiming is required. The display is given in centimetres for the EU settings and in inches for the US settings.

  • Page 13: Determining The Correct Trajectory Path

    Victory RF Example: Example: Program EU 2 is selected: Programm EU 2 is selected: Bullet drop according Bullet drop according to ballistic curve 2, to ballistic curve 2, range display in metres, range display in metres, holding point display in centimetres, holding point display in centimetres, target shot range 100 metres.
  • Page 14 Instructions for use Further information and assistance on this topic can be found on our website http://www.zeiss.de/sportsoptics First select the appropriate table for you, depending on the riflescope target shot range: Target shot range Table to be used 100 metres Table 1 SID/GEE (corresponds to approx.
  • Page 15 Victory RF Table 2: Selection of the trajectory path for range specifications in metres and a sighting in at SID/GEE. Curve Range selection in metres EU 1 0.3 – 7.1 – 19.2 – 36.5 – 59.3 – 126 EU 2 –...

  • Page 16: Care And Maintenance

    Instructions for use Care and maintenance The laser range finder requires no special care. Do not wipe off coarse dust (e.g. sand) from the lens, but rather blow it off or remove it using a fine animal-hair brush. Fingerprints may affect the lens surfaces after a time. The easiest way to clean lens surfaces is to breathe on them and rub them using a clean optic-cleaning cloth.

  • Page 17: Technical Specifications

    Victory RF Technical specifications Victory Victory Victory Victory 8x45T*RF 10x45T*RF 8x56T*RF 10x56T*RF Magnification Lens diameter 45 mm 45 mm 56 mm 56 mm Exit pupil diameter 5.6 mm 4.5 mm 7 mm 5.6 mm Twilight number 21.2 21.2 23.7 Field of view at 1000 m/yd 125 m/yd 110 m/yd 115 m/yd 110 m/yd Close-up limit approx.
  • Page 18 Consult the dealer or an experienced radio/ TV technician for help. Carl Zeiss Sports Optics GmbH is not responsible for any radio or television interference caused by unauthorized modifications of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by Carl Zeiss Sports Optics GmbH.
  • Page 19 “This product may be covered by one or more of the following United States patents: US6542302, US6816310, US6906862” Carl Zeiss Sports Optics GmbH Carl Zeiss Group Gloelstrasse 3 – 5 D-35576 Wetzlar www.zeiss.de/sportsoptics We make it visible.
