Service Manual for L1 and L2

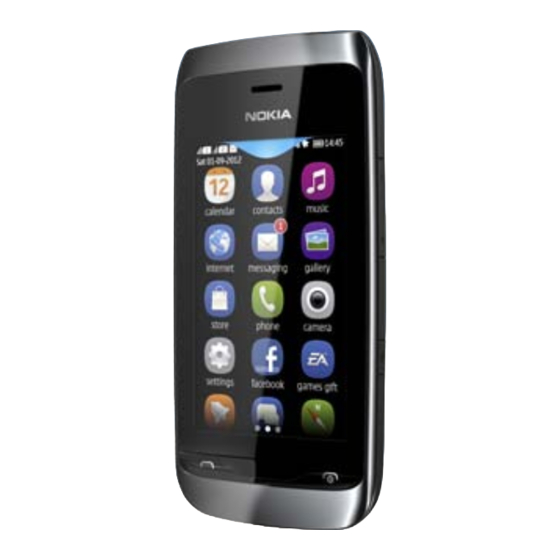

Nokia Asha 308 (RM-838 / RM-852) Dual-SIM
Nokia Asha 309 (RM-843 / RM-844) Single-SIM
Nokia Asha 310 (In China, Nokia Asha 3100)
(RM-911) Dual-SIM Wi-Fi
Key features
S40 operating system with Full Touch UI
Dual SIM (Nokia Asha 308, Nokia Asha 310, Nokia 3100)
Wi-Fi (Nokia Asha 309, Nokia Asha 310, Nokia 3100)
Capacitive touch screen
EA Games Gift (40 free games)
Version 2.0
Exploded view
Service devices
Solder components
Disassembly steps
More
Product controls and interfaces
More
More
©2013 Nokia | Nokia Internal Use only | All Rights Reserved.
Check the repair
policy before
performing any
mechanical repair
on Service Level
1&2!
Assembly hints
More
Service concept
More
More
More
Advertisement
Table of Contents
Related Manuals for Nokia Asha 310 RM-911
Summarization of Contents
Exploded View of Components
Front Cover Assembly
Front cover assembly including earpiece and UI frame.
Light Swap Package
Package containing light swap components, domesheet, and shielding lids.
Rear Cover Assembly
Rear cover assembly including AV/DC jacks, SIM door, and screws.
Antenna Module Assembly
Antenna module assembly with speaker, SD card door, and screws.
Assembly Hints and Torque Specifications
Torque Specification for Torx Size 5 Screws
Tighten the four Torx+ size 5 screws to the torque of 14 Ncm in the order shown.
Torque Specification for Torx Size 4 Screws
Tighten the four Torx+ size 4 screws to the torque of 16 Ncm in the order shown.
Service Devices and Tools
CA-101 Service Cable
CA-101 Service cable for connecting the device.
AC-16 Travel Charger
AC-16 Travel charger for powering the device.
SS-276 Camera Removal Tool
SS-276 Camera removal tool.
Nokia Standard Toolkit (v2)
Nokia Standard Toolkit (v2) for device repair and maintenance.
Product Controls and Interfaces Overview
Connectors
Ports for charging, data, and audio/video connection.
User Interface Elements
Touch screen and physical buttons for user interaction.
Audio Components
Components for audio input and output.
Camera and Slots
Camera lens and slots for SIM and memory cards.
Service Concept: Flashing
Flashing Process Description
Describes the process and equipment used for flashing the device software.
Solder Components Identification
Top Side Components
Identification of components on the top side of the main board.
Bottom Side Components
Identification of components on the bottom side of the main board.
