Honeywell MS5145 - 11 User Manual

Introduction

Product Overview

TM

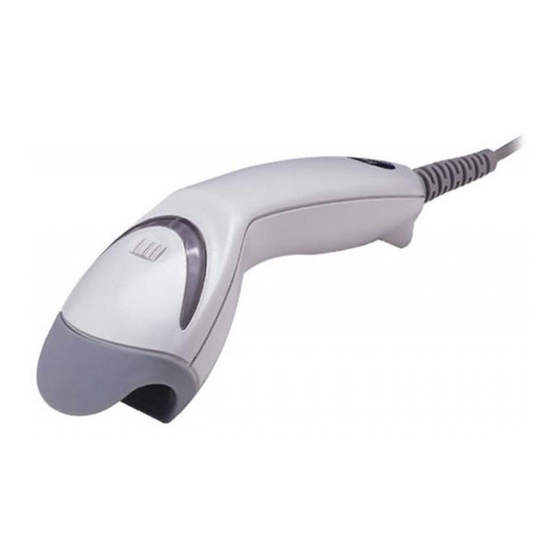

The MS5145 Eclipse is a single-line, hand-held laser scanner.
Equipped with Honeywell's patented CodeGate® technology,
Eclipse can be used in a wide variety of applications. CodeGate
technology allows the user toeasily target the desired bar code
and complete the data transmission with a simple press of a
button. This combination makes Eclipse a perfect selection for
menu scanning, point-of-sale, document processing and inventory
control.
With state-of-the-art scanning technology embedded inside, the
MS5145 Eclipse has a longer working range and a wider scan field
than a typical CCD. The width of the scan line grows as the
scanner moves further away from bar codes. In addition, the laser
beam pulses, making lining up bar codes easy and when the
scanner senses a bar code (CodeSense® Mode), the laser beam
automatically switches to scan mode and activates CodeGate to
ensure high-speed scanning and accuracy.
Many standard features are included such as: user configurable
Flash ROM, PowerLink user-replaceable cables, MetroSet®2 and
MetroSelect® configuration, and data editing (parsing).
Model Number
MS5145 – 00 Laser Emulation
MS5145 – 11 RS485 , RS232-TXD, RXD, RTS, CTS
MS5145 – 14 RS232 - TXD, RXD, RTS, CTS, DTR, DSR
TTL RS232 Low Speed USB,
MS5145 – 38
Keyboard Emulation or Serial Emulation*
MS5145 – 40 Full Speed USB
MS5145 – 41 RS232/Light Pen Emulation
Keyboard Wedge, Stand Alone Keyboard and TTL RS232
MS5145 – 47
Transmit/Receive
*
Configurable for Keyboard Emulation Mode or Serial Emulation Mode. The default
setting is Keyboard Emulation Mode.
A pplicable for IBM® Host applications. Applicable for IBM® Host applications.
◈
