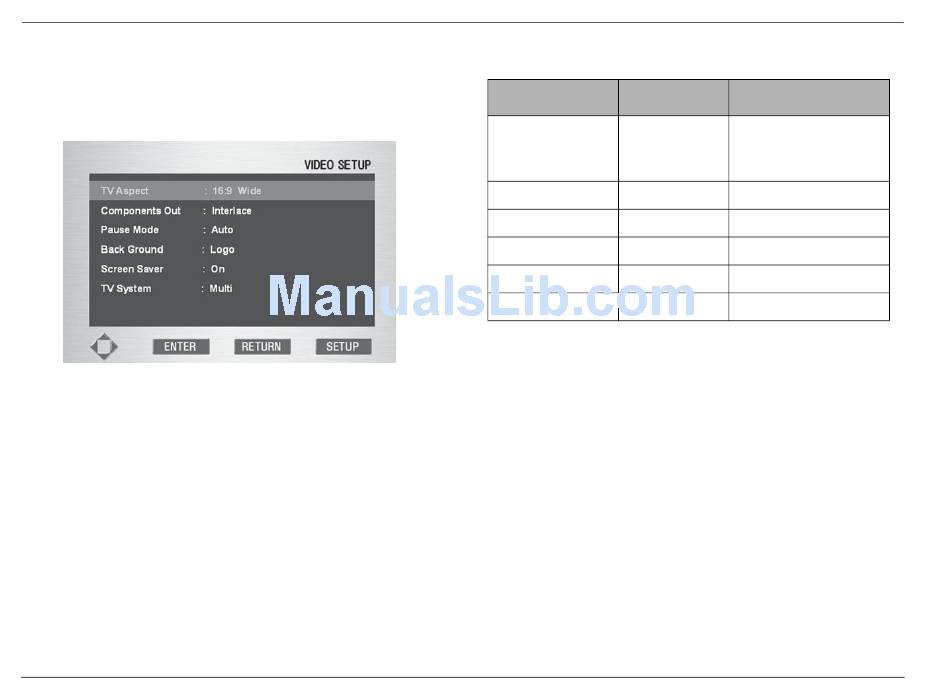

SETUP MENU: VIDEO SETUP

Use the Video Setup parameters to control video output options.
3-18
VIDEO SETUP Parameter Table
Parameter Default
TV Aspect 16:9 (Wide)
Component Out Interlaced
Pause Mode Auto
Back Ground Logo
Screen Saver On
TV System Multi
TV ASPECT
Controls the appearance of the picture on the associated display
device screen, formatting the aspect ratio of the video output format
to match the aspect ratio of the display device. Aspect ratios refer
to the shape of the screen as defined by the screen's width relative
to its height. Aspect ratios differ among video output formats and
display devices. A 16:9 (16 units wide by 9 units high) aspect ratio
is almost twice as wide as it is tall. A 4:3 (4 units wide by 3 units
high) aspect ratio is slightly wider than it is tall.
Select 16:9 Wide or 16:9 Squeeze if the associated display device
screen has a 16:9 aspect ratio. Select Standard 4:3 Letter Box or 4:3
Pan Scan if the associated display device screen has a 4:3 aspect
ratio. The appearance of the picture depends on the TV Aspect
Lexicon
Possible settings
4:3 Letter Box
4:3 Pan Scan
16:9 Wide
16:9 Squeeze
Interlaced, Progressive
Auto, Field, Frame
Logo, Capture
On, Off
Multi, PAL, NTSC
