Lexicon PCM 91 Quick Reference Manual

Halls:
P0 0.0
Basic Operation
The PCM 91 has 5 basic modes of operation, selected by pressing: Program Banks, Register Banks, Edit, Control or Tempo
Program Banks
and Register Banks
Press Program Banks to
cycle through 9 banks of 50
presets. Press Register
Banks to access 2 internal
banks of 50 registers (or
PCMCIA card banks) where
you can store your versions
of the factory presets.
Turn SELECT to view all of
the effects. A in front of an
effect name indicates that
the effect is not loaded. Hold
down either Banks button to
see the name of the currently
running effect.
Press Load/ to load any
displayed effect. ADJUST
acts as a soft knob for ad-
justment of one or more
patched effect parameters.
Simultaneously press and re-
lease both Banks buttons to
view the previously loaded
effect. Turn SELECT to view
as many as 10 effects back.
Effect Sorting
The PCM 91 lets you per-
form KeyWord sorting of
your effects. (The default
KeyWord A to Z displays all
of the effects in the box in
alphabetical order.)
Tempo
Any PCM 91 delay param-
eter and any time-based
modulator can be individu-
ally assigned an absolute
time or tempo value.
Note: You can set and display delay values in units of time, or
with tempo values. Whenever a delay value is displayed in Edit
mode, press Up and Tempo simultaneously to toggle these two
options.
Orchestral
Deep Blue

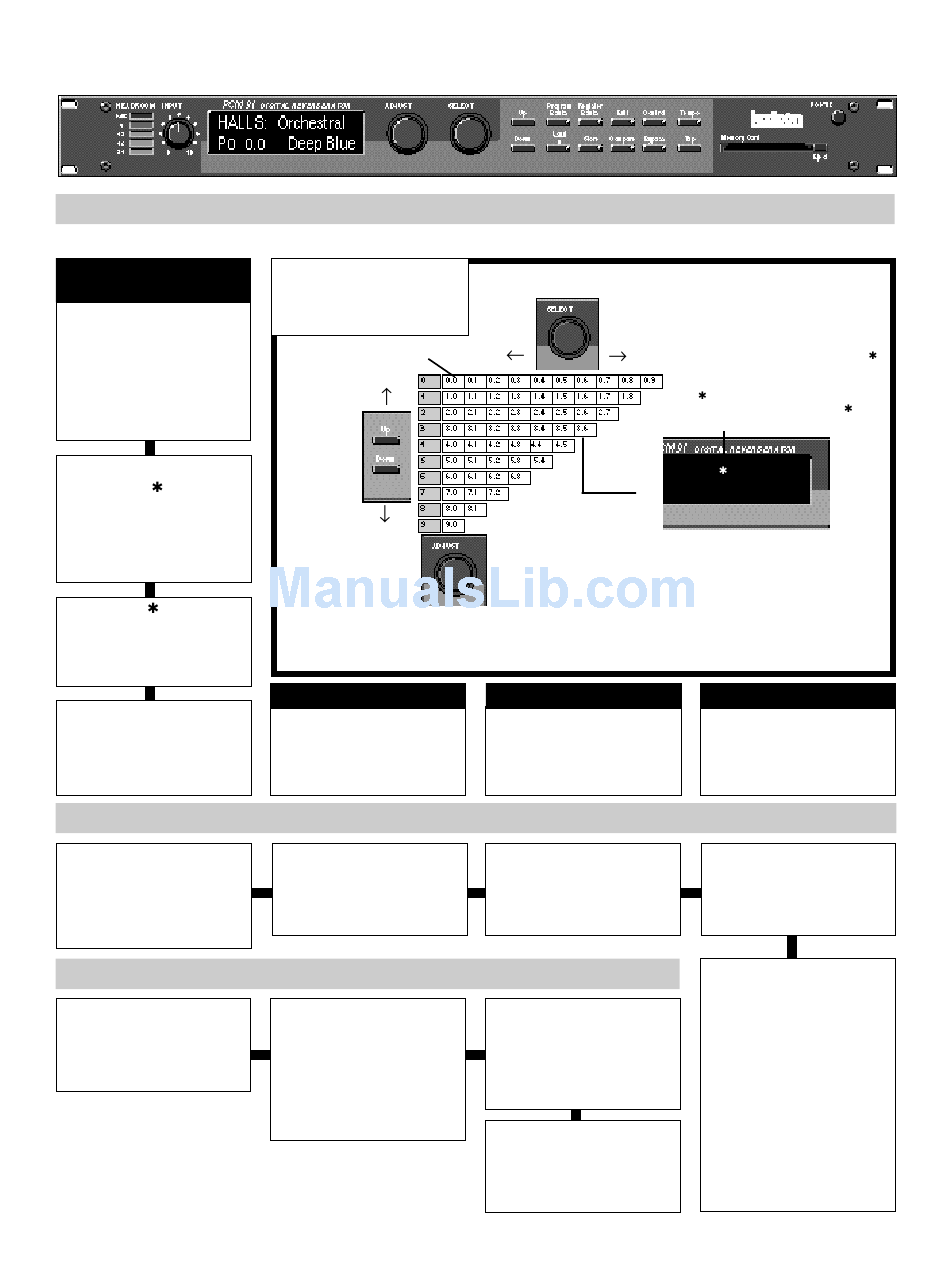

Each set of PCM 91 controls
is organized into a matrix of
as many as 10 rows and 10
columns.
Simultaneously press Up
and Down to return to 0.0.
Up and Down
move you
vertically
through the
rows of the
matrix.
In Edit, Control or Tempo mode, ADJUST scrolls
through the range of available settings for the displayed
control . In Program Banks and Register Banks mode,
ADJUST is patched to one or more effect parameters.
Edit
Press Edit to access all
available parameters for the
currently running effect. Turn
ADJUST to alter the value of
any displayed parameter.
As many as 4 KeyWords
can be assigned in Edit
mode to each effect. (We've
already assigned at least
one to every preset.)
You can set delay times in
milliseconds, or in a ratio of
echoes/beats linked to
tempo. When you change
tempo, the delay times will
change to maintain the
same rhythm at the new
tempo.
PCM 91 Quick Reference Guide
SELECT moves you
horizontally across the matrix.
Your current matrix location is shown in the lower
left of the display. A P, an R or a C preceding the
number indicates you are in a Program, Register
or Card Bank. If there is no number shown here,
you are in Go mode. (See Edit.)
Control
Press Control to access sys-
tem parameters, MIDI con-
trols, and global control of
parameters such as Mix,
Tempo, and Bypass type.
Press either Banks button
one push beyond the last
bank to view the list of sorted
effects. Turn SELECT to
scroll through the list.
To set PCM 91 tempo rate,
press Tempo. Use SELECT
and Up and Down to locate
matrix position 0.0. Turn AD-
JUST to select any Tempo
Rate from 40-400 BPM.
Or, press Tap twice in
rhythm to establish the
tempo rate you want. Tap is
always active, allowing you
to change tempo on the fly.
In Edit, Control or Tempo mode, a
indicates the presence of multiple param-
eters within a single matrix location. Press
Load/ to cycle through all of the param-
eters; simultaneously press Load/
either Up or Down to backstep.
XXXXXXX XXXXXXXXX
3.6 XXXXXXXXXXXXXXXXX
In Program and Register modes,descriptive
bank and row labels appear on the top line of
the display — these can be customized for
your own effects in Control mode.
Tempo
Press Tempo to set tempo-
related values that affect the
delay time and LFO rate pa-
rameters of the currently
running effect.
To select a
KeyWord for sorting, go to
Control 1.8. and use AD-
JUST to select any KeyWord
from the following list.
PCM 91 KeyWords
A to Z Gated
Acoustic Guitar
Indoor
Ambience
Ballad Instrument
Bright Keyboard
Broadcast Large
Cascade Live PA
Chamber Long
Classical Mastering
Cncrt Hall Medium
MIDI
Custom
Mono
Dark
Dialog Natural
Drums/Perc Orchestral
Dynamic Outdoor
Echo Plate
Film-ADR RandomHall
Lexicon Part No. 070-12663
with
different
Room
Short
Slap FX
Small
Spatial
Special FX
Splits
Stereo
Surround
Tempo
Unnatural
Vocal
User 1
User 2
User 3
User 4
