OWNER'S SERVICE MANUAL
MODEL:

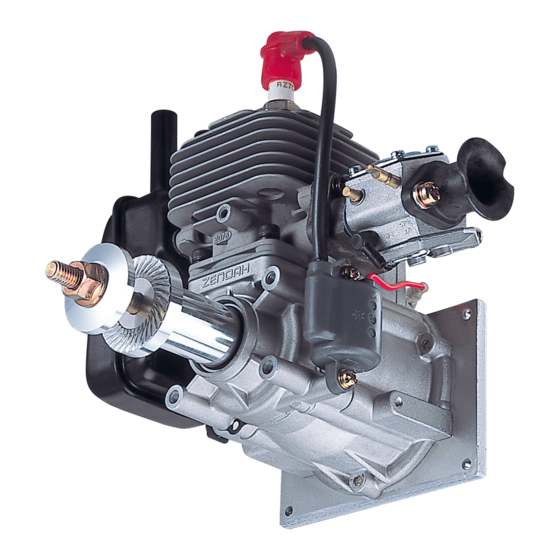

G231PUM – for radio control Boat
G231PUH – for radio control Helicopter
G260PU
G260PUM – for radio control Boat
G260PUH – for radio control Helicopter
G290PUM – for radio control Boat
[G260PU]
[G231PUM]
[G260PUM]
[G290PUM]
[G231PUH]
[G260PUH]
– for radio control Airplane
115 50 57-26 (206)
WARNING
• These engines are designed
for radio controlled
products.
• When replacing parts, use
only parts which have been
certified by Zenoah.
• Zenoah assumes that no
responsibility for these
engines that are modified or
used for any other
applications.
• Purchaser has all
responsibilities against any
laws and regulations
existing in the country,
Zenoah is exempt from
such laws and regulations.
• Read and completely
understand this OWNER'S
SERVICE MANUAL before
operating these engines.
