PC/Mac USB File Transfer Adapter
DX-C114200
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DX-C114200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dynex DX-C114200

Summary of Contents for Dynex DX-C114200

  • Page 1 PC/Mac USB File Transfer Adapter DX-C114200 USER GUIDE...

  • Page 3: Table Of Contents

    Dynex DX-C114200 PC/Mac USB File Transfer Adapter Contents Important safety instructions ..........3 Introduction...............4 Features................5 Package Contents...............5 System Requirements............5 LED status ................6 Installing and using the adapter........7 Specifications..............22 Legal notices..............23 One-year limited warranty ..........25 Important safety instructions Always read the safety instructions carefully: •...

  • Page 4: Introduction

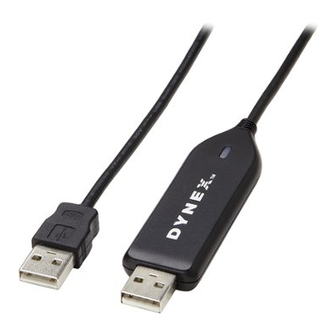

    Introduction This PC/Mac USB File Transfer Adapter is a premier file and data sharing solution for PC and MAC users. The Dynex Link utility software is already embedded on the adapter and will automatically load onto your system. Transfer e-mail, music, photos, videos, and document files from one computer to another, at speeds up to 480 Mbps.

  • Page 5: Features

    • Two easy steps of operation - simply connect and transfer. • No file size or media capacity limitations such as those found with external media cards. • Dynex Link software program loads automatically. Package Contents • PC/Mac USB file transfer adapter System Requirements •...

  • Page 6: Led Status

    LED status Description color status Green USB ports are connected to hosts. Flashing fast Data is being transferred.

  • Page 7: Installing And Using The Adapter

    Installing and using the adapter To install and use on Windows 2000, Windows XP, Windows Vista, and Windows 7 (PC-to-PC): 1 Plug one end of the USB adapter into your local PC and the other end into your remote PC. The following work area opens, showing the local and remote computers.
  • Page 8 If you are using Windows Vista or Windows 7, when the message box opens, click Run Dynex Transfer Adapter.exe to start.
  • Page 9 2 To transfer files, click and drag the files from one side to the other side. When the file appears on the other side, it is available for use. Note: If you close the program, or the program fails to autorun, you can start it from My Computer by double-clicking Dynex Link.
  • Page 10 Under Windows XP/2000...
  • Page 11 Under Windows Vista or Windows 7...
  • Page 12 To install and use from Windows 2000, Windows XP, Windows Vista, or Windows 7 to Mac (PC-to- Mac): 1 Plug one end of the USB adapter into your local PC and the other end into your Mac. The following User Interface screen opens for your PC, showing the local PC and remote MAC.
  • Page 13 If you are using Windows Vista or Windows 7, when the message box opens, click Run Dynex Transfer Adapter to start.
  • Page 14 The following work area opens, showing the local PC and remote MAC on your PC. 2 Double-click Dynex Link on your Mac desktop.
  • Page 15 3 When the pop-up window opens, double-click Dynex Transfer Adapter.
  • Page 16 4 The following work areas open in your local Mac, showing the remote PC computer. Mac side...
  • Page 17 5 To transfer files on the PC side, click and drag the files from one side to the other. When the file appears on the your PC or your Mac, it is available for use. PC side OR -...
  • Page 18 PC side you can start it from My Computer by double-clicking Dynex Link, then repeat the above steps in "Under PC Interface. " On the Mac side, double-click Dynex Link on the desktop and repeat the above steps in "Under Mac Interface.”...
  • Page 19 To install and use from Mac OS X v10.4 or later (Mac-to-Mac): 1 Double-click the Dynex Link on your Mac desktop. 2 When the pop-up window opens, double-click Dynex Transfer Adapter.
  • Page 20 3 The following work areas open, showing the local and remote Mac computers.
  • Page 21 When the file appears on the local or remote side, it is available for use on that Mac. Notes: If you close the program or the program fails to autorun, double-click Dynex Link on the desktop and repeat the above steps in "Under Mac Interface.”...

  • Page 22: Specifications

    Specifications Item Description Power mode USB bus power - 5 V Host interface USB 2.0 Standard interface Standard - USB 1.1/2.0 supports and I/O requirement Interface - USB Type A female Maximum line rate Over 12 MB/s, up to 20 MB/s Operating system Windows 2000/Windows XP/Windows Vista/ support...

  • Page 23: Legal Notices

    Legal notices FCC Part 15 This device complies with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 24 Notices Specifications and features are subject to change without notice or obligation. For service and support call (800) 305-2204.

  • Page 25: One-Year Limited Warranty

    (2) replace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Dynex and are not returned to you. If service of products and parts are required after the Warranty Period expires, you must pay all labor and parts charges.

  • Page 26: How To Obtain Warranty Service

    To obtain in-home warranty service for a television with a screen 25 inches or larger, call 1-888-BESTBUY. Call agents will diagnose and correct the issue over the phone or will have an Dynex-approved repair person dispatched to your home. Where is the warranty valid? This warranty is valid only to the original purchaser of the Product in the United States, Canada, and Mexico.
  • Page 27 • Products where the factory applied serial number has been altered or removed REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY. DYNEX SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS.
  • Page 28 7601 Penn Avenue South, Richfield, Minnesota, U.S.A. 55423-3645 © 2011 BBY Solutions, Inc. All rights reserved. DYNEX is a trademark of BBY Solutions, Inc. Registered in some countries. All other products and brand names are trademarks of their respective owners.
  • Page 29 7601 Penn Ave. South, Richfield, MN 55423 U.S.A. © 2011 BBY Solutions, Inc. All rights reserved. DYNEX is a trademark of BBY Solutions, Inc. Registered in some countries. All other products and 11-0231 brand names are trademarks of their respective ENGLISH owners.
