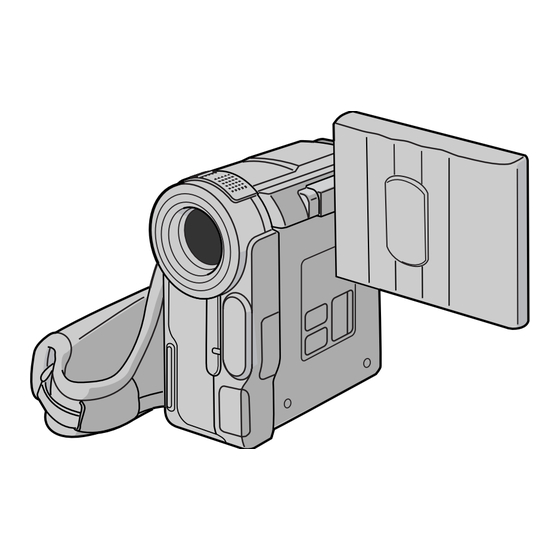

JVC GR-DX25EK Service Manual

SERVICE MANUAL
GR-DX25E , GR-DX25E
X
GR-DX35E
X
Regarding service information other than these sections, refer to the service manual No. 86740 (GR-DX75EX).
Also, be sure to note important safety precautions provided in the service manual.
SPECIFICATIONS
Camcorder
General
Power supply : DC 11.0 V (Using AC Adapter)
DC 7.2 V (Using battery pack)
Power consumption
LCD monitor off,
viewfinder on : Approx. 3.4 W
LCD monitor on,
viewfinder off : Approx. 4.6 W
Dimensions
(W x H x D) : 55 mm x 102 mm x 96 mm
(with the LCD monitor closed and
the viewfinder pushed back in)
Weight : Approx. 440 g (without grip belt)
Operating
temperature : 0°C to 40°C
Operating
humidity : 35% to 80%
Storage
temperature : –20°C to 50°C
Pickup : 1/6" CCD
Lens : F1.6, f =2.7 mm to 43.2 mm,
16:1 power zoom lens
Filter diameter : ø30.5 mm
LCD monitor : 3" diagonally measured, LCD
panel/TFT active matrix system
(GR-DX55/DX45)
2.5" diagonally measured, LCD
panel/TFT active matrix system
(GR-DX35/DX25)
Viewfinder : Electronic viewfinder with 0.24"
black/white LCD
Speaker : Monaural

DIGITAL VIDEO CAMERA

Y
, GR-DX35E
(The specifications shown pertain specifically to the model GR-DX25EK, GR-DX35EK, GR-DX45EK and GR-DX55EK.)
Digital Video Camera
Format : DV format (SD mode)
Signal format : PAL standard
Recording/
Playback format : Video: Digital component recording
: Audio: PCM digital recording,
Cassette : Mini DV cassette
Tape speed : SP : 18.8 mm/s
Maximum
recording time : SP : 80 min.
(using 80 min.
cassette)
Specifications shown are for SP mode unless otherwise indicated. E & O.E. Design and specifications subject
to change without notice.
COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LTD
, GR-DX25E
, GR-DX35E
Y
Connectors
S/AV
32 kHz 4-channel (12-bit),
48 kHz 2-channel (16-bit)
LP : 12.5 mm/s
LP : 120 min.
DV
USB
* GR-DX55/DX35 only.
Power requirement : AC 110 V to 240 V`, 50 Hz/60 Hz
Output
, GR-DX25EK,
Z
, GR-DX35EK
Z
S-Video output : Y : 1 V (p-p), 75 Ω, analogue
C : 0.29 V (p-p), 75 Ω, analogue
: Y : 0.8 V (p-p) – 1.2 V (p-p), 75 Ω,
S-Video input*
analogue
C : 0.2 V (p-p) – 0.4 V (p-p), 75 Ω,
analogue
: 1 V (p-p), 75 Ω, analogue
Video output
: 0.8 V (p-p) – 1.2 V (p-p), 75 Ω,
Video input*
analogue
Audio output : 300 mV (rms), 1 kΩ, analogue,
stereo
Audio input* : 300 mV (rms), 50 kΩ, analogue,
stereo
Edit : ø3.5 mm, 2-pole
Output : 4-pin, IEEE 1394 compliant
Input* : 4-pin, IEEE 1394 compliant
: 5-pin
AC Adapter
: DC 11 V , 1 A
GR-DX25EK M3D324
GR-DX25EX M3D324
GR-DX25EY M3D324
GR-DX25EZ M3D324
GR-DX35EK M3D325
GR-DX35EX M3D325
GR-DX35EY M3D325
GR-DX35EZ M3D325
No.86735
2003/06
