Summary of Contents for SmartLabs SML-292 HD Premium

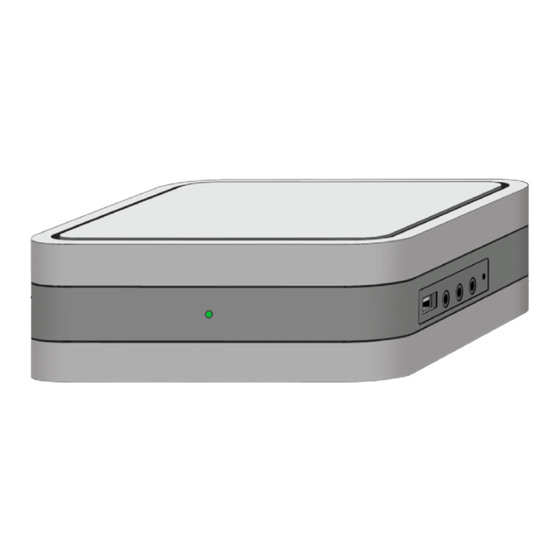

- Page 1 User Guide IPTV Set-Top Box SML-272 SD SML-282 HD Base SML-292 HD Premium...
-
Page 2: Table Of Contents
Contents CONTENTS..................2 INTRODUCTION.................3 Thank You for Choosing SmartLabs IPTV STB......3 Serial Number and MAC Address of STB........3 Using This Guide................3 Usage Conditions................3 Чистка....................5 Cleaning..................5 Servicing..................5 USING IPTV STB................7 Packaging..................7 Connecting to Devices..............8 Indicators and Slots..............10 Starting the IPTV STB..............13 Using the Remote Control............13 Remote Control Buttons Specification..........16... -
Page 3: Introduction
(IPTV) set-top box (STB). This guide contains the information about the following models of IPTV STB: SML-272 SD, SML-282 HD Base, SML-292 HD Premium. Note that particular features of your device are optional. Your device may differ from the device shown in pictures in this guide. - Page 4 2. Use the IPTV STB only with the power adapter supplied with your device. Make sure that the power supply standard approved in your country is compatible with the power supply standard used in the power adapter (See the Technical Specification section, Power Adapter). If the power adapter is not compatible with the power supply standard used in your country, contact the service provider.
-
Page 5: Чистка
Cleaning • Turn off the device before cleaning. • Wipe the device with a clean, dry rag only. • Clean the ventilation holes in the device’s enclosure regularly. • To remove stains from the device’s surface, it is possible to use a slightly damp rag. - Page 6 Remote IR receiver Vertical position (on the wall) 4. If your IPTV STB is equipped with an IR receiver, you should place the device’s front side towards the user. Note. To control the device placed out of the direct visibility range with the IR remote control, use the external IR receiver (if the device has the appro- priate slot).
-
Page 7: Using Iptv Stb
9. To avoid damage of the power adapter’s cable, place the cable so that it is not pressed, pinched or mechanically affected in another way. Using IPTV STB Packaging Name SML-272 SD SML-282 HD Base SML-292 HD Premium IPTV STB Power supply 12V 1.2A 12V 2.0A... -
Page 8: Connecting To Devices
Connecting to Devices Connect your IPTV STB to a TV set, speakers (if any) and the Internet accord- ing to one of the following schemes: To a TV set or AV To an Internet Power supply receiver router (220 V) The connection scheme via HDMI Power supply To an Internet router... - Page 9 You can also connect additional devices to your IPTV STB: • Microphone Note. The list of compatible microphones is available on the IPTV STB manu- facturer’s web site: www.smartlabs.tv/iptvstb • 2.5’’ SATA internal HDD – SML-292 HD premium only •...
-
Page 10: Indicators And Slots
Indicators and Slots Back Panel Number Slot Purpose Ethernet port 10/100 Mbit/s for the connection to a network device (the service provider’s equipment or Internet router). Optical audio output to audio receiver or speakers of the PCM or Dolby Digital 5.1 digital audio format. S/PDIF It is possible to switch the output mode from the application’s menu, if your service provider provides... -
Page 11: Side Panel
Side Panel Number Slot Purpose USB 2.0 port for the connection to external devices. 2 и 3 Mini-jack 3.5 mm slot for the microphone connection. Mini-jack 3.5 mm slot for the external IR receiver con- Ext-IR (Optional) nection. The button inside restores the default settings in the RESET device defined by the manufacturer. -
Page 12: Bottom Panel
Number Elements Purpose Green – IPTV STB is switched on and works normally. Power indicator Red – IPTV STB is in the stand-by mode. The internal IR receiver’s window accepting signals from the IR remote control (RC). This window should be in the direct visibility IR receiver’s window range from the IR RC, if an external IR re- ceiver is not used. -
Page 13: Starting The Iptv Stb
Starting the IPTV STB When you switch on IPTV STB for the first time, the device will start down- loading the latest version of software. During the update the special service message and progress bar are displayed on the TV set’s screen. The soft- ware update process can take a few minutes. - Page 14 Installation of Batteries to the Remote Control Two batteries of the AAA type are used in IR and RF Remote Control. Put the batteries into Remote Control like it is shown in the picture: • Remove the cover from the batteries’ compartment. •...
- Page 15 Connecting External IR Receiver for Remote Control If your device is supplied with the RF Remote Control, you do not need an exter- nal IR receiver. If your device has a slot to plug in an external IR receiver, you can connect it to IPTV STB and use this receiver in the direct visibility range instead of using internal IR receiver of the device.
-
Page 16: Remote Control Buttons Specification
Remote Control Buttons Specification RF Remote Control IR Remote Control Namber IR/RF Remote Control Button Purpose Switches the IPTV STB on or turns the (Turn on/stand-by) device into the stand-by mode. Disables/Enables sound. (Mute) Numeric buttons Enter numbers, letters, symbols. At the time of watching TV channels switches the translation to the previous viewed channel. - Page 17 Namber IR/RF Remote Control Button Purpose Search Opens the search window. Returns to the main menu from any posi- Home tion. Opens the TV channels menu. Opens the video on demand menu. Menu Opens the menu. ▼▲◄► (Arrow buttons) Move through menu items, select and confirm options.
-
Page 18: Installation Of The Hard Disk (Hdd)
HDD model list from the device manufacturer, which is available on the web site: www.smartlabs.tv/iptvstbdfg The IPTB STB’s manufacturer does not recommend you to use HDD with more than 5400 rev/min speed, because IPTV STB’s enclosure will overheat. If you... - Page 19 Switch off the device and disconnect it from the wall outlet. Turn the device upside-down. To prevent scratching the glance sur- faces, put it on a fabric laying. Remove the HDD cover by pressing 2 locks at the same time. Attention! To install 12 mm disk, carefully cut off the lug at the internal side of the HDD cover.
-
Page 20: Installation Of The Flash Drive (Usb Flash)
For more information on how to use a Flash drive in IPTV STB, see the docu- mentation obtained from your service provider. Technical Characteristics SML-282 HD SML-292 HD Options SML-272 SD Base Premium Basic parameters HDD SATA 2.5” connection possibility... - Page 21 SML-282 HD SML-292 HD Options SML-272 SD Base Premium RF receiver IR/RF IR/RF IR/RF Frequency : RF433 MHz Device dimensions (L*W*H), mm 150*150*55 Package dimensions (L*W*H), mm 290*230*80 Inputs and Outputs USB 2.0 at the back panel А type, 5V 500mA USB 2.0 at the side panel...
- Page 22 SML-282 HD SML-292 HD Options SML-272 SD Base Premium External IR receiver Optional Optional Optional Slot: mini-jack 3.5 mm Video MPEG-2 ISO/IEC 13818 Supported video formats MPEG-4 AVC H.264/H.263 HDMI output – up to 1080p Maximum supported definition YPbPr/RGB output – up to 1080i CVBS output –...
-
Page 23: Licenses And Certificates
Subject to terms of this agreement, SmartLabs LLC and your service provider jointly grant you a non-exclusive, non-transferable license, without the right... -
Page 24: Standards And Certificates
2. Connect the equipment using another scheme. 3. Consult with your service provider. Conformity IPTV STB is complied with TU 6582-001-83102005-2010 and has the appropriate ROHS certificate. Electrical Safety Device: SML-272 SD, SML-282 HD Base, SML-292 HD Premium Electrical Safety Class: III... -
Page 25: Warranty
3. Information on the manufacturer Company: SmartLabs LLC Address: 127521, Moscow, 72 Oktyabrskaya street, telephone: (495)645-44-56 Contact information: www.smartlabs.tv, support@smartlabs.tv Assembling factory: Sichuan Changhong Network Technologies Co., LTD Assembling factory’s address: 35 East Mianxing Road, High-Tech Park, Mianyang, Sichuan, China...
