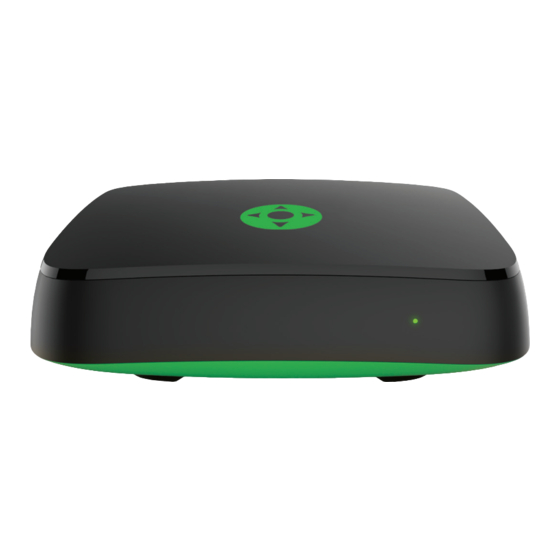

- Page 1 SML- 5041W User manual...
-
Page 2: Distribution Kit
This manual contains a description of all possible features and options of SML-5041W, however your device may look slightly different from the one pictured in this document. - Page 3 When using the STB with a plasma TV, do not put picture on pause for more than 5 minutes, due to plasma TV screen design it could lead to display damage. The STB manufacturer is not responsible for any damage caused in such manner.
- Page 4 FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 5: Indicators And Slots
Indicators and slots Front panel Element Purpose Power Green — STB is switched on and operates normally. indicator Red — STB is in the stand-by mode. IR receiver The internal IR receiver is accepting signals from the IR remote control. Back panel Element Purpose... -
Page 6: Installation
HDMI The audio/video interface for connecting with an HDMI-compliant device Ethernet port, 10/100 Mbps USB 2.0 port Connecting Power Router adapter Installation 1.Remove your STB from packaging. 2.Make sure that the place, where you are installing the STB, meets the following requirements: ... -
Page 7: Connecting To The Internet Via Wi-Fi
4.Connect the Ethernet cable to the STB. If you a going to use the Wi-Fi connection skip this step. 5.Connect the STB and the TV set to the power network. Connecting to the Internet via Wi-Fi 1. Turn on the STB and wait for it to boot. 2. -
Page 8: Troubleshooting
Troubleshooting Problem Possible reason Solution No picture 1.TV is not turned on 1.Turn on your TV The screen 1.STB is not connected to 1.Connect STB to the mains supply. displays "No the mains supply. 2.Turn STB on by using its remote signal"... -
Page 9: Specifications
Specifications Model No.: SML-5041W Dimensions: 110 x 107 x 33 mm, 130g Power supply: Input: AC 100-240V, 50/60Hz Output: DC 12V, 1.2A Ports and interfaces:* The digital audio/video interface HDMI 2.0 with HDCP 2.2 and HDR support The CVBS video interface + analog stereo audio interface (TRRS mini-jack) Optical digital audio interface S/PDIF... - Page 10 Wi-Fi module: Standard IEEE 802.11n\ac, MIMO 2x2 Operating frequency 2.4GHz band: 2412~2472 MHz 5GHz band: 5150~5250 MHz & 5725- 5850 MHz (depends on country) BT module: Standard BT v4.1 + BLE Operating frequency 2402–2480 MHz Max. resolution supported on HDMI: 4Kx2K@60 Supported CVBS standards: PAL, NTSC Supported video and audio codecs: to get information about actually supported codecs, please contact the service provider.
- Page 11 About the manufacturers Smartlabs Holding Ltd Manufacturer: Manufacturer address: Nafpliou 15, Limassol, Cyprus, 3025.
