- Page 1 SML-5112W User Guide ©2016 SmartLabs LLC...
-
Page 2: Distribution Kit

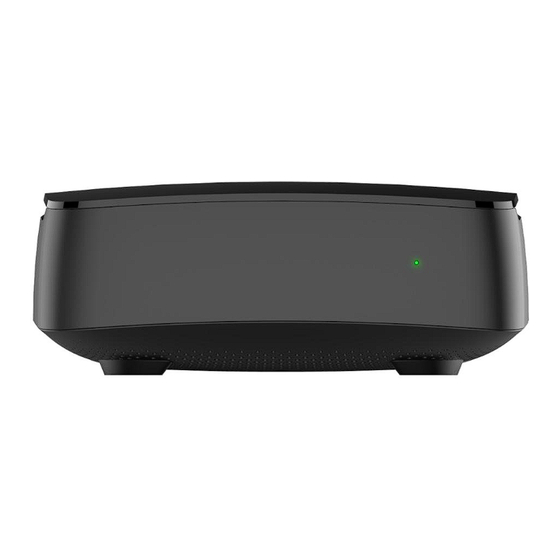

1 Thank you for choosing us The SML-5112W is a small-form solution, but still high performance set-top box (STB) capable of delivering to your home the exciting world of cutting edge interactive services. This manual contains a description of all possible features and options of SML-5112W, however your device may look slightly different from the one pictured in this document. -
Page 3: Indicators And Slots
Red — STB is in the stand-by mode. IR receiver The internal IR receiver is accepting signals from the IR remote control (RC). This element should be in the direct visibility range from the IR 105318, Russia, Moscow, Shcherbakovskaya str., b. 3. Ph.: (495)645-44-56 page http://www.smartlabs.tv CONFIDENTIAL... -
Page 4: Installation
3. Make sure that the TV set and the STB are not connected to the power network. 4. Connect the TV set and the STB with the HDMI cable. 105318, Russia, Moscow, Shcherbakovskaya str., b. 3. Ph.: (495)645-44-56 page http://www.smartlabs.tv CONFIDENTIAL... -
Page 5: Remote Control Description
Power. Switching the STB on and of Choosing a signal source on TV* Disable/Enable the sound. Controls TV or STB* V- V+ Change volume. Controls TV or STB Cancel/Go one level up 105318, Russia, Moscow, Shcherbakovskaya str., b. 3. Ph.: (495)645-44-56 page http://www.smartlabs.tv CONFIDENTIAL... -
Page 6: Automatic Setup
2. Point the remote control at your TV. Press and hold for three seconds the TV button and the button corresponding to the manufacturer’s number from the table (see. Table 105318, Russia, Moscow, Shcherbakovskaya str., b. 3. Ph.: (495)645-44-56 page http://www.smartlabs.tv CONFIDENTIAL... - Page 7 1064 1151 1041 1008 1035 1004 1155 1112 1031 1079 1000 1002 1013 1165 1166 1167 1168 1169 1170 1171 1172 1173 1174 1175 1176 1177 1178 1179 Sony 1094 1134 1116 1199 1200 1201 105318, Russia, Moscow, Shcherbakovskaya str., b. 3. Ph.: (495)645-44-56 page http://www.smartlabs.tv CONFIDENTIAL...
- Page 8 A full table of manufacturers numbers and codes see on http://smartlabs.tv/en/set- top/codes 6.5 Setting up remote control by using manufacturer's code 1. Turn your TV on. 2. Point the remote control at your TV. Press and hold TV and OK buttons for 3 seconds.
-
Page 9: Resetting The Remote Control
2. Turn STB on by using its remote signal" mains supply. control. 2. STB is turned off. 3. Use TV remote control to select the 3. TV is set to the 105318, Russia, Moscow, Shcherbakovskaya str., b. 3. Ph.: (495)645-44-56 page http://www.smartlabs.tv CONFIDENTIAL... -
Page 10: Specifications
The correct disposal will help prevent potential negative impact on the environment and human health. 11 Specifications Name: SML-5112W Dimensions: 160х156х62 mm, 450g Power supply: Input: AC 100 - 240V, 1.0A Max, 50Hz - 60Hz Output: DC 12.0V, 2.5A... - Page 11 HDMI Licensing LLC in the United States and other countries. SmartLabs LLC is able to change, improve any product described in this guide and also the guide itself without preliminary notice. © SmartLabs LLC. No part of this document can be reprinted, republished without a preliminary agreement with SmartLabs LLC.
-
Page 12: Ec Declaration Of Conformity
Manufacture date is encrypted in the serial number on the device bottom. 9 and 8 digits to the right are the year, 7 and 6 are the week: 105318, Russia, Moscow, Shcherbakovskaya str., b. 3. Ph.: (495)645-44-56 page http://www.smartlabs.tv CONFIDENTIAL... -
Page 13: Warranty
Device lifetime is 36 months (3 years) 14 About the manufacturers Legal entity: SmartLabs LLC. Address: Scherbakovskaya street 3, Moscow, Russia, 105318 Contact information: www.smartlabs.tv Manufacturing plant: Sichuan Changhong Network Technologies Co. LTD Manufacturing plant address: 35, East Mianxing Road, High-Tech Park, Mianyang, Sichuan, China.
