Part Names and Functions

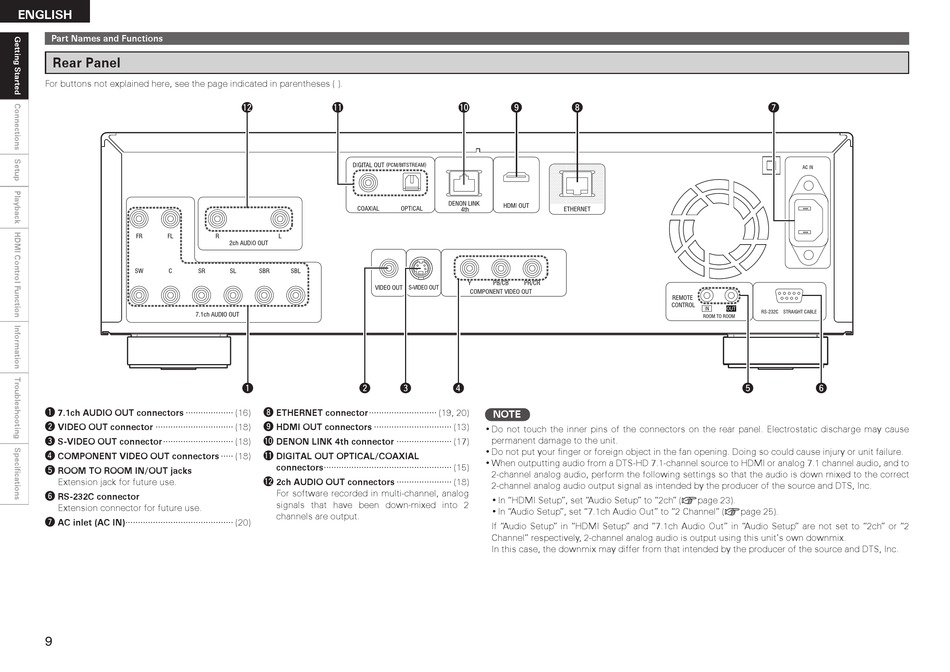

Rear Panel

For·buttons·not·explained·here,·see·the·page·indicated·in·parentheses·(·).
·7.1ch AUDIO OUT connectors···················· (16)
q
w ·VIDEO OUT connector································ (18)
·S-VIDEO OUT connector· · ··························· (18)
e
r ·COMPONENT VIDEO OUT connectors······ (18)
·ROOM TO ROOM IN/OUT jacks
t
Extension·jack·for·future·use.
y ·RS-232C connector
Extension·connector·for·future·use.
u ·AC inlet (AC IN)· · ·········································· (20)

Q2 Q1
q w e
·ETHERNET connector· · ·························· (19,·20)
i
o ·HDMI OUT connectors································ (13)
· DENON LINK 4th connector······················· (17)
Q0
Q1 · DIGITAL OUT OPTICAL/COAXIAL
connectors· · ·················································· (15)
· 2ch AUDIO OUT connectors······················· (18)
Q2
For·software·recorded·in·multi-channel,·analog·
signals· that· have· been· down-mixed· into· 2·
channels·are·output.
Q0 o i
r
NOTE
• Do· not· touch· the· inner· pins· of· the· connectors· on· the· rear· panel.· Electrostatic· discharge· may· cause·
permanent·damage·to·the·unit.
• Do not put your finger or foreign object in the fan opening. Doing so could cause injury or unit failure.
• When·outputting·audio·from·a·DTS-HD·7.1-channel·source·to·HDMI·or·analog·7.1·channel·audio,·and·to·
2-channel·analog·audio,·perform·the·following·settings·so·that·the·audio·is·down·mixed·to·the·correct·
2-channel·analog·audio·output·signal·as·intended·by·the·producer·of·the·source·and·DTS,·Inc.
• In·"HDMI·Setup",·set·"Audio·Setup"·to·"2ch"·(vpage·23).
• In·"Audio·Setup",·set·"7.1ch·Audio·Out"·to·"2·Channel"·(vpage·25).
If· "Audio· Setup"· in· "HDMI· Setup"· and· "7.1ch· Audio· Out"· in· "Audio· Setup"· are· not· set· to· "2ch"· or· "2·
Channel"·respectively,·2-channel·analog·audio·is·output·using·this·unit's·own·downmix.
In·this·case,·the·downmix·may·differ·from·that·intended·by·the·producer·of·the·source·and·DTS,·Inc.
u
t y
