Amana AGR5735QDS Installation Manual

J
J
J
J
J
[]
A
B
C
D
E
F
G s
H4

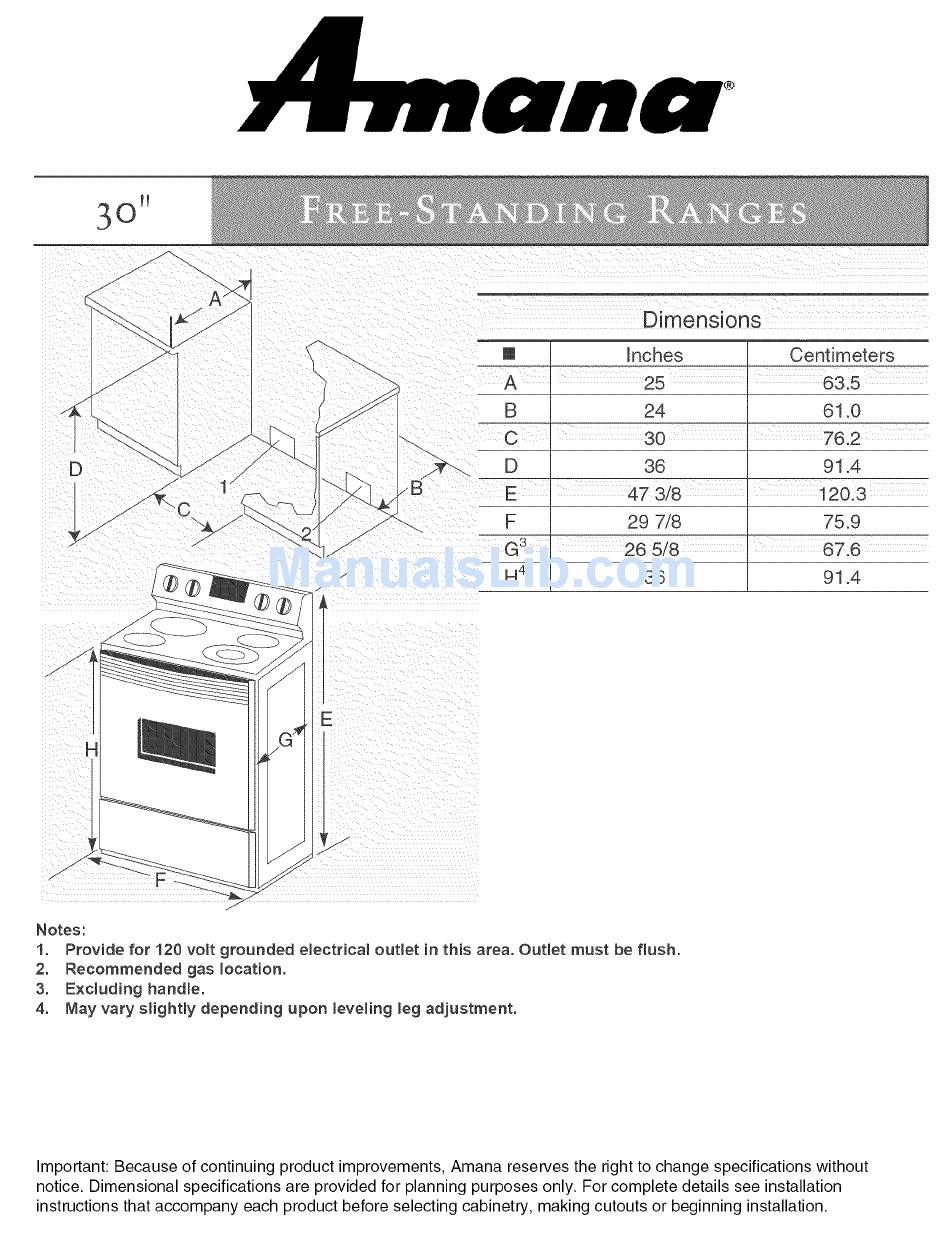

Dimensions
Inches
25
24
30
36
47 3/8
29 7/8
26 5/8
36
Centimeters
63.5
61.0
76.2
91.4
120.3
75.9
67.6
91.4
f
H
E
Notes:
1. Provide for 120 volt grounded electNcal outlet in this area. Outlet must be flush.
2. Recommended gas Jocation.
3. Excluding handJe.
4. May vary sJightly depending upon JeveJing Jeg adjustment.
Important: Because of continuing product improvements, Amana reserves the right to change specifications without
notice. Dimensional specifications are provided for planning purposes only. For complete details see installation
instructions that accompany each product before selecting cabinetry, making cutouts or beginning installation.
