Instructions for Using
For Models: AGR5844VDW0, AGR5844VDB0, AGR5844VDD0, AGR5844VDS0
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
W10196161 Installation
Instructions
Anti−Tip Template
9757142 English/Spanish
9757143 English/French
W10196156 Owners Manual
W10198635 Tech Sheet
9762761 Safer Cooking Tips
01−09 Litho in U.S.A. (JMJ) (eeb)

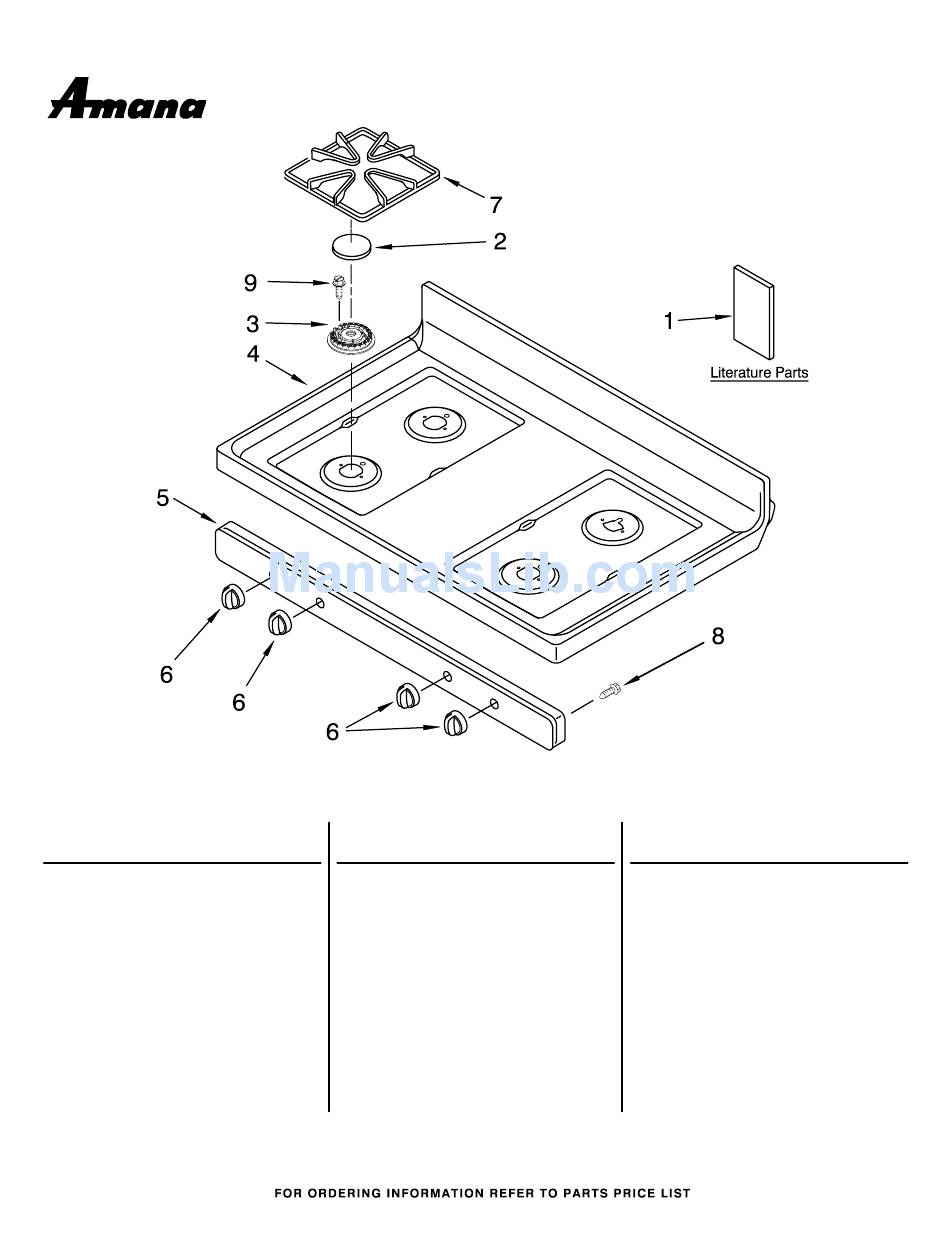

COOKTOP PARTS
(White)
(Black)
Illus.
Part
No.
No.
DESCRIPTION
2
Cap, Burner
Left Front
W10173832 Grey
W10173833 Black
R. Front, L. Rear
W10169974 Grey
W10169984 Black
Right Rear
W10169975 Grey
W10169985 Black
3
Burner
8286182 Left Front
W10194076 R. Front, L. Rear
8286181 Right Rear
1
(Universal Silver) (Stainless Steel)
Illus.
No.
4
8272251 White
8272253 Black
5
8523854 White
8523855 Black
6
W10163287 White
W10163288 Black
7
W10165807 Grey
8053458 Black
8
3400701 Screw
9
3196557 Screw
30" GAS FREESTANDING
SELF CLEAN RANGE
SEALED BURNER
Part
No.
DESCRIPTION
Cooktop
Panel, Manifold
Knob, Control (4)
Grate, Burner (4)
Part No. W10213954 Rev. B
