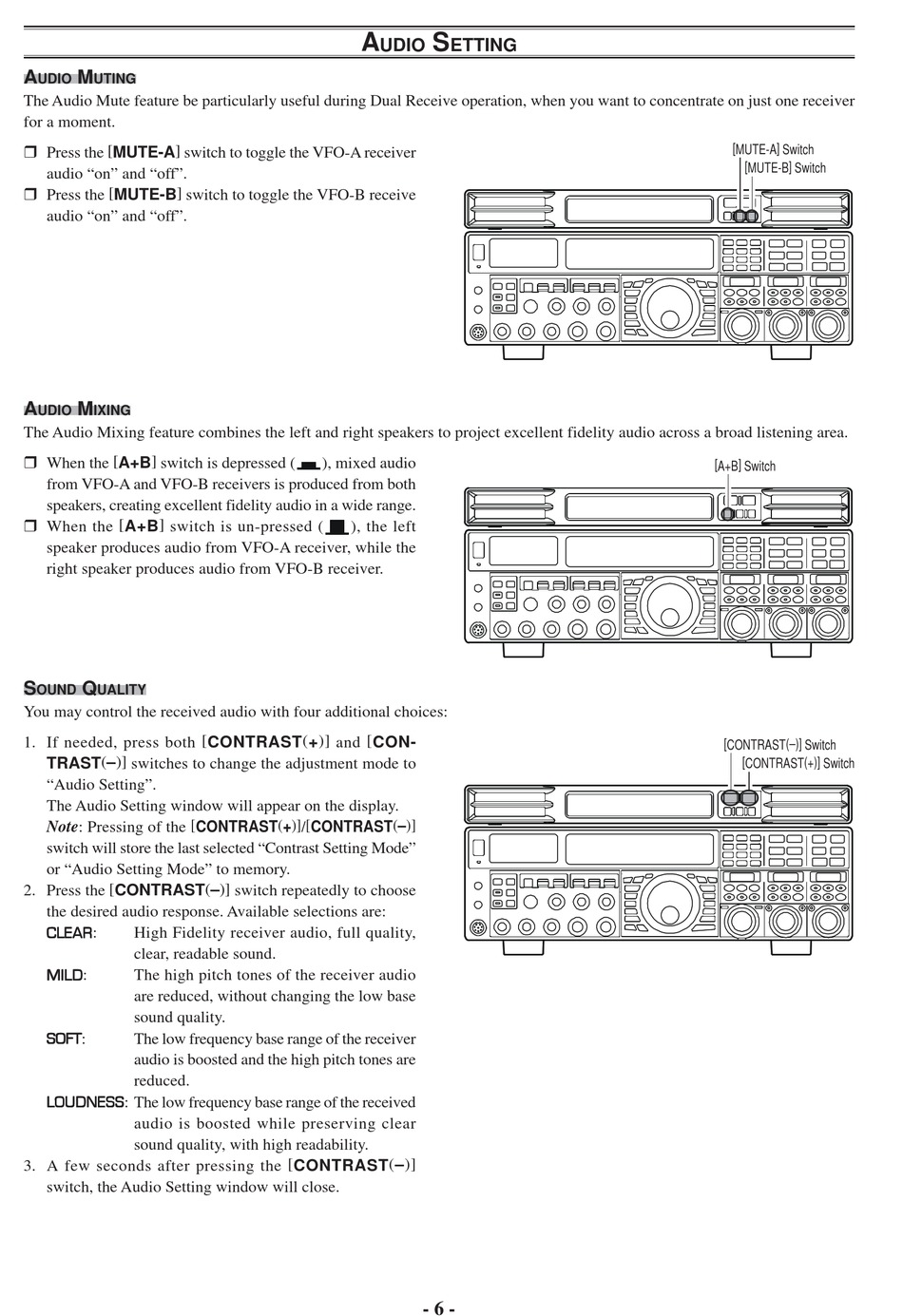

Audio Setting - Yaesu SM-5000 - COMPUTER Interface Manual

A M
UDIO UTING
The Audio Mute feature be particularly useful during Dual Receive operation, when you want to concentrate on just one receiver
for a moment.
 Press the [ MUTE-A ] switch to toggle the VFO-A receiver
audio "on" and "off".
 Press the [ MUTE-B ] switch to toggle the VFO-B receive
audio "on" and "off".
A M
UDIO IXING
The Audio Mixing feature combines the left and right speakers to project excellent fidelity audio across a broad listening area.
 When the [ A+B ] switch is depressed (
from VFO-A and VFO-B receivers is produced from both
speakers, creating excellent fidelity audio in a wide range.
 When the [ A+B ] switch is un-pressed (
speaker produces audio from VFO-A receiver, while the
right speaker produces audio from VFO-B receiver.
S Q
OUND UALITY
You may control the received audio with four additional choices:
1. If needed, press both [ CONTRAST ( + )] and [ CON-
TRAST ( – )] switches to change the adjustment mode to

"Audio Setting".

The Audio Setting window will appear on the display.
Note: Pressing of the [ CONTRAST ( + )] / [ CONTRAST ( – )]
switch will store the last selected "Contrast Setting Mode"
or "Audio Setting Mode" to memory.
2. Press the [ CONTRAST ( – )] switch repeatedly to choose
the desired audio response. Available selections are:
CLEAR: CLEAR CLEAR CLEAR CLEAR
High Fidelity receiver audio, full quality,
clear, readable sound.
MILD MILD MILD:
MILD MILD
The high pitch tones of the receiver audio
are reduced, without changing the low base
sound quality.
SOFT SOFT
SOFT SOFT SOFT:
The low frequency base range of the receiver
audio is boosted and the high pitch tones are
reduced.
LOUDNESS LOUDNESS LOUDNESS LOUDNESS LOUDNESS: The low frequency base range of the received
audio is boosted while preserving clear
sound quality, with high readability.
3. A few seconds after pressing the [ CONTRAST ( – )]
switch, the Audio Setting window will close.
A S
UDIO ETTING
), mixed audio
), the left
- 6 -
[ MUTE-A ] Switch
[ MUTE-B ] Switch
[ A+B ] Switch
[ CONTRAST (–)] Switch
[ CONTRAST ( + )] Switch
