Denon A/V SURROUND RECEIVER AVR-587 Specification

A/V Surround Receiver

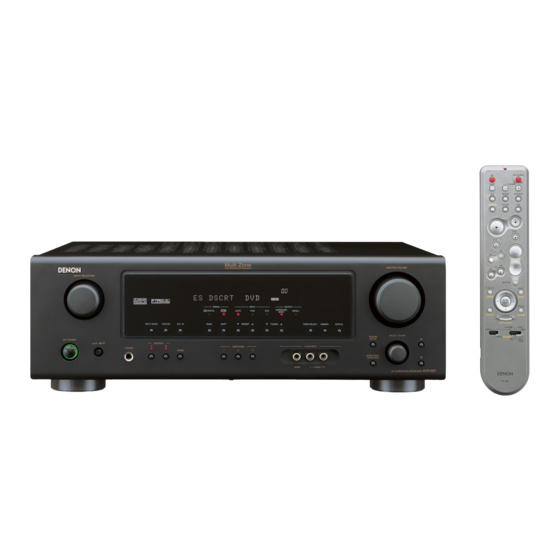

AVR-587
7.1 A/V Surround Receiver features XM-HD Surround and
iPod command and control capability.
Audio section
Fully discrete 7-channel high power amplifiers
Front 75 W + 75 W
Center 75 W
Surround 75 W + 75 W
Surround Back 75 W + 75 W
High-quality surround sound reproduction
• High resolution 32bit floating point DSP
• 96 kHz processing circuit
Denon's basic design for high-quality sound reproduction
• Power transformer for high power driven
• Twin drive rectifier
• Large aluminum extruded heatsink
Wide-range play capability for DVD-Audio and Super Audio CD
The power amp circuits of the AVR-587 have been meticulously designed to reproduce
the exceptionally high sound quality with wide frequency response from 10 Hz to 100 kHz.
Dual channel surround back power amp for 7.1 surround
The AVR-587 is equipped with a total of 7 power amps including 2 for the Surround
Back channel speaker to give you more clearly defined sound localization at the rear
for 6.1-channel surround sources such as DTS-ES Discrete 6.1, DTS-ES Matrix 6.1,
Dolby Digital EX, and DTS-ES NEO:6.
Cinema Equalizer
The sound from movie sources recorded in Dolby Digital, DTS or other formats empha-
sizes high-frequency range due to a theater's front speakers being placed behind the
movie screen. If this sound is reproduced in the home theater without correction, the
high-frequency range is too strong. The AVR-587 features a Cinema Equalizer to
correct these high-frequency components so that the sound is clearer and easier to
listen to. (For Dolby Digital, Dolby Pro Logic
Supports the most advanced surround playback formats
• DTS 96/24 Decoding for DVD-Video • DTS-ES Discrete 6.1 and Matrix 6.1
• DTS NEO:6 • Dolby Digital EX • Dolby Pro Logic
Denon DSP Surround Modes Add Listening Excitement
Put yourself in the middle of your favorite concert hall and music environments
with DENON's DSP acoustic environment simulation modes. These DSP modes
(8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
(8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
(8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
(8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
I I , Dolby Digital EX and DTS surround modes)
IIx • Neural Surround
add spacious surround sound enhancements to your favorite music and video
sources, and include these distinctly different sounding effects:
1. 5 / 7 Channel Stereo 2. Virtual Surround
4. Jazz Club 5. Video Game
7. Mono Movie
Video section
Component video circuits which maintain flat response up to 30 MHz,
ensuring sharp image quality
3 Sets of Component Video Inputs
3 Sets of S-Video Switching
Connectivity / Usability
ASD-1R Control Dock for iPod ® (option): Supports iPod playback
when connected to the AVR-587
iPod (*1) playback can be enjoyed through the AVR-587
when the ASD-1R, Denon's original Control Dock for iPod
(sold separately), is connected to the dedicated control
terminal of the AVR-587. The iPod can also be controlled
via the remote controller supplied with the AVR-587.
*1) Supports 3rd-generation and later iPods equipped with a Dock con-
nector. Some functions may not work depending on the generation of the
iPod and the version of the software..
Please visit http://blog.denon.com/asd-1r/
for more details on compliant models and connection procedures.
XM Mini-Tuner Ready*
(Supports XM 5.1ch surround powered by Neural Audio)
*Optional XM Mini-Tuner and subscribes are required.
Assignable surround back (L/R) amplifiers for Multi-zone playback
Amplifiers initially reserved for Surround back (L/R) channels can be assigned to Zone
2 speakers.
8ch External Inputs
New simple remote for easy operation
3 user mode buttons
3. Rock Arena
6. Matrix
Black version is also available.
