MODE-SSB G
084 J3E MIC SEL
Function: Selects the microphone to be used on the SSB
modes (LSB and USB).
Available Values: Frnt / dAtA / PC
Default Setting: Frnt
Frnt (FRONT): Selects the microphone connected to
the front panel's MIC jack while using
the SSB modes.
dAtA: Selects the microphone connected to
pin 1 of the PACKET Jack while us-
ing the SSB modes.
PC: This parameter is for future expansion
of this transceiver's capabilities, but at
this time is not supported.

085 J3E TX BPF

Function: Selects the audio passband of the DSP modula-
tor on the SSB mode.
Available Values: 1-30 / 1-29 / 2-28 / 3-27 / 4-26 / 3000
1-30: 50-3000(Hz)
1-29: 100-2900(Hz)
2-28: 200-2800(Hz)
3-27: 300-2700(Hz)
4-26: 400-2600(Hz)
3000: 3000WB
Default Setting: 3-27 (300-2700 Hz)
N :
OTE
The apparent power output, when using the widest band-
widths, may seem lower. This is normal, and it occurs be-
cause the available transmitter power is distributed over a
wider bandwidth. The greatest compression of power out-
put, conversely, occurs when using the "4-26" setting (400-
2600 Hz), and this setting is highly recommended for con-
test or DX pile-up work.

086 J3E LSB CAR

Function: Adjusts the receiver carrier point for the Main
band's (VFO-A) LSB mode.
Available Values: –200 Hz ~ +200 Hz (10 Hz/steps)
Default Setting: 0 Hz

087 J3E USB CAR

Function: Adjusts the receiver carrier point for Main
band's (VFO-A) USB mode.
Available Values: –200 Hz ~ +200 Hz (10 Hz/step)
Default Setting: 0 Hz
088 J3E SLSB CR
Function: Adjusts the receiver carrier point for the Sub
band's (VFO-B) LSB mode.
Available Values: –200 Hz ~ +200 Hz (10 Hz/step)
Default Setting: 0 Hz
089 J3E SUSB CR
Function: Adjusts the receiver carrier point for Sub band's
(VFO-B) USB mode.
Available Values: –200 Hz ~ +200 Hz (10 Hz/step)
Default Setting: 0 Hz
Page 120
ROUP
RX AUDIO G

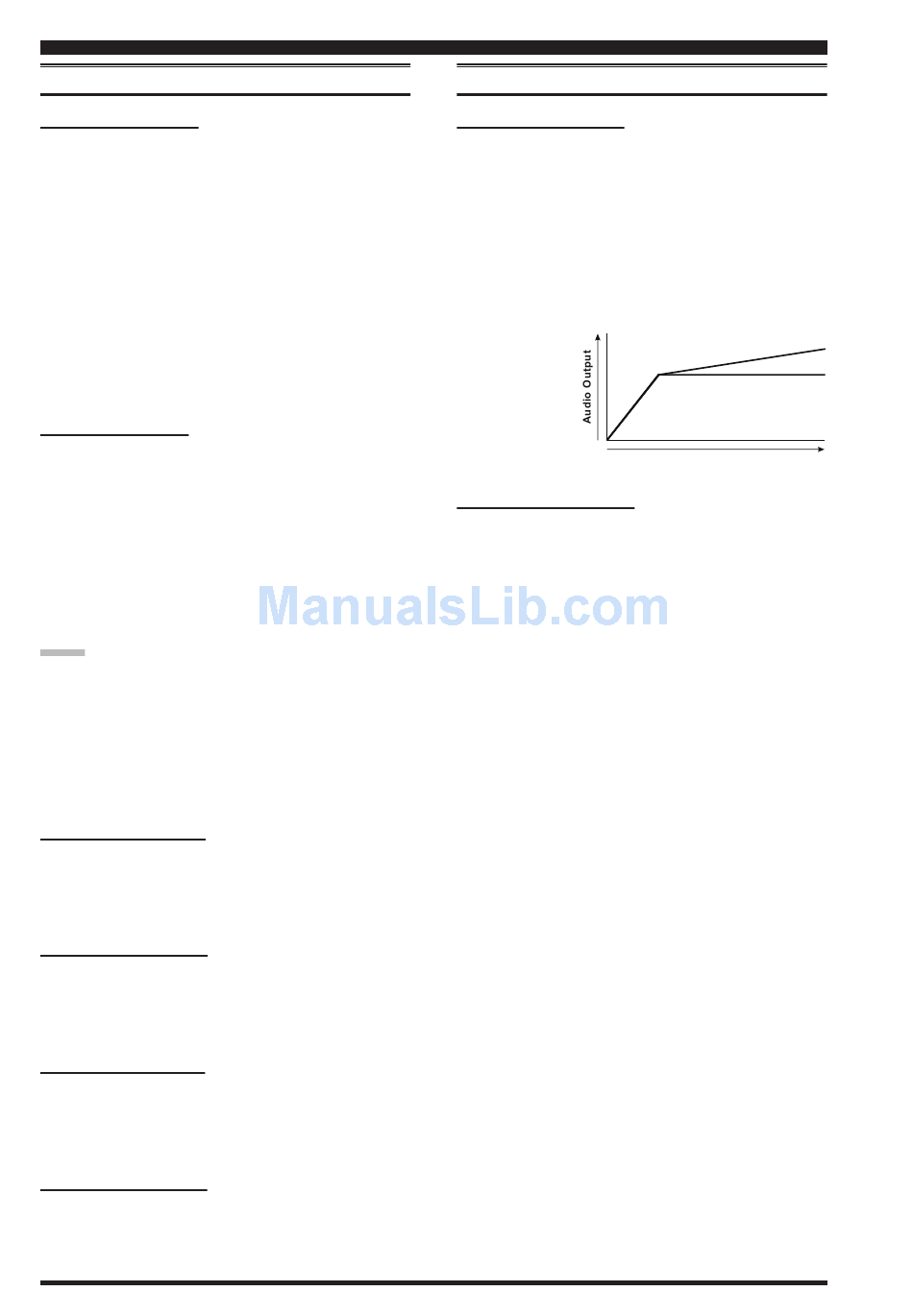

090 rout AGC SLP
Function: Selects the gain curve of the AGC amplifier.
Available Values: nor / SLP
Default Setting: nor
nor (NORMAL): The AGC output level will follow a
linear response to the antenna input
level, while AGC is activated.
SLP (SLOPED): The AGC output level will increase
at 1/10 the rate of the antenna input
level, while AGC is activated.
091 rout HEADPHN
Function: Selects one of three audio mixing modes when
using headphones during Dual Receive operation.
Available Values: SEP / Con1 / Con2
Default Setting: SEP
SEP (SEPARATE): Audio from the Main (VFO-A)
receiver is heard only in the left
ear, and Sub (VFO-B) receiver
audio solely in the right ear.
Con1 (COMBINE 1): Audio from both Main (VFO-
A) and Sub (VFO-B) receivers
can be heard in both ears, but
Sub (VFO-B) audio is attenu-
ated in the left ear and Main
(VFO-A) audio is attenuated in
the right ear.
Con2 (COMBINE 2): Audio from both Main (VFO-
A) and Sub (VFO-B) receivers
is combined and heard equally
in both ears.
FT-2000 O
ROUP
SLOPE
NORMAL
Input Signal
M
PERATING ANUAL
