Cable plan

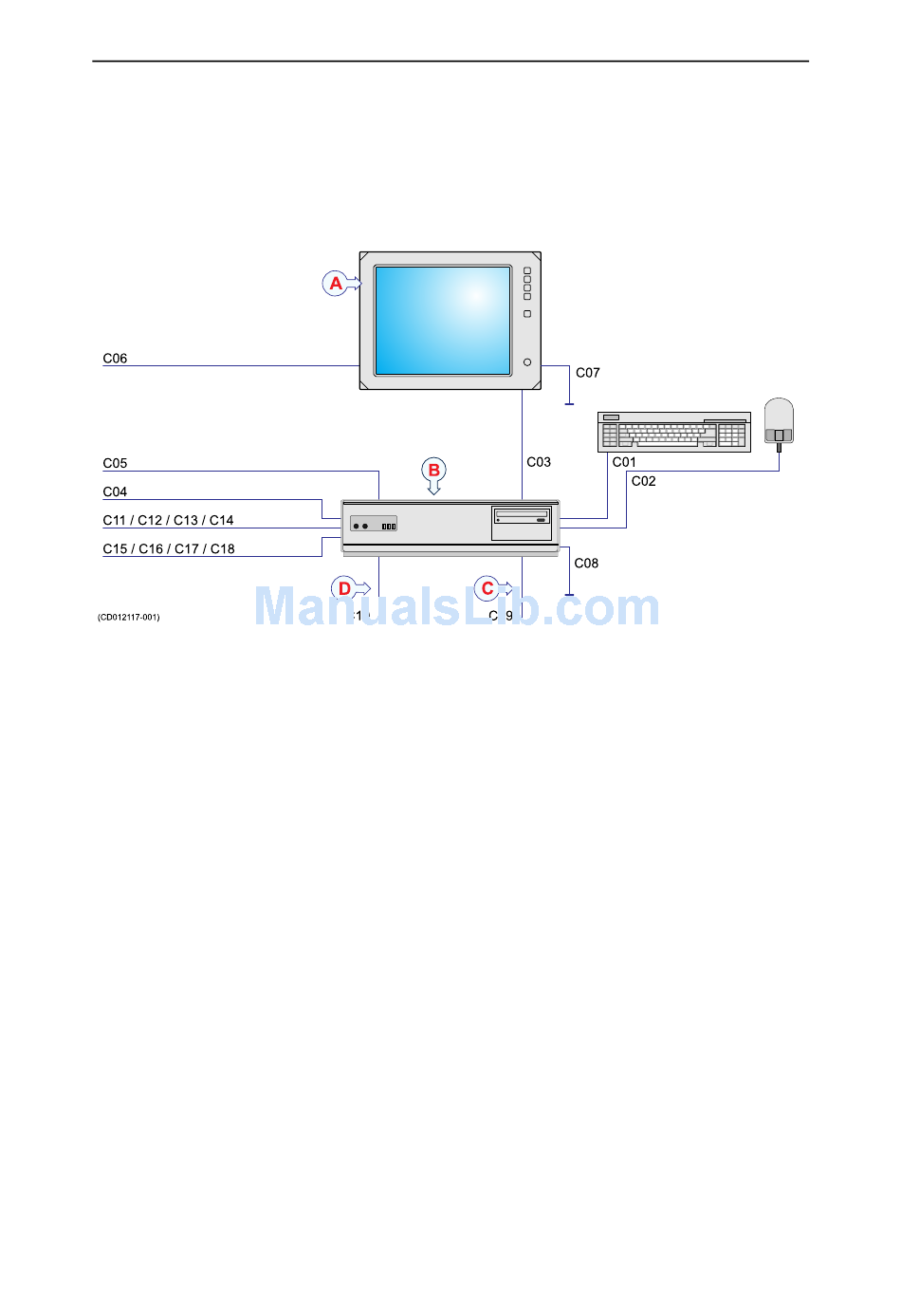

Figure 8 Cable plan, topside
A
Display
Computer
B
Ethernet cable to vessel LAN (C09, optional)
C
Serial cable to Receiver Unit (C10)
D
If a loudspeaker system is installed, use the appropriate output (audio or USB depending
on the speaker system) on the rear side of the computer.
328459/A
PI50 Cable layout
25
