Main parts identification

313700/D
Observe the illustration below for identification of the main parts
of the PI SeineSounder.

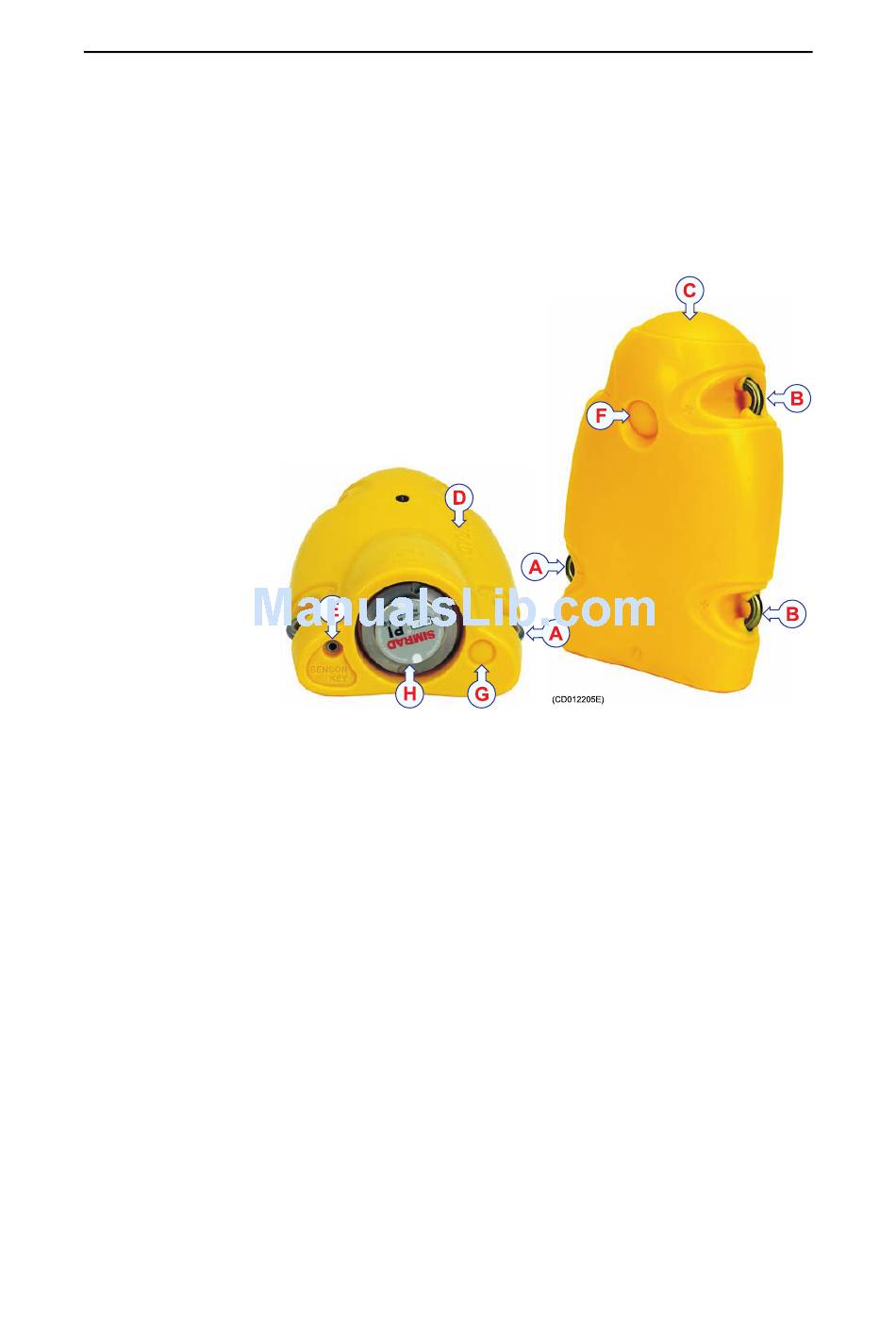

Figure 3 PI SeineSounder
A Negative charging and fastening lug
Positive charging and fastening lug
B
C Communication link
D Location of sensor lamp
Sensor "key" and water switch sensor
E
F Echo sounder transducer for trawl
G Echo sounder transducer for purse seine
Depth sensor
H
