Simrad PI GEOMETRY - DATASHEET REV A Datasheet page 4

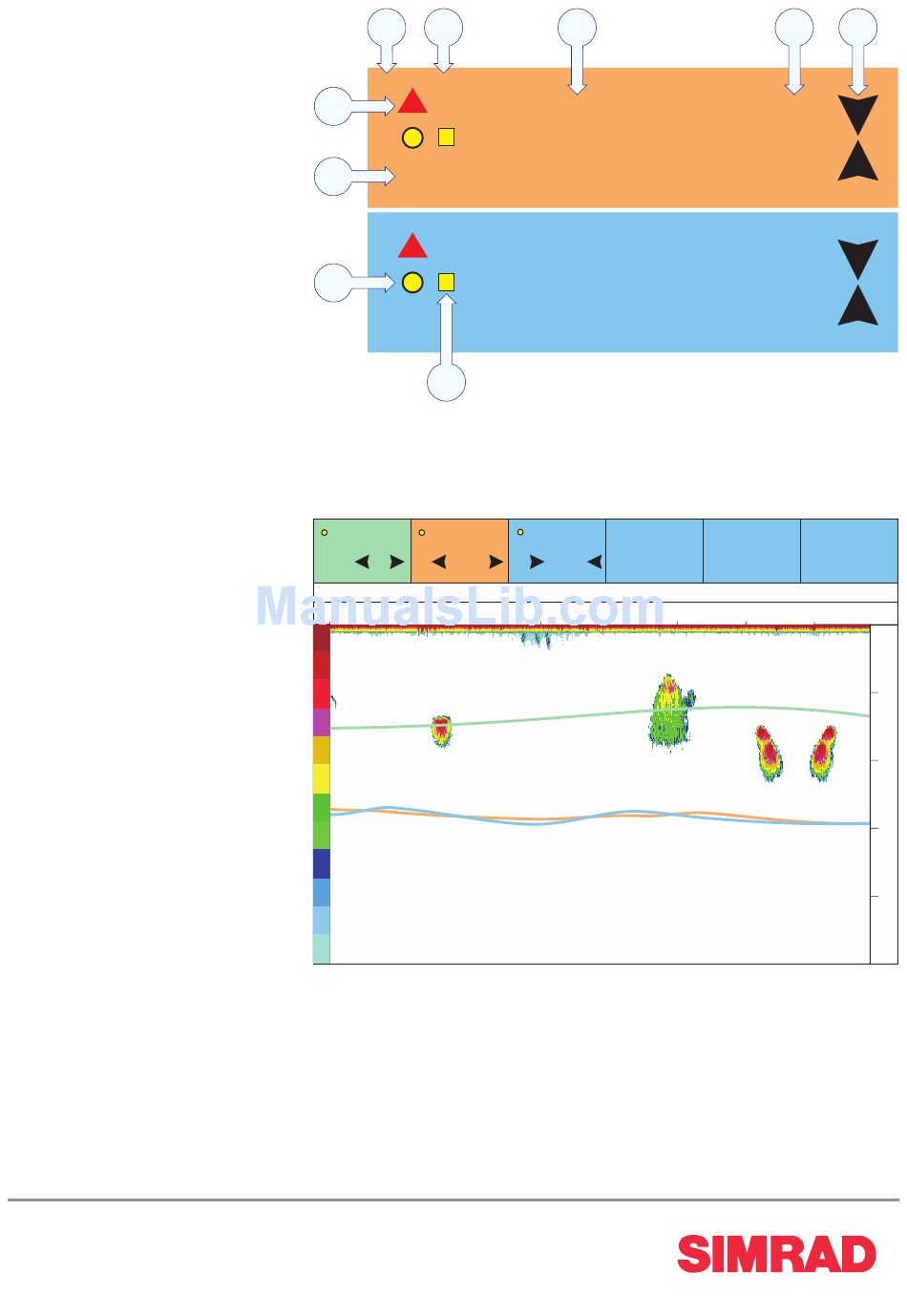

Clear and precise
numerical information
The numerical presentation of the PI
Geometry data is automatically shown
in the relevant display modes. Since this
is a "dual" sensor two yellow rectangles
are used to indicate which two numerical
displays that provide information from the
same sensor.
A Sensor identification
B Unit of measurement
C Distance
D Distance changes per minute
E Arrows pointing "out" means that the
distance is increasing, arrows pointing
"in" means that distance is decreasing
F Visual alarm
G Sensor transmission indicator
H Interference warning
I Dual sensor identification
Graphic presentation
This example shows a graphic display
with PI Spread and PI Geometry sensors
connected. The top line shows the
distance between the trawl doors. It is
currently 69,5 meters, and the distance
is increasing with 2 meters per minute.
The PI Geometry sensor detects that the
distances between the centre of the trawl
opening and the two trawl doors are
currently identical and 147,0 meters. The
distances are changing with 0,5 meter per
minute. The graphical presentation further
presents the historic values from within
the past 17,5 minutes.
Simrad
Kongsberg Maritime AS
Strandpromenaden 50
P.O.Box 111
N-3191 Horten, Norway
B
A
X1 [m]
F
1

H
X2 [m]
G
1

I
In this example the two responders are positioned with identical distances to the PI
geometry sensor. The gear is in balance, and no adjustments are required.
69. 147.
S1[m] X2[m]
5
2 0.5
38kHz 1000W
17.5 15 12.5
Telephone: +47 33 03 40 00
Telefax: +47 33 04 29 87
www.simrad.com
simrad.sales@simrad.com
C
143.
143.
147.
X3[m]
0
0
0.5
MEDIUM T 22.5 C o
10 7.5
D
1
5
1
5
(CD012221-007)
S 7.2kn DK 1050 m
5 2.5
326136 / Rev.A / September 2008
E
min
0
50
100
150
200
250
(CD012106-001)
