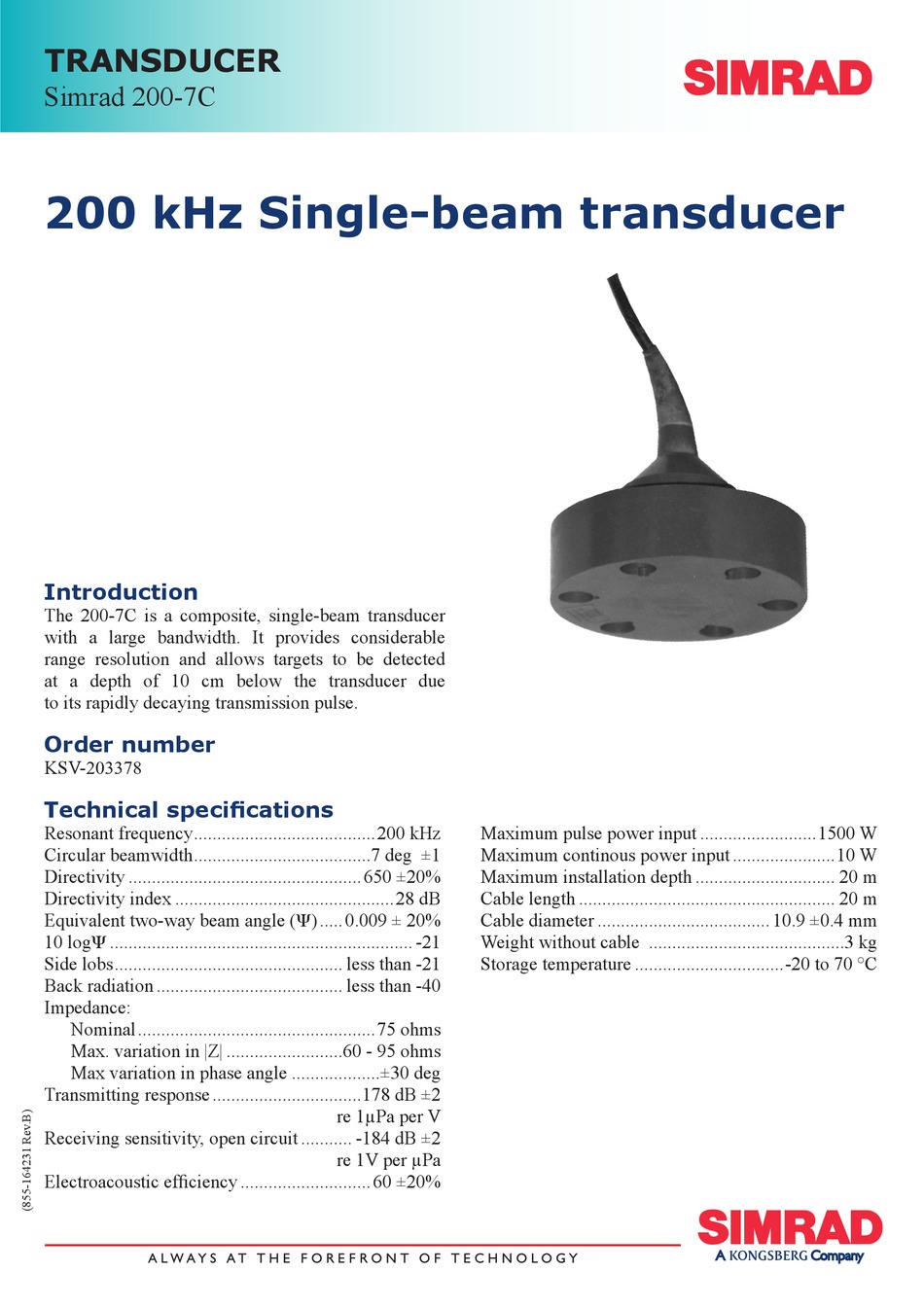

Simrad 200-7C - DATASHEET REV B Datasheet

TRANSDUCER
Simrad 200-7C
200 kHz Single-beam transducer
Introduction
The 200-7C is a composite, single-beam transducer
with a large bandwidth. It provides considerable
range resolution and allows targets to be detected
at a depth of 10 cm below the transducer due
to its rapidly decaying transmission pulse.
Order number
KSV-203378
Technical specications
Resonant frequency.......................................200 kHz
Circular beamwidth......................................7 deg ±1
Directivity .................................................. 650 ±20%
Directivity index ...............................................28 dB
Equivalent two-way beam angle (Ψ) ..... 0.009 ± 20%
10 logΨ ................................................................. -21
Side lobs................................................. less than -21
Back radiation ........................................ less than -40
Impedance:
Nominal...................................................75 ohms
Max. variation in |Z| .........................60 - 95 ohms
Max variation in phase angle ...................±30 deg
Transmitting response ................................178 dB ±2
Receiving sensitivity, open circuit ........... -184 dB ±2
Electroacoustic efciency ............................ 60 ±20%
Maximum pulse power input .........................1500 W
Maximum continous power input ......................10 W
Maximum installation depth .............................. 20 m
Cable length ....................................................... 20 m
Cable diameter ..................................... 10.9 ±0.4 mm
Weight without cable ..........................................3 kg
Storage temperature ................................-20 to 70 °C
re 1µPa per V
re 1V per µPa
