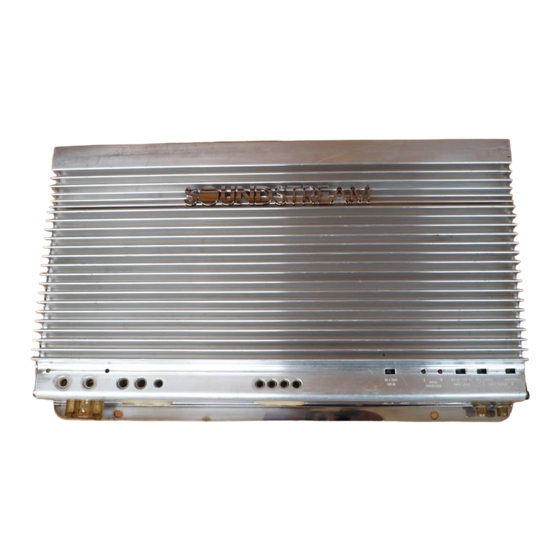

Soundstream REFERENCE A 5.0 Owners And Installation Manual

Soundstream technologies owners manual and installation guide stereo amplifier class a 5.0, class a 10.0

Enlarged version

SERIES AND PARALLEL WIRING

REFERENCE

Class A

5.0 & 10.0

Power Amplifiers

2-4 ohm drivers in parallel

= 2 ohms

AND

4-4 ohm drivers in parallel

=1 ohm

2-4 ohm drivers in series

= 8 ohms

SOUNDSTREAM TECHNOLOGIES

120 Blue Ravine Road

Folsom

California 95630 USA

ph 916.351.1288

fax 916.351.0414

rev B - 4.17.96

Table of Contents
