  • Page 1: Washing Machine

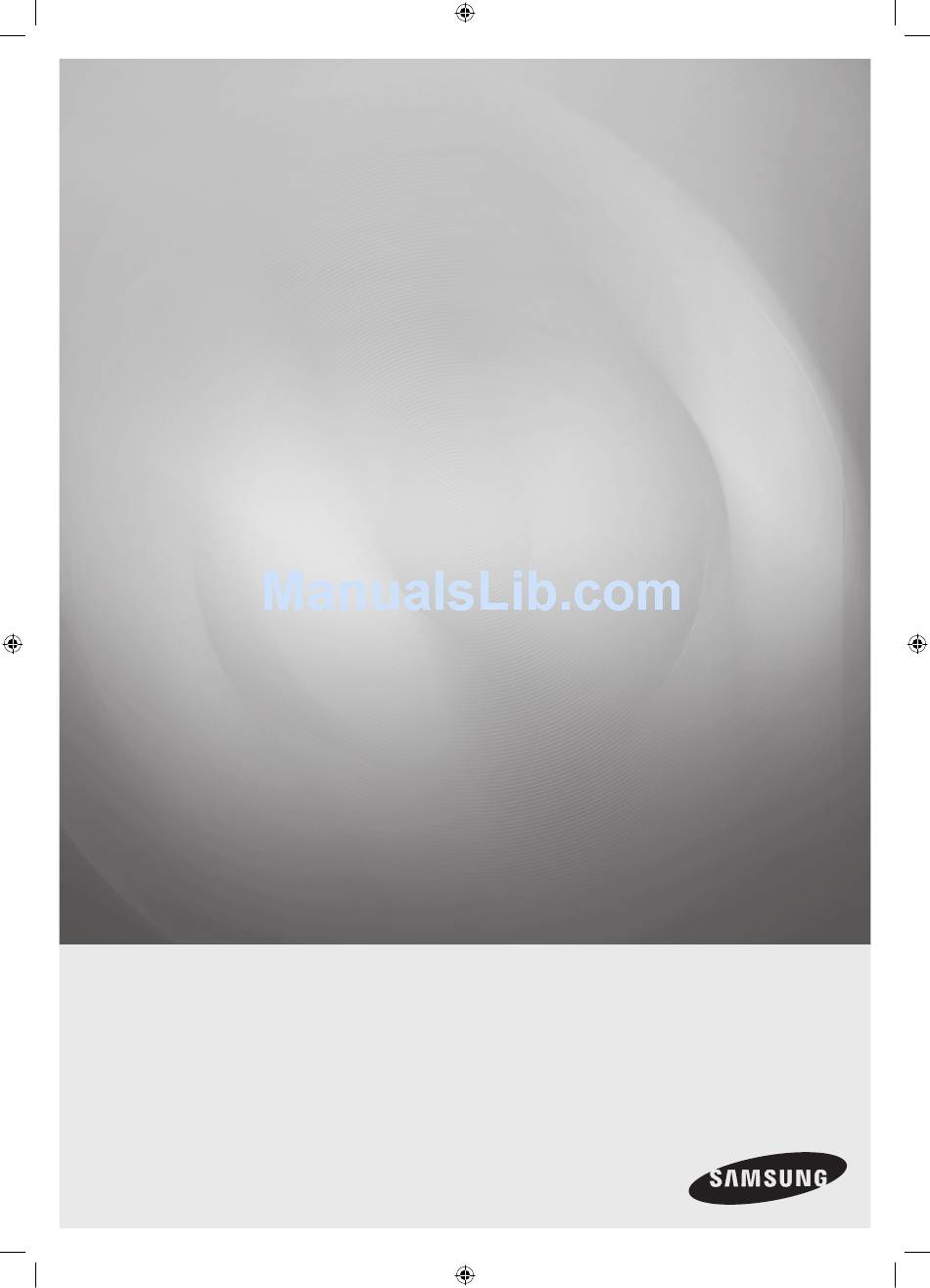

    WF7702N6(W/V/S/C/R) WF7700N6(W/V/S/C/R) WF7700N6(W/V/S/C/R)1 WF7708N6(W/V/S/C/R) WF7708N6(W/V/S/C/R)1 WF7604N6(W/V/S/C/R) WF7602N6(W/V/S/C/R) WF7600N6(W/V/S/C/R) user manual imagine the possibilities Thank you for purchasing a Samsung product. To receive a more complete service, please register your product at www.samsung.com/global/register WF7608N6(W/V/S/C/R) WF7522N6(W/V/S/C/R) WF7520N6(W/V/S/C/R) WF7528N6(W/V/S/C/R) WF7452N6(W/V/S/C/R) WF7450N6(W/V/S/C/R) WF7458N6(W/V/S/C/R) WF7350N6(W/V/S/C/R)

  • Page 2: Delay Start

    • Child Lock The Child Lock function keeps curious little hands out of the washer. This safety feature ensures, that children do not toy with the operation of the washer. It also alerts you when it is activated. • Handwash for wool Clothes susceptible to damage, such as those made of linen or silk, can be washed just as if they were being washed by hand.

  • Page 3: Safety Information

    It’s your resposibility to use common sense, caution, and care when installing, maintaining, and operation your washer. Samsung is not liable for damages resulting from improper use. IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS...

  • Page 4: Safety Instructions

    safety information SAFETY INSTRUCTIONS Before cleaning or carrying out maintenance, unplug the appliance from the electrical outlet or set the dial to Off. WARNING Make sure that the pockets of all clothing to be washed are empty. Hard, sharp objects, such as coins, safety pins, nails, screws, or stones can cause extensive damage to the appliance.

  • Page 5: Table Of Contents

    contents INSTALLING THE WASHING WASHING A LOAD OF LAUNDRY MAINTAINING THE WASHING TROUBLESHOOTING PROGRAMME CHART WF7700N6W-02375E-04_EN.indd 5 Unpacking the Washing Machine MACHINE Overview of the washing machine Selecting a location Adjusting the leveling feet Removing the shipping bolts Connecting the water supply hose (Option) Connecting the water supply hose Positioning the drain hose Environment...

  • Page 6: Installing The Washing Machine

    Unpack your washing machine and inspect it for shipping damage. Also make sure that you have received all of the items shown below. If the washing machine was damaged during shipping or you do not have all of the items, contact your Samsung dealer immediately. OVERVIEW OF THE WASHING MACHINE...

  • Page 7: Selecting A Location

    2. Tighten the locking nut by turning it with the supplied wrench. • Place the washer on a sturdy, flat surface. If the washer is placed on an uneven or weak surface, noise or vibration occurs. (Only a 1 degrees angle is allowed.) REMOVING THE SHIPPING BOLTS Before installing the washing machine, you must remove the five shipping bolts from the back of the unit.

  • Page 8: Connecting The Water Supply Hose (Option)

    When you release part (c) the hose automatically connects to the adaptor making a ‘click’ sound. 5. Connect the other end of the water supply hose to the inlet water valve at the top of the washer. Screw the hose clockwise all the way in. •...

  • Page 9: Connecting The Water Supply Hose

    The drain pipe branch must be above the sink siphon so that the end of the hose is at least 60 cm above the ground. ln a drain pipe Samsung recommends that you use a 65 cm high vertical pipe; it must be no shorter than 60 cm and no longer than 90 cm. ENVIRONMENT Please dispose of the packaging materials for this product in an “environmentally friendly”...

  • Page 10: Washing A Load Of Laundry

    Press the button repeatedly to cycle through the available spin speed options. WF7704N6/WF7604N6 WF7702N6/WF7602N6/WF7522N6/ WF7452N6 Spin selection WF7700N6/WF7600N6/WF7520N6/ WF7450N6/WF7350N6 button WF7708N6/WF7608N6/WF7528N6/ WF7458N6/WF7358N6 No spin - The laundry remains wet without spinning after final Rinse. Rinse Hold - The laundry remains soaking in the final rinse water. Before the laundry can be unloaded, either “Drain”...
  • Page 11 Child Lock selection button Fuzzy Control dial Start/Pause selection button (On/Off) selection button WF7700N6W-02375E-04_EN.indd 11 This is a button for preventing children from manipulating the washing machine. On/Off - To set the program on: Press the Start/Pause button to turn on the washing machine.

  • Page 12: Washing For The First Time

    washing a load of laundry WASHING FOR THE FIRST TIME Before washing clothes for the first time, you must run a complete cycle without clothes. 1. Press the (On/Off) button. 2. Pour a little detergent into compartment drawer. 3. Turn on the water supply to the washing machine. 4.

  • Page 13: Putting Detergent In The Washing Machine

    WASHING CLOTHES USING FUZZY LOGIC Your new washing machine makes washing clothes easy, using Samsung’s “Fuzzy Logic” automatic control system. When you select a wash programme, the machine will set the correct temperature, washing time, and washing speed.

  • Page 14: Washing Clothes Manually

    washing a load of laundry WASHING CLOTHES MANUALLY You can wash clothes manually without using the Fuzzy Logic feature. To do so: 1. Turn the water supply on. 2. Press the (On/Off) button on the washing machine. 3. Open the door. 4.

  • Page 15: Washing Tips And Hints

    7.0 kg 6.0 kg soiled 3.0 kg 3.0 kg 2.5 kg 2.5 kg 2.0 kg 2.0 kg Load Capacity WF7522N6/ WF7452N6/ WF7350N6/ WF7520N6/ WF7450N6/ WF7358N6 WF7528N6 WF7458N6 5.2 kg 4.5 kg 3.5 kg 5.2 kg 4.5 kg 3.5 kg 2.5 kg 2.5 kg...

  • Page 16: Maintaining The Washing Machine

    maintaining the washing machine DRAINING THE WASHING MACHINE IN AN EMERGENCY 1. Unplug the washing machine from the power supply. 2. Open the filter-cover by using a coin or a key. 3. Unscrew the emergency drain cap by turning left. Grip the cap on the end of the emergency drain tube and slowly pull it out about 15 cm.

  • Page 17: Cleaning The Detergent Drawer And Recess

    CLEANING THE DETERGENT DRAWER AND RECESS 1. Press the release lever on the inside of the detergent drawer and pull it out. 2. Remove the cap from compartment ( ). 3. Wash all of the parts under running water. 4. Clean the drawer recess with an old toothbrush. 5.

  • Page 18: Cleaning The Water Hose Mesh Filter

    maintaining the washing machine CLEANING THE WATER HOSE MESH FILTER You should clean the water hose mesh filter at least one time per year, or when you see the following error message on the display: To do this: 1. Turn off the water source to the washing machine. 2.

  • Page 19: Troubleshooting

    troubleshooting PROBLEMS AND SOLUTIONS PROBLEM The washing machine will not start No water or insufficient water supply Detergent remains in the detergent drawer after the wash program is complete Washing machine vibrates or is too noisy The washing machine does not drain and/or spin The Door does not open UNDERSTANDING ERROR MESSAGES...

  • Page 20: Programme Chart

    programme chart PROGRAMME CHART user option)  Program 7704N6/ 7702N6/ 7700N6/ 7708N6 Cotton Coloureds Synthetics Delicates Wool Handwash Quick Heavy Soil Mixed Load Bedding Water Saving Spin Speed (Max) rpm Program 7704N6/ 7604N6 Cotton 1400 Coloureds 1400 Synthetics Delicates Wool Handwash Quick 1400...

  • Page 21: Appendix

    appendix FABRIC CARE CHART Resistant material Delicate fabric Item may be washed at 95˚C Item may be washed at 60˚C Item may be washed at 40°C Item may be washed at 30°C Item may be hand washed Dry clean only Can be bleached in cold water Do not bleach Can be ironed at 200˚C max...

  • Page 22: Declaration Of Conformity

    230 V PUMPING PAPER PACKAGE WEIGHT PLASTIC MODEL SPIN REVOLUTION 22_ Appendix WF7700N6W-02375E-04_EN.indd 22 FRONT LOADING WASHER WF7704N6/WF7702N6/ WF7700N6/WF7708N6 W598mm × D550mm × H844mm 50 kPa ~ 800 kPa 60 ℓ 79 kg 7 kg (Dry Laundry) 220V 2000W 240V...
  • Page 23 7522N6 7520N6 7528N6 7452N6 550W 500W 430W 270W 34 W 2.1 kg 0.9 kg WF7702N6/WF7602N6/ WF7600N6/WF7520N6/ WF7522N6/WF7452N6 WF7450N6/WF7350N6 1200 WF7452N6/ WF7350N6/ WF7358N6 W598mm × D340mm × H844mm H844mm 48 ℓ 43 ℓ 62 kg 55 kg 4.5 kg 3.5 kg...
  • Page 24 QUESTIONS OR COMMENTS? Country CALL OR VISIT US ONLINE AT AUSTRALIA 1300 362 603 www.samsung.com/au Code No. DC68-02375E-05_EN WF7700N6W-02375E-04_EN.indd 24 2009-2-20 15:27:57...
