| SPECTRAVIEW II - USER'S GUIDE

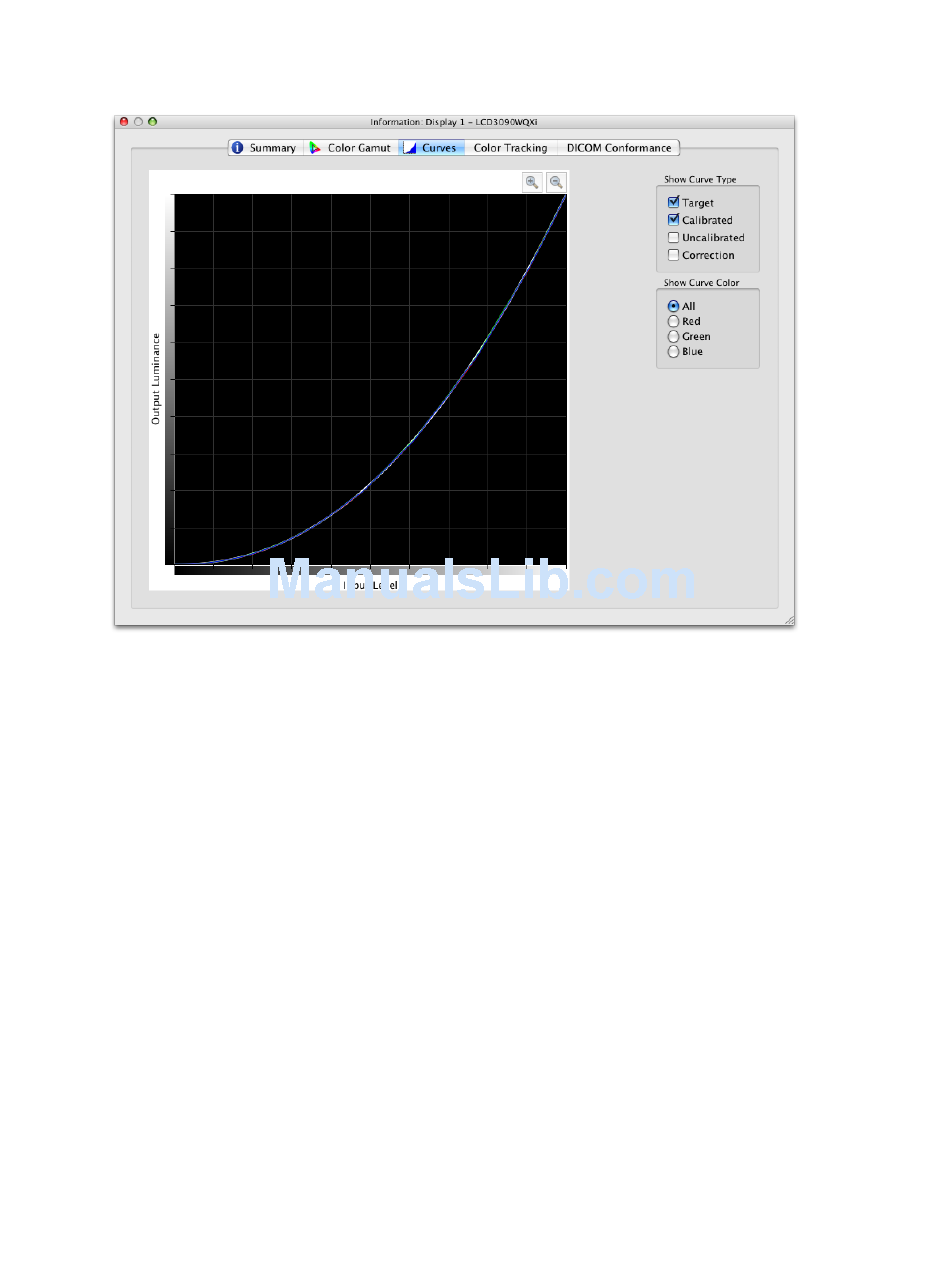

Information window - Curves tab
The Curves tab graphically illustrates the various tone response and correction curves measured and generated
during the calibration process.
Show Curve Type
Target - illustrates the target tonal response curve of the currently selected Target. This display will be
calibrated to match this curve. This curve will be disabled and not shown if the Target Gamma is set to
Monitor Native Gamma.
Calibrated - illustrates the actual measured tonal response curves of the calibrated display. These curves
are generated from measurements taken while generating an ICC/ColorSync monitor profile of the display.
If no ICC/ColorSync profile was generated after the monitor was calibrated, then this checkbox will be
disabled.
Uncalibrated - illustrates the actual measured tonal response curves of the uncalibrated display, without
any corrections applied to the Look Up Tables. These curves are generated from measurements taken
during the calibration process.
Correction - illustrates the correction that is applied to the display's Look Up Tables in order to achieve the
selected Target tonal response curve characteristics.
Show Curve Color
The All, Red, Green and Blue buttons select which curve colors are displayed on the graph.
