Maxxima MEW-S1504W-4 Installation Instructions

MEW- S1504W-4
4-Way Decorative Switch Installation Instructions
WARNINGS
• Risk of electric shock or fire - Disconnect power at the source
before installation.
• If you are unsure about the installation or the maintenance
of the fixture, please consult an electrician.
• Do not make or alter any holes in the wiring enclosure or
modify any electrical componentry.
• To prevent wiring damage or abrasion, do not expose wiring
to edges of sheet metal or other sharp objects.
4-Way decorative switch, push-in & terminal screws; 15A, 60Hz, 120V.
SPECIFICATION
1. Ensure the power has been turned off by switching the circuit breaker to the OFF position or by removing
INSTALLATION
the fuse from the fuse panel. See Warning.
2. Using Side Terminal Screws:
A. Terminal screws accept up to 12AWG copper or copper clad wire can be used.
B. Remove jacketing from wires, approximately 3/4" (1.9 cm).
C. The HOT terminals are the black screws. Loop each wire around their respective terminal screws as per
the diagram below and fasten screws securely.
D. Loop the ground wire around the GREEN terminal screw, fasten screw securely.
3. Use Push-In Wire Holes:
A. Push-in holes accept only 14AWG solid copper wire must be used.
B. Remove jacketing from wires, approximately 1/2" (1.3 cm).
C. HOT push-in holes are closest to black screws.
D. Insert wires into push-in holes on the back of the switch.
4. Mount the switch using the long mounting screws provided. Attach wall plate.
5. Restore power at the circuit breaker or fuse. See Warning. The switch is now operational.
4-Way Switch
Terminal Screws accept up
to 12AWG copper wire
GREEN
terminal
screw
Insert 14AWG solid copper wire only
Use Terminal Screws for other type
Maxxima extends a 1 year limited warranty to the original purchase that the products listed are free from defects in material and/or
workmanship only. Maxxima will replace any warrantied product to the original consumer/purchaser if the product fails because of defects
due to workmanship and/or materials within the limited warranty period. Limited warranty is not transferable and applies to the original
installation of the Maxxima product. This offer does not constitute in any way a product guarantee and Maxxima does not hereby assume
info@maxximastyle.com

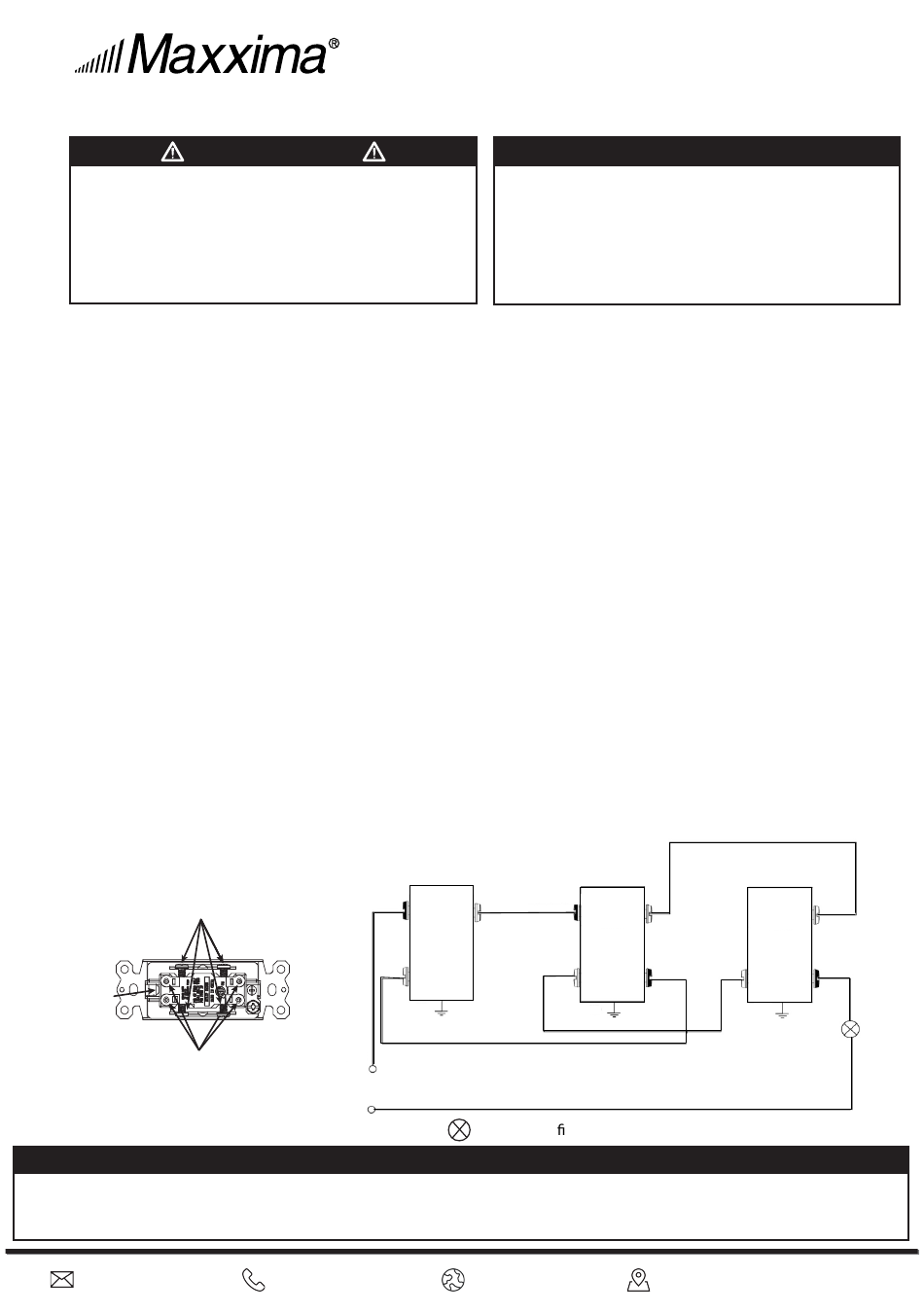

Wiring diagram for
