Maxxima MEW-RS100W Manual

MEW-RS100W
Single Pole Switch with Power Outlet
To avoid fire, shock, or death, TURN OFF POWER at circuit breaker or fuse and test that power
is off before wiring! - Use only with copper or copper clad wire -
SPECIFICATION
Single Pole Switch with Power Outlet.
15A 60Hz 120VAC – 1800W Max - Separate Feed Wiring Capable.
INSTALLATION
Caution: Break-off-fin should be removed for Separate Feed (2 circuit) and Switched Outlet installation.
Shut off power at the circuit breaker or fuse. See Warning.
1.
Remove insulation from wires (approximately 3/8" to 5/8"). The HOT terminals have the dark colored
2.
screws. Loop each wire around their respective terminal screw per the diagram below.
3. Fasten Screws securely. Terminal screws accept up to #12AWG copper or copper clad wire
4. Mount the switch using the long mounting screws provided. Attach wall plate.
Restore power at the circuit breaker or fuse. See Warning.
5.

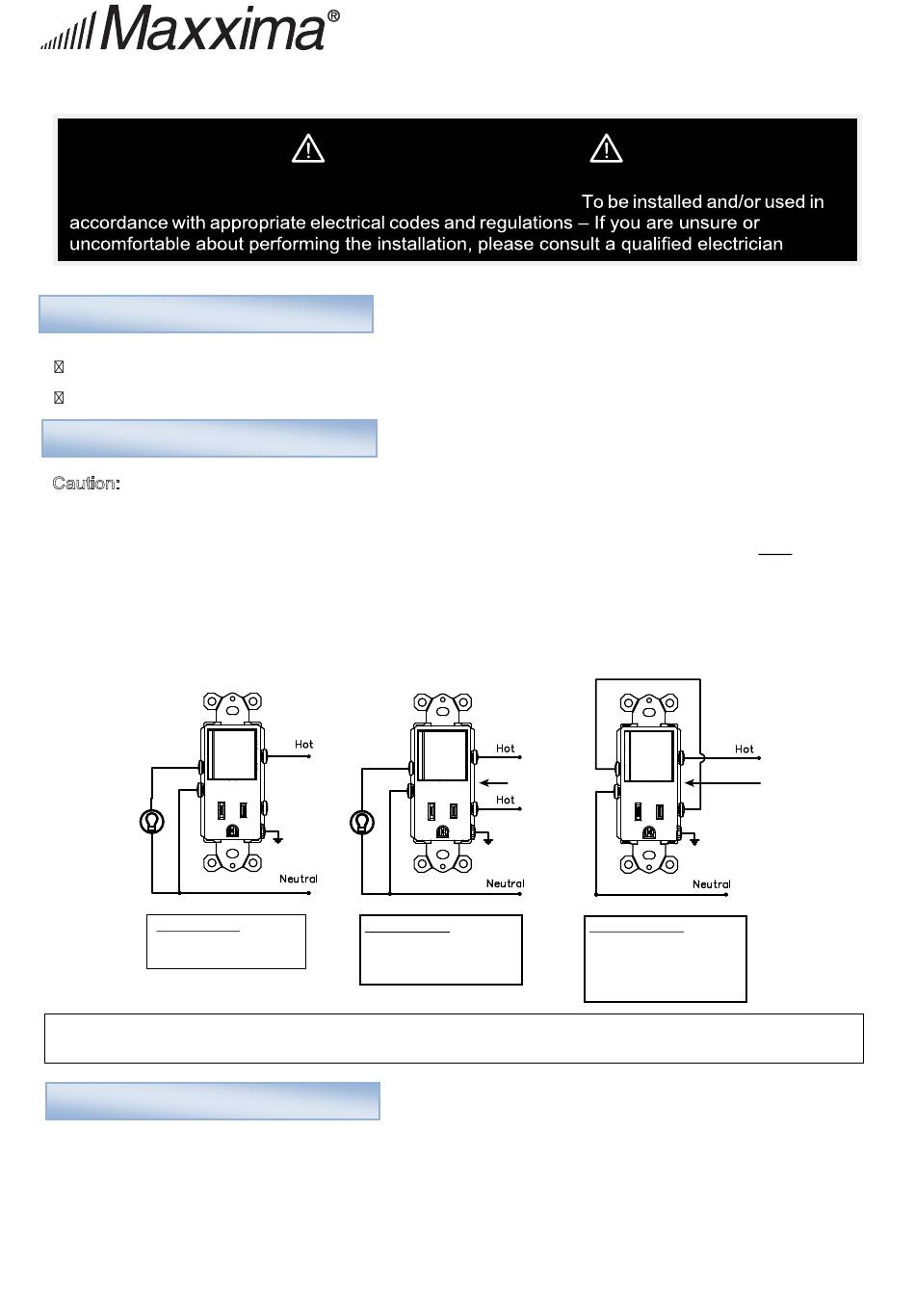

Common Feed :
Switch and power outlet
wired to one HOT circuit.
Note: For Separate Feed and/or Switched Outlet Configuration wiring, the break off fin located in between the dark colored
screws should be removed before wiring. Use a Flat Head screw driver to bend the fin until it breaks off.
WARRANTY INFORMATION
Maxxima extends a 1 year limited warranty to the original purchase that this product is free from
defects in material and/or workmanship only. Maxxima will replace any warranted product to the
original consumer/purchaser if the product fails because of defects due to workmanship and/or
materials within the limited warranty period. Limited warranty is not transferable and applies to the
original installation of the Maxxima product. This offer does not constitute in any way a product
guarantee and Maxxima does not hereby assume any obilgation whatsoever beyond sending a free
replacement product
WARNINGS
WARNING
Seperate Feed :
Switch and power outlet
on seperate circuits.
(Break off fin removed)
Break off fin
location
Switched Outlet :
Switch controls the
ON/OFF function of the
power outlet. (Break off
fin removed)
Break off fin
location
