Maxxima MEW-SC200W Manual

MEW-SC200W
Single Pole Combination Switch
To avoid fire, shock, or death, TURN OFF POWER at circuit breaker or fuse and test that power
is off before wiring! - Use only with copper or copper clad wire -
SPECIFICATION
Two Single Pole Switches with Terminal screws.
15A 60Hz 120VAC – 1800W Max - Separate Feed wiring Capable.
INSTALLATION
Caution: Break-off-fin should only be removed for Separate Feed (2 circuit) installation.
Shut off power at the circuit breaker or fuse. See Warning.
1.
Remove insulation from wires (approximately 3/8" to 5/8"). The HOT terminals have the dark colored
2.
screws. Loop each wire around their respective terminal screw per the diagram below.
3. Fasten Screws securely. Terminal screws accept up to #12AWG copper or copper clad wire
4. Mount the switch using the long mounting screws provided. Attach wall plate.
Restore power at the circuit breaker or fuse. See Warning.
5.

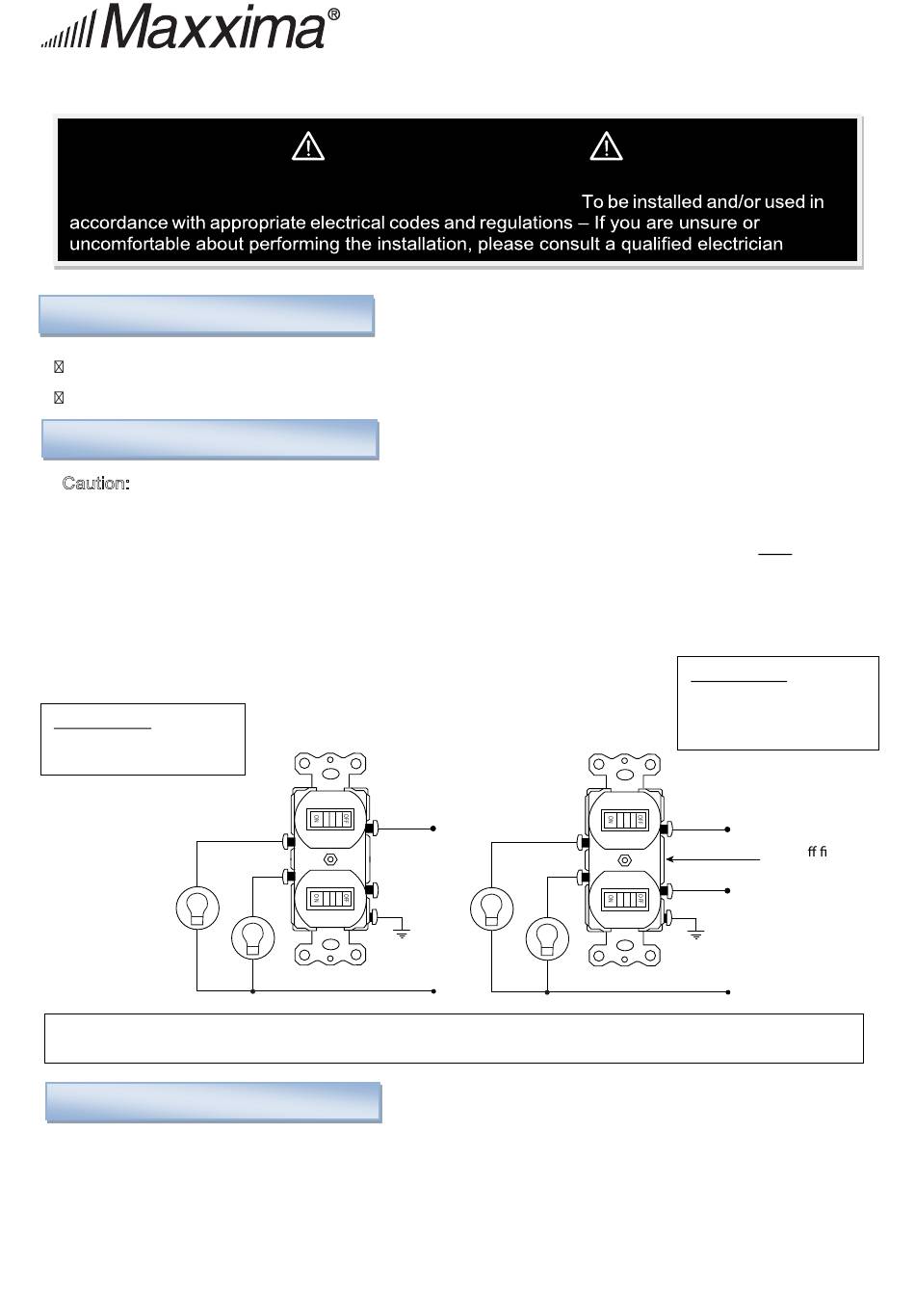

Common Feed: The two
single pole switches wired
to one HOT circuit.
Note: For Separate Feed wiring, the break-off-fin located between the dark-colored screws should be removed before
wiring. Use a Flat Head to bend the fin until it breaks off.
WARRANTY INFORMATION
Maxxima extends a 1 year limited warranty to the original purchase that this product is free from
defects in material and/or workmanship only. Maxxima will replace any warranted product to the
original consumer/purchaser if the product fails because of defects due to workmanship and/or
materials within the limited warranty period. Limited warranty is not transferable and applies to the
original installation of the Maxxima product. This offer does not constitute in any way a product
guarantee and Maxxima does not hereby assume any obilgation whatsoever beyond sending a free
replacement product
WARNINGS
WARNING
Hot
Neutral
Separate Feed: Two single
pole switches on separate
circuits. (Break off fin
removed)
Hot
Break o n
location
Hot
Neutral
