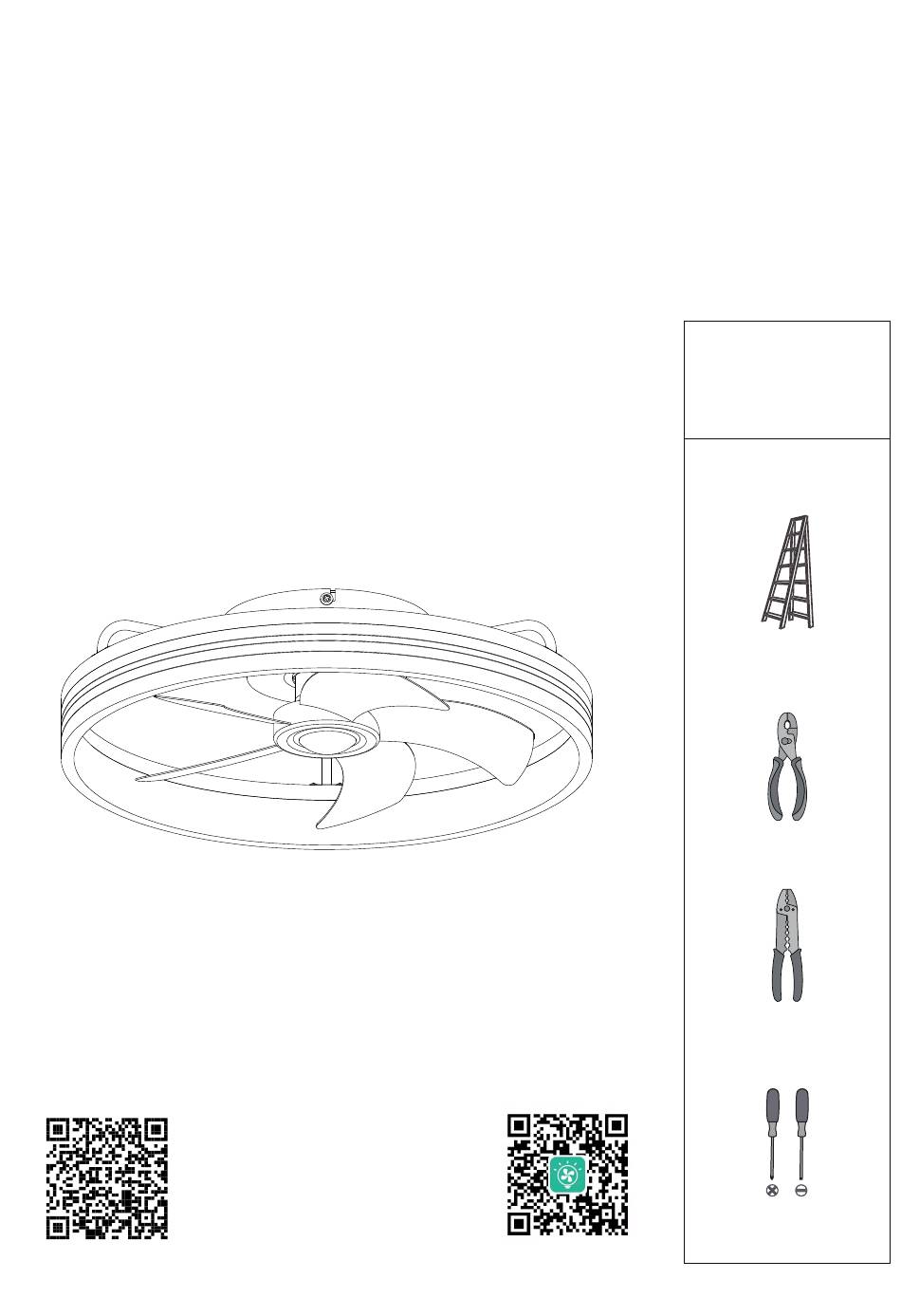

- Page 1 INSTALLATION MANUAL CEILING FAN WITH LIGHTS TOOLS REQUIRED Model No.: CFL-1105-01-MINI/CFL-1105-02-MINI Ladder Pliers Wire Strippers Screwdrivers APP Control Applicable Scan for Installation Video...
-
Page 2: Safety Rules
Safety Rules 1. Be sure the power to the wires you are working on is disconnected, either the fuse is removed or the circuit breaker is turned off. Turning the power off using the light switch is not sufficient to prevent electrical shock. 2. -
Page 3: Packing List
PACKING LIST Fan Assembly ×1 INSTALLATION KIT 1× 3× 2× 2× 2× 1× Mounting Bracket Wire Nut Outlet Box Screw Long Wood Screw Plastic Anchor "S" Hook 4× 2× 2× 1× 1× 1× Canopy Screw Pair of Gloves Short Wood Screw Remote Holder Remote Holder Anchor Remote Control... -
Page 4: Installation
INSTALLATION 1. Install the Mounting Bracket Step 1: Loosen and remove the canopy screws (GG) from the round holes, and loosen the canopy screws (GG) in the 'L' holes but do not remove them, and then remove the mounting bracket (AA) from the canopy. -
Page 5: Connect The Wires
3. Connect the Wires Step 1: Connect the wires from the fan to the house supply wires with wire nuts (BB), ground wire (green, green/yelow, or bare copper) to ground wire, neutral wire (white) to neutral wire, and hot wire (black) to hot wire. - Page 6 Install the Remote Holder 1. Insert 2 batteries before using: AAA 1.5V battery x 2pcs (not included). 2. Mark and drill screw holes in the wall, then insert the remote holder anchors (II). 3. Use short wood screws (HH) to fix the remote holder (KK) onto the wall.
-
Page 7: Remote Control Instructions
REMOTE CONTROL INSTRUCTIONS NOTE: Please insert 2 batteries before using. AAA 1.5V battery x 2pcs (not included) ① Turn on / off the light. ② Quick switch of the light color: Yellow Light→White Light→Natural Light ③⑫ Adjust the light color temperature. ④... - Page 8 APP CONTROL INSTRUCTIONS Install the "FanLamp Pro" app from Google Play, Apple App Store, or other app stores by scanning the QR code or searching for the app name. Ensure that your phone is connected to the inter- net and Bluetooth enabled. Pairing: Click the pair button within 5 seconds after turning on the fan from the wall switch.
