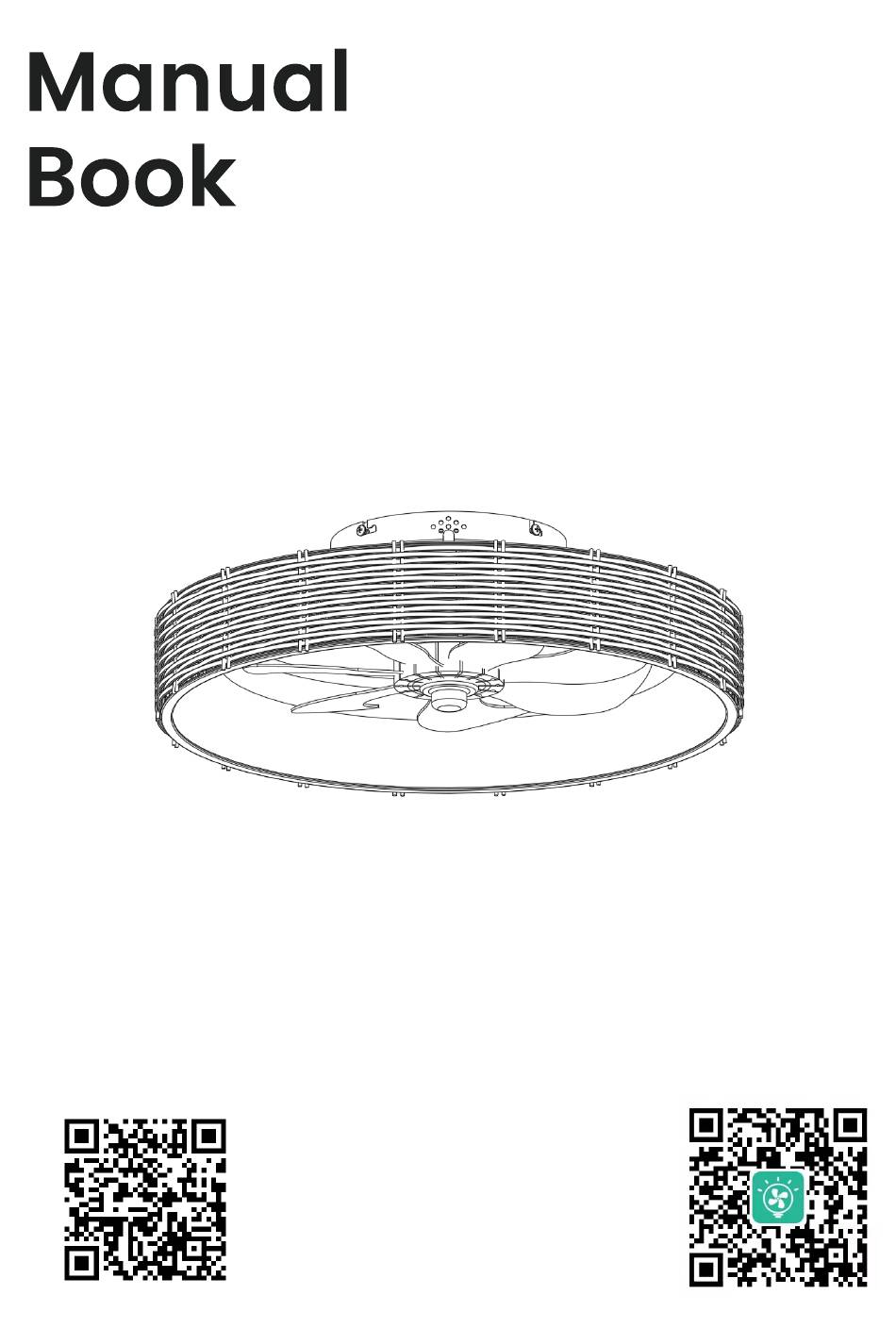

- Page 1 Ceiling Fan with Lights Model No.: D1028-01 APP Control Applicable Scan for Installation Video...
-
Page 2: Contact Information
Contact Information Please contact us with following information: 1. Screen shot of your order page, including product picture, name and order ID number. 2. Problem details with pictures / short video if possbile. Email: lightingcustomercare@gmail.com... -
Page 3: Packing List
Packing List Description Quantity Description Quantity Part Part Bracket Remote Control Canopy Remote Holder Fan Assembly Note: Some parts may be assembled together in the package. -
Page 4: Installation Kit
Installation kit Quantity Part Description Outlet Box Screw Flat Washer Wire nut Long Wood Screw Plastic Anchor Canopy Screw (assembled) “S” Hook Short Wood Screw Remote Holder Anchor Pair of Gloves Note: 1. The listed quantity is for installation, extra hardware may be included. 2. -
Page 5: Safety Rules
Safety Rules 1. Be sure the power to the wires you are working on is disconnected, either the fuse is removed or the circuit breaker is turned off. Turning the power off using the light switch is not sufficient to prevent electrical shock. 2. -
Page 6: Installation Preparation
Installation Preparation Tools You Need Ladder Pliers Screwdrivers Drill Bit Wire Power Drill (optional) (optional) Strippers If mounting to a support structure, you will also need the optional tools. What to Expect with Your Installation You may need a friend to help you. 30 inches from blade tip to nearest wall or... -
Page 7: Installation Step
Installation Step 1 (Mount the Bracket) Bracket Canopy Canopy Screw 1. Loosen canopy screws (FF) from the canopy (B) (don't take off), take out the bracket (A) from the canopy (B). 2. Mark and drill screw holes in the ceiling, then insert the plastic anchors (EE). 3. - Page 8 Installation Step 2 (Connect the Wires) Bracket "S" Hook Canopy Slot 1. Hang the fixture onto the bracket (A) with "S" hook (GG) provided. 2. Connect wires from the fixture to the wires from outlet box with wire nuts (CC), ground wire (green, green/yellow or bare copper) to ground wire, neutral wire (white) to the neutral wire, hot wire (black) to the hot wire.
- Page 9 Installation Step 3 (Fix the Canopy) 1. Align the "L" slots from the canopy (B) to the canopy screws (FF) on the bracket (A), rotate the canopy (B) to lock it onto the bracket (A). 2. Tighten the canopy screws (FF). Installation Step 4 (Install the Remote Holder) 1.
-
Page 10: Remote Control Instructions
Remote Control Instructions ⑩ ① ② ⑪ ⑫ ③ ④ ⑬ ⑤ ⑥ ⑦ ⑭ ⑧ ⑨ NOTE: Please insert 2 batteries before using. AAA 1.5V battery x 2pcs (not included) ① Turn on/off the light. ②④ Adjust the brightness of the light. ③⑫... - Page 11 APP Control Instructions NOTE: Scan the QR code and install the APP in your phone, or search and install "FanLamp Pro" from Google Play, Apple App and other APP stores. Make sure your phone is connected to the internet and bluetooth enabled. Pair button.
-
Page 12: Troubleshooting
Trouble Shooting 1. Fan doesn't work • Make sure the fixture is connected to an ON/OFF wall switch, not dimmer switch. • Check the remote control battery (not included in this package). • Check the circuit breaker to ensure the power is on. •...
