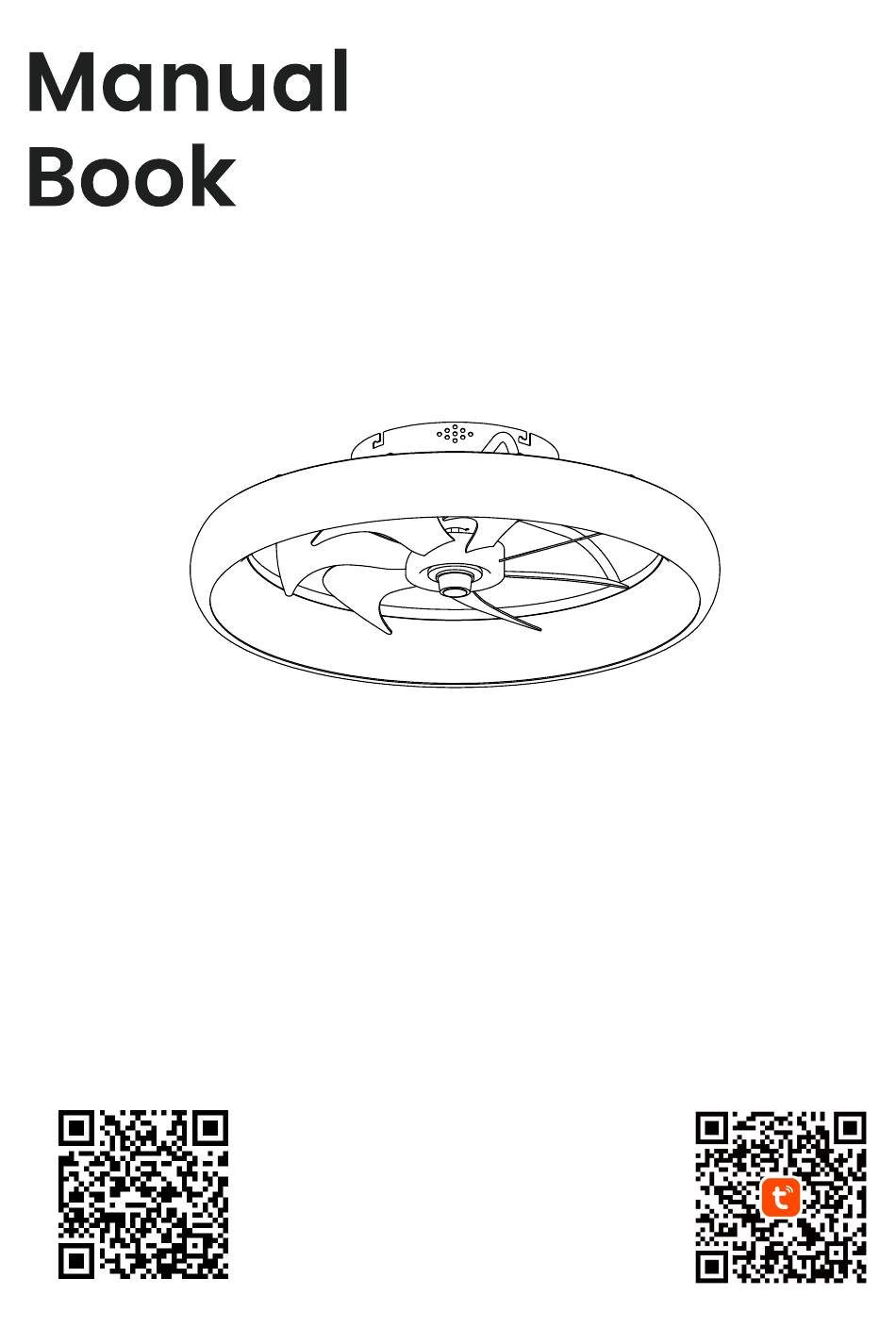

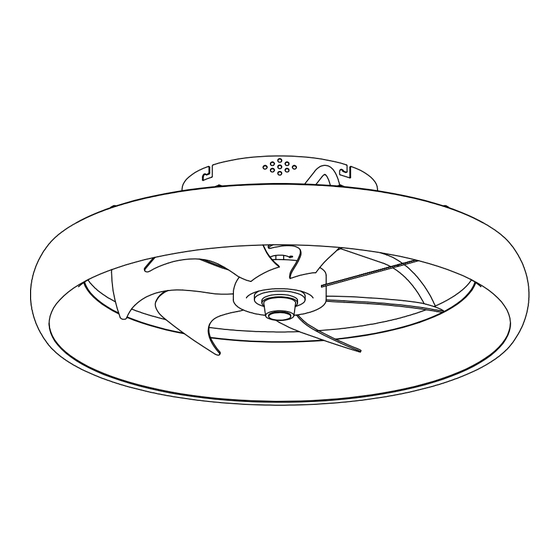

- Page 1 Ceiling Fan with Lights Model No.: Y1095-BK02 APP Control Applicable Scan for Installation Video...
-
Page 2: Contact Information
Contact Information Please contact us with following information: 1. Screen shot of your order page, including product picture, name and order ID number. 2. Problem details with pictures / short video if possbile. Email: lightingcustomercare@gmail.com... -
Page 3: Packing List
Packing List Description Quantity Description Quantity Part Part Bracket Remote Control Canopy Remote Holder Fan Assembly Note: Some parts may be assembled together in the package. -
Page 4: Installation Kit
Installation kit Quantity Description Part Canopy Screw (assembled) Wire nut Pair of Gloves “S” Hook Wood Screw (opitional) Machine Screw & Washer for Outlet Box (spares) Note: Some extra hardware may be included. The quantity listed above is the number required for installation. -
Page 5: Safety Rules
Safety Rules 1. Be sure the power to the wires you are working on is disconnected, either the fuse is removed or the circuit breaker is turned off. Turning the power off using the light switch is not sufficient to prevent electrical shock. 2. -
Page 6: Installation Preparation
Installation Preparation Tools You Need Ladder Pliers Screwdrivers Drill Bit Wire Power Drill (optional) (optional) Strippers If mounting to a support structure, you will also need the optional tools. What to Expect with Your Installation You may need a friend to help you. 30 inches from blade tip to nearest wall or... -
Page 7: Installation Step
Installation Step 1 (Mount the Bracket) Loosen screws from the canopy (don't take off), take out the bracket from the canopy. With Outlet Box: Fix the bracket onto the outlet box with screws from the outlet box, fix the cross bar of the bracket onto to the ceiling with 4 wood screws (op- tional). - Page 8 Installation Step 2 (Connect the Wires) Bracket "S" Hook Canopy Slot 1. Hang the fixture onto the bracket with "S" hook provided. 2. Connect wires from the fixture to the wires from outlet box with wire nuts, ground wire (green, green/yellow or bare copper) to ground wire, neutral wire (white or blue) to the neutral wire, hot wire (black or brown) to the hot wire.
- Page 9 Installation Step 3 (Fix the Canopy) 1. Fix the bracket screws onto the bracket but not tighten them. 2. Align the "L" slots from the canopy to the screws on the bracket, rotate the canopy to lock it onto the bracket. 3.
-
Page 10: Remote Control Instructions
Remote Control Instructions NOTE: Please insert 2 batteries before using. AAA 1.5V battery x 2pcs (not included) ①: Turn off power. ②: non-functional ③⑤⑪⑫⑬⑭: Turn on the fan on 1/2/3/4/5/6 speed. ④: Turn off the fan. ⑩: Fan moves forwards or reversely. ⑥⑦: Adjust the brightness of the light. - Page 11 Tuya App Setup Step 1 (Download and Install the Tuya App) Scan the QR code and install the APP in your phone, or search and install "Tuya" from Google Play, Apple App and other APP stores. Make sure your phone is connected to the internet and bluetooth enabled.
- Page 12 Tuya App Setup Step 3 (Setup Your Fan with Tuya App) 1.Tap 'Add Device' 2.Find 'ceiling fan (BLE+Wi- 3.Follow Tuya app on home page Fi)' to add if the device doesn't setup step 2 in Pg 10 to enter pairing mode prompt out automatically 4.If you are experiencing link- 5.Select 2.4GHz Wi-Fi net-...
- Page 13 Tuya App Control Instructions Turn on/off the fan. Slide to change the fan speed. Fan moves forward or reverse Fresh wind / Natural wind Turn on/off the light. Slide to change the brightness of the light. Slide to change the color temperature of the light.
- Page 14 Alexa Voice Control Setup Please download the ALEXA app and sign in to your account before proceeding with the following steps 1.After pairing you device 3.Sign in with amazon 2.Tap 'Alexa' with Tuya app. Open Tuya app and tap 'Me' 4.Tap 'LINK' and follow 5.When the page jumps 6.Open Alexa app...
- Page 15 Alexa Voice Control Setup NOTE: 1.When using Alexa App to control, the fan and light function are in different control pages. 2.Please enter the Fan and Light Control Page separately and set distinct device names for the fan and light functions. Doing so will prevent Alexa from misunderstand- ing voice commands,...
- Page 16 Alexa Voice Control Command Function Name Voice Control Command Light power Alexa，turn on <light device name> Alexa，turn off <light device name> Light Brightness Alexa，brighten <light device name> Alexa，dim <light device name> Alexa，set <light device name> to <1-100> percent Light Color Alexa，make <light device name>...
- Page 17 Google Home Control Setup Please download the Google Home app and sign in to your account before proceeding with the following steps 1.After pairing you device 2.Tap 'Google Assistant' 3.Tap 'Link with Google Assistant' with Tuya app. Open Tuya app and tap 'Me' 4.Waiting for the page 5.After completing the 6.Light and fan will appear...
- Page 18 Google Home Control Setup 7.Select the light device and 8.Follow the same 9.Two devices will appear steps to complete the follow the instructions on the on the main page page to complete the setup fan device setup The setup is complete and you can use your voice to control the de- vices, for example:...
- Page 19 Google Home Control Command Function Name Voice Control Command Light power Hey Google，turn on <light device name> Hey Google，turn off <light device name> Light Brightness Hey Google，brighten <light device name> Hey Google，dim <light device name> Hey Google，set <light device name> to <1-100> percent Light Color Hey Google，set <light device name>...
-
Page 20: Troubleshooting
Trouble Shooting 1. Fan doesn't work • Make sure the fixture is connected to an ON/OFF wall switch, not dimmer switch. • Check the remote control battery (not included in this package). • Check the circuit breaker to ensure the power is on. •...
Need help?
Do you have a question about the Y1095-BK02 and is the answer not in the manual?
