ASSEMBLY AND MOUNTING INSTRUCTIONS
60-5625
Please read the Assembly lnstruction sheet carefully before proceeding. Carefully
unpack and identify all parts prior to building the unit. Each part is identified on the
drawing for reference.
DO NOT DISCARD THE ORIGINAL PACKAGING. If after careful inspection and you
must return the item for any reason. Please repack the unit using the original carton
and inserts.

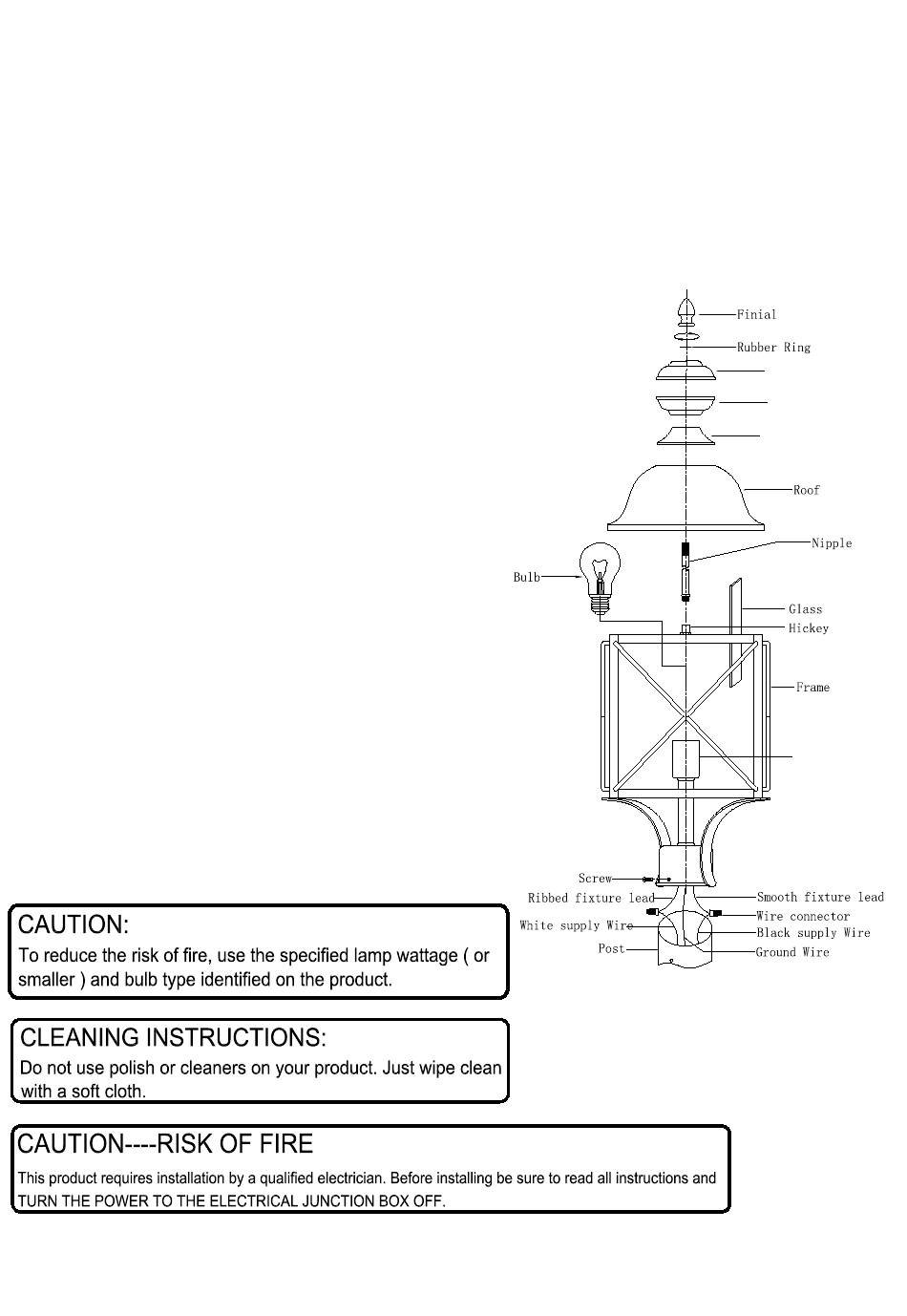

STEP 1:Unpack all the parts and classify them
according to the illustration shown at the side. Place
the parts on a scratch free surface.
1.Dome
2.Dome
STEP 2: Install the glass panels into the frame and fix
3.Dome
it using the clips.
STEP 3: lnstall the correct bulbs (not provided).
STEP 4: Connect the nipple to the hickey, secure the
roof, domes to the hickey using the rubber ring and
final.
STEP 5: Make sure the power is turned off at the main
power cable where the fixture is to be installed. Use
the wire nuts to connect the positive and neutral
wires, connect the ground wire to the junction box
ground port.
Socket
STEP 6: Secure the fixture to the post fitter using the
screws.
Turn on the power at fuse or circuit box.
