- Page 1 User Manual...
-
Page 2: Table Of Contents
Type-C to HDMI(4K/60Hz)/Type-C Data/USB-Ax2/RJ45/3.5mm Audio/SD/TF/Type-C PD Charging with DP1.4 Alt mode Contents 1.0 INTRODUCTION ..........1 2.0 FEATURES ..........1 3.0 SPECIFICATIONS ........2 4.0 PACKAGE CONTENTS ........3 5.0 CONNECTION DIAGRAM ......4... -
Page 3: Dear Customer
Type-C to HDMI(4K/60Hz)/Type-C Data/USB-Ax2/RJ45/3.5mm Audio/SD/TF/Type-C PD Charging with DP1.4 Alt mode DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or using this product. Please keep this manual for future reference. -
Page 4: Specifications

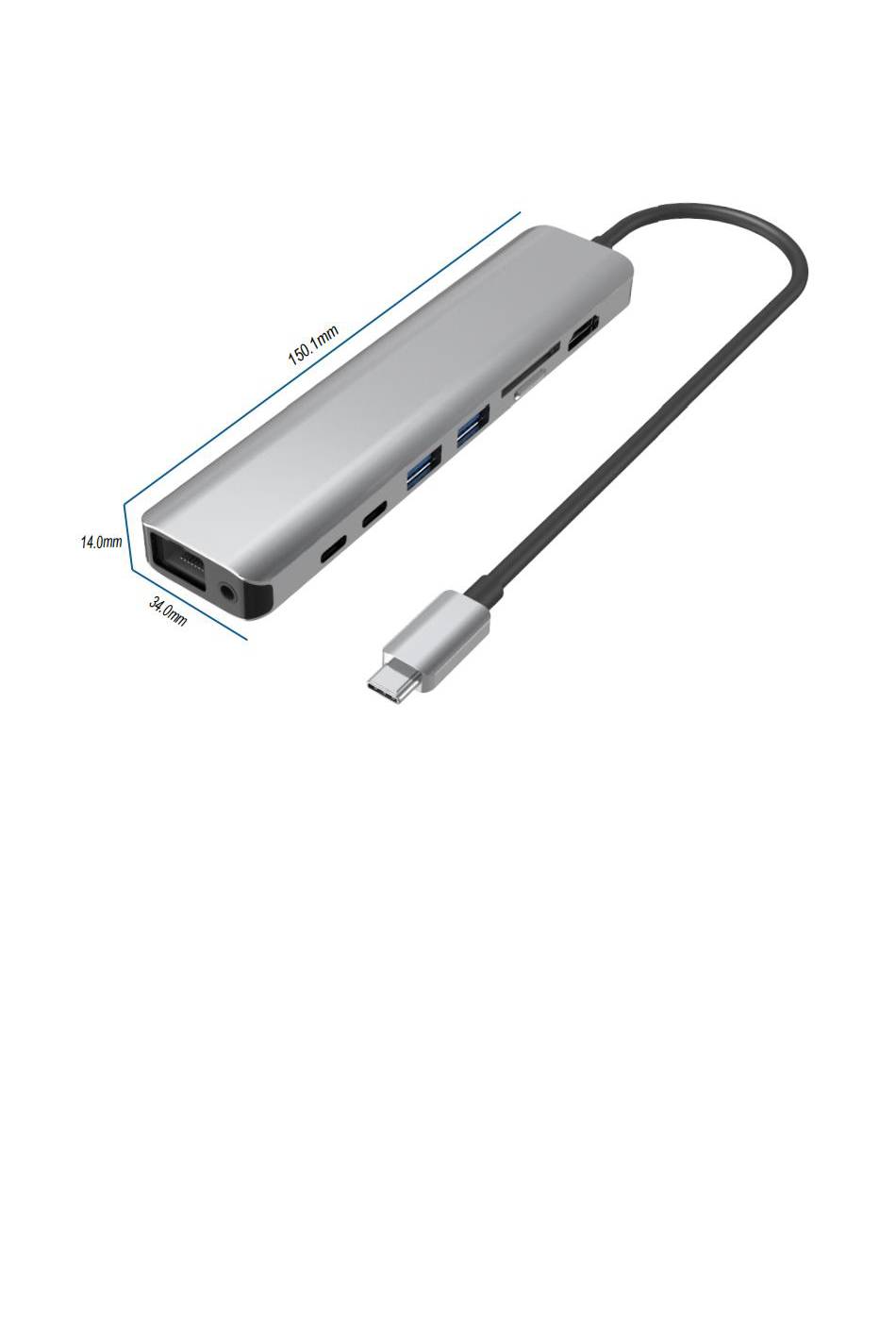

Type-C to HDMI(4K/60Hz)/Type-C Data/USB-Ax2/RJ45/3.5mm Audio/SD/TF/Type-C PD Charging with DP1.4 Alt mode 3.0 SPECIFICATIONS Input/Output Connector Input Type-C Male x1 Output HDMI x1 Type-C Data x1 USB-A x2 SD/TF x1 RJ45 x1 3.5mm Audio port x1 Type-C PD Charging x1 Type-C Malex1(Connect to host) ... -
Page 5: Package Contents
Type-C to HDMI(4K/60Hz)/Type-C Data/USB-Ax2/RJ45/3.5mm Audio/SD/TF/Type-C PD Charging with DP1.4 Alt mode Support Wake-On-LAN Support full duplex flow control Light indicator indicates the state, no light when no Internet connected, orange light turns on when network connection is established, green light flashes when transmitting data. -
Page 6: Connection Diagram
Type-C to HDMI(4K/60Hz)/Type-C Data/USB-Ax2/RJ45/3.5mm Audio/SD/TF/Type-C PD Charging with DP1.4 Alt mode 5.0 CONNECTION DIAGRAM...
