DT0004, DT0005 User's Guide
DT0004
DEAR CUSTOMER
Thank you for purchasing this product. For optimum performance and safety, please
read these instructions carefully before connecting, operating or using this product.
Please keep this manual for future reference.
1.0 INTRODUCTION

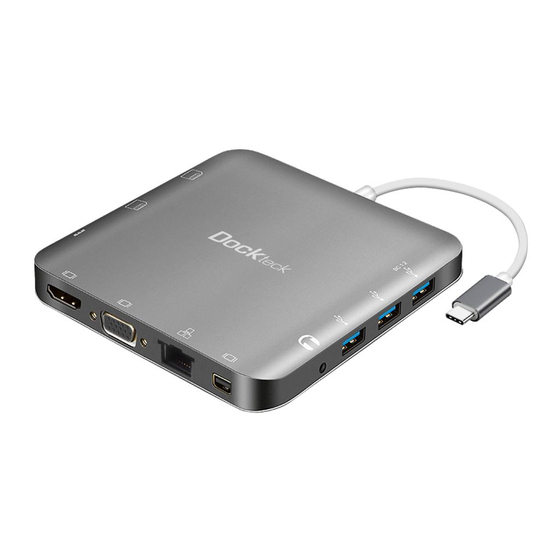

Dockteck USB-C multiport hub offers integrated solution for power, data and video.
It allows you to connect Type-C host PC to VGA, HDMI, Mini DisplayPort display for
video transmission, to USB-A devices for data transmission. It also helps the host PC
to get access to Ethernet through RJ45 port. Besides, the SD/MMC and Micro SD card
slot helps to read the information of the external memory in the host PC and the
USB-C female port can charge for the host computer.
2.0
FEATURES
● USB-C male input, connects your type-c laptops. If you need to hook your
Type-C smart phone, you need a
or 87W USB-C power adapter, because the original wall charger of your smart
phone probably could not meet the hub's requirements.
● Support HDMI Female, Mini DisplayPort Female, VGA Female, USB-C
Female, USB 3.0 Female, Gigabit Ethernet, Stereo, SD Card, Micro DS Card,
USB-C interface
●Support HDMI resolution up to 4kx2k@30Hz
●Support Mini DisplayPort resolution up to 4kx2k@30Hz
●Support VGA resolution up to 1920x1200@60Hz
● The total output of the 3 USB-A is 10W(5V@2A)(When hooked external
USB-C PD power adapter), 1 port supports BC 1.2, with max 7.5W(5V@1.5A),
the other two ports share max 5W (5V@1A), so if you had used BC 1.2 port
to hook your portable driver, the other 2 USB 3 ports would share 0.5A.
You can hook one external driver to BC 1.2 port, the other two USB 3.0 ports
connects USB wired mouse and keyboard.
Wireless mouse and keyboard are not recommended.
● Support 10/100/1000Mbps bandwidth, if your router does not support
1000M Ethernet, you also could not get 1000M when you used this hub. It
depends on your router's performance and your network carrier.
●Stereo port supports both microphone and headphone(CTIA standard)
DT0005
larger USB-C power adapter,
http://www.cablecreation.com
1 / 7
like 45W, 61W,
Advertisement
Table of Contents
Related Manuals for DOCKTECK DT0004
Summary of Contents for DOCKTECK DT0004
- Page 1 Please keep this manual for future reference. 1.0 INTRODUCTION Dockteck USB-C multiport hub offers integrated solution for power, data and video. It allows you to connect Type-C host PC to VGA, HDMI, Mini DisplayPort display for video transmission, to USB-A devices for data transmission. It also helps the host PC to get access to Ethernet through RJ45 port.
- Page 2 ● USB-C female charging port for Macbook or Google new Chromebook Pixel and other USB-C supported devices. Note:If you were using some kinds of Windows 10 laptop, or Android smart phone, and you had hooked your original wall charger, and found the hub could not charge your laptop or phone, you can consider purchase a 45W, 61W, USB-C power adapter since the hub would take 15W when you hooked your power adapter considering the stability of the hub.
- Page 3 Input USB-C Male x1 Output HDMI Female x1 Mini DP Female x1 VGA Female x1 USB-C Female x1 USB 3.0 Female x3 RJ45 X1 Stereo x1 SD card slot x1 Micro SD card slot x1 USB-C Female x1 for PD charging Warranty Limited Warranty 2 Year...
- Page 4 Ethernet cable 7) Connect the Stereo port to earphone(Support CTIA) 8) Insert Micro SD and SD/MMC cards into the card reader ports 9) Connect the Type C charging port, it can charge for the MacBook and support this adapter to work simultaneously Note: 1.
- Page 5 the other monitor would not work. 2, HDMI and Mini DP can show independently On Windows 10. you really want HDMI and Mini DP to show independently on macOS. Refer my following solution. 1, Install a Windows 10 on your Mac with Bootcamp . The following link for your reference.
- Page 6 convert HDMI/DVI port DisplayPort monitor. It could not convert HDMI/DVI signal. Note: It can convert to VGA signal. Always connect one hard drive to BC 1.2 port. My Hard Driver Never plug two hard drivers at the same time could not work. unless you have powered your hard drive with external power adapter.
- Page 7 https://www.apple.com/shop/product/MRW22LL/A/61w-usb-c-powe r-adapter Yes. When you turned off your laptop’s lid, the hub would not work if you When I turned off my did not hook a power adapter. Because when you turn off your laptop’s display, the monitor lid, most laptops would enter into sleep status. Then the hub would not would not work work.
