STEP 1.
Prior to Installation:
A) Bushwacker only approves installing the flares according to
these
written
instructions
WARNING: Failure to install according to these instructions will
invalidate the warranty. This includes, but is not limited to using
alternative installation methods, hardware, or materials. DO NOT
USE: Loctite, SuperGlue, or similar products on the hardware or
the flares.
Fit:
B)
Verify you have ordered the correct Body Cladding for your
vehicle make and model and check their fit.
Painting :
(
C)
Optional) if paint is desired it must be done prior to
installing flares on the vehicle clean outer surface with a good
grade degreaser. DO NOT USE LACQUER THINNER OR
ENAMEL REDUCER AS A DEGREASER. Wipe outer surface
thoroughly with a tack rag prior to paint.
Paint flares using a high quality enamel, or polyurethane
automotive paint. (Application of a primer coat is optional)

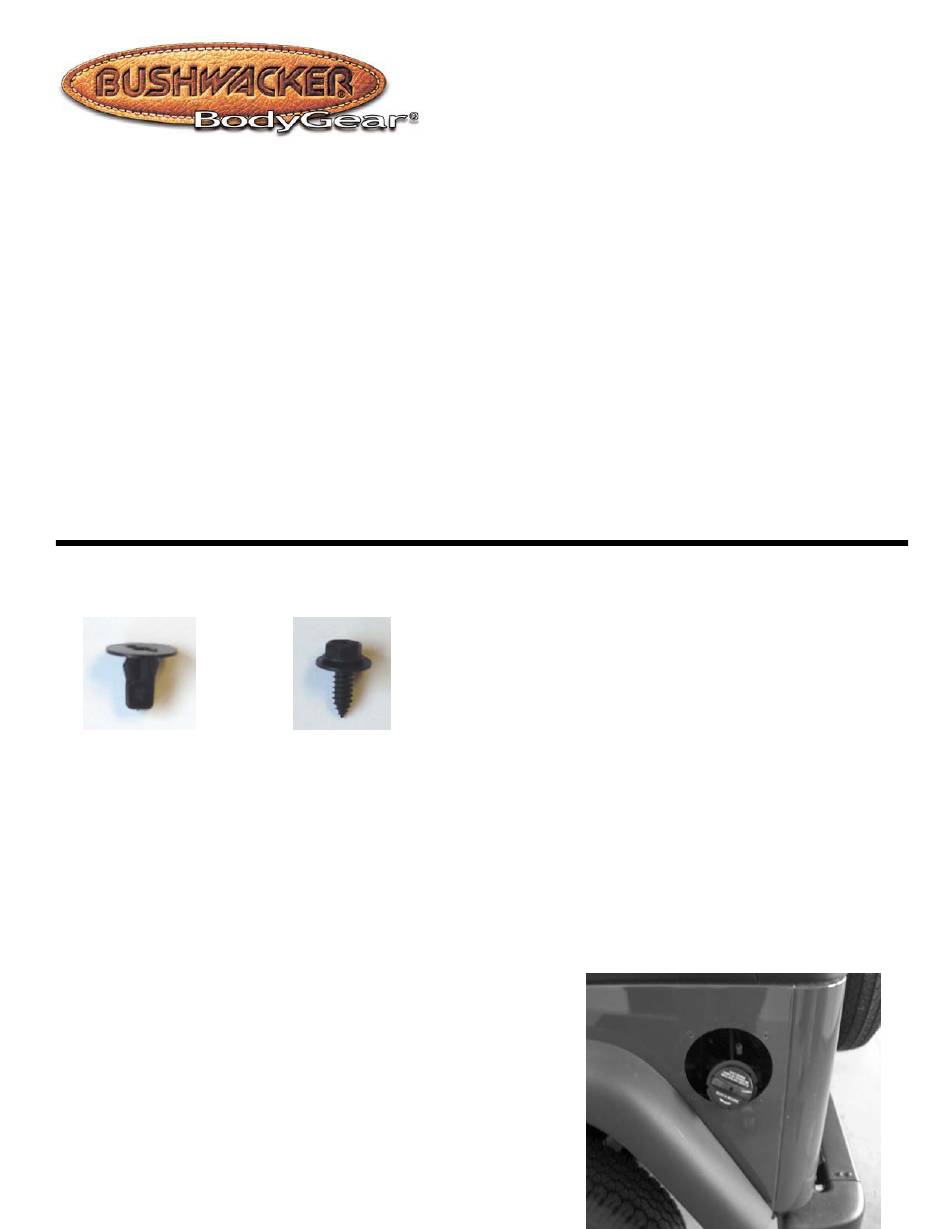

Kit Supplied Hardware:
Square Plastic
Grommet
(4 per)
INSTALLATION PROCEDURES
IMPORTANT NOTE: Ambient Temperature – During installation: the vehicle, the parts, and the tape
need to be between 60° and 110°F for proper adhesion. Vehicle surface must also be wiped with alcohol
to remove dirt and grease, which may also affect adhesion. Failure to maintain proper installation
temperature and surface preparation may result in the part not functioning correctly.
STEP 2: Driver Side Rear Corner
Installation
A) Remove the Gas Tank Outer Flange using a T25 Torx
Bit, retaining factory hardware for later use. (8 screws)
See Figure #1.
with
the
hardware
provided.
10mm Hex
Screw
(4 per)
Jeep TJ Trail Armor Rear
Corners
for use with Bushwacker Flares
Set Part # 14001
Rev 1 01/08/10
TOOLS FOR EASY INSTALLATION
•
Utility Knife
•
#2 Phillips Drive bit
•
¾" Socket
•
Socket Wrench
•
T25 Torx Bit
•
T30 Torx Bit
•
8mm Socket
•
Marker
Advertisement
Related Manuals for BUSHWACKER BodyGear 14001
Summary of Contents for BUSHWACKER BodyGear 14001
- Page 1 Bushwacker Flares Set Part # 14001 Rev 1 01/08/10 STEP 1. TOOLS FOR EASY INSTALLATION Prior to Installation: • Utility Knife A) Bushwacker only approves installing the flares according to • #2 Phillips Drive bit these written instructions with hardware provided.
- Page 2 B) Remove the Tail Light Lens using a #2 Philips screwdriver (4 screws), then remove tail light housing using 10mm socket wrench (3 screws) retaining the factory hardware for later use. See Figure #2. C) Remove the License Plate and License Plate holder (4 screws) using a 10mm socket wrench, retaining factory hardware for later use.
- Page 3 B) Using a T30 Torx Bit, remove the screw holding the lower rubber tire stop in place, retaining both the screw and the rubber tire stop. See Figure #4. C) Peel red vinyl backing from the tape on the Rear Panel. D) Using the hole in the center of the Rear Panel as a guide, align with the hole located in the vehicle.
