fossLED FLWP1T User Manual

User Guide
- FLWP1T
RF / DMX Control - 1 Zone Tuneable Touch Wall Panel
Features
● Sensitive Tuneable White & Brightness Slider
●
2.4GHz wireless technology, control distance of up to 30m.
●
LED light indicator on controller
●
Set and save several Scene modes
●
When used as an RF controller it can be Paired with multiple receivers.
● 1 Zone Touch panel compatible with fossLED FLDC4Y (RF) or FLCD5Z-WIFI (RF & WIFI) Receivers for Smart Control
Integration
Technical Parameters
● Output signal: RF(2.4GHz)
● Input Voltage: 12 - 24VDC use LED Driver LEDD-IP1224
●
Light Type: Tuneable White
● Size: 86x86x35 mm
● Remote distance up to 30m within Free Range. Please allow for 12m within
areas restricted by obstacles.
.
Pairing Guide
Pairing your Wall Panel with each 2.4G RF receiver
● Using the "Match Key"
1. Match: Switch off receiver power, then switch on power again,
short press zone key 3 times on the wall panel quickly within 5s after receiver power on,
the link has been completed once the connected LED lights flash 3 times.
Repeat this process to link further receivers to the wall panel.
2. To Delete a match: Switch off power to the receiver, then switch on power again,
short press the zone key you are deleting 5 times on the remote within 5s after power on,
the unlink has been completed once the connected LED lights flash 5 times.
● At Power Up
Match the controller with our receiver (Without using the Match Key)
Match Switch off receiver power, then switch on power again, (Perform Twice) then
short press zone key 3 times on the remote quickly within 5s after receiver power on,
:
1.
the link has been completed once the connected LED lights flash 3 times.
2. To Delete a match: Switch off power to the receiver, then switch on power again,
short press the zone key you are deleting 5 times on the remote within 5s after power on,
the unlink has been completed once the connected LED lights flash 5 times.
IP20 RF DMX
.
.
5
Key Functions
EXT
Brightness +
Brightness -

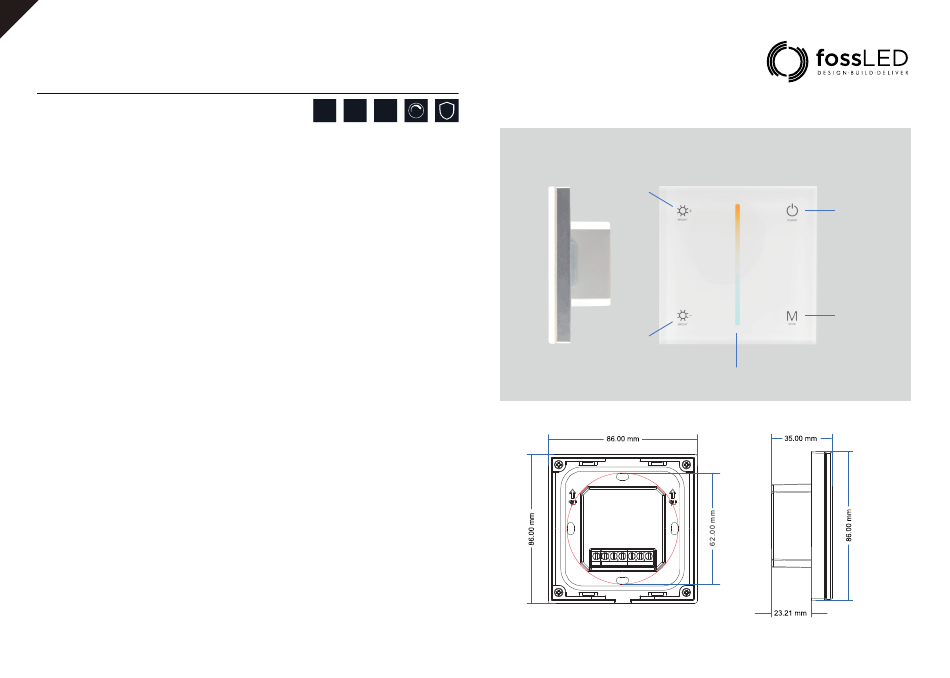

Dimensions
Power
Pre-set Lighting
Modes
Colour Temperature
Touch Slider
