fossLED FLWP1S User Manual

User Guide
- FLWP1S

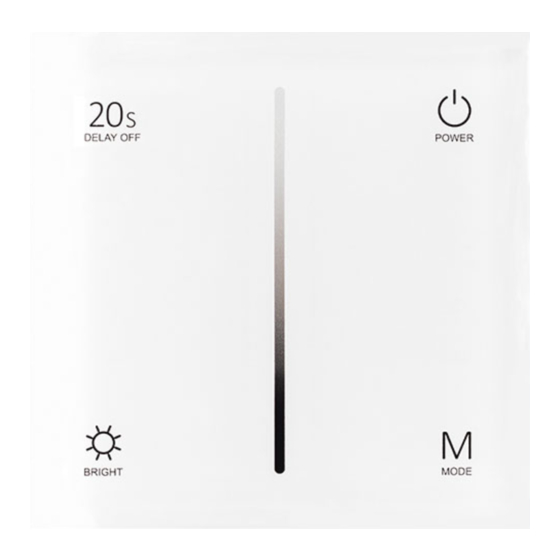

RF Control - Single Zone Dim Touch Wall Panel

Features

●
Single Colour
● Sensitive brightness adjustment touch slider.
●
● Pair with one or multiple receivers.
● Battery powered (1 x CR2032).
●
Technical Parameters
● Output signal: RF(2.4GHz)
● Input Voltage: 12-24VDC use LED Driver LEDD-IP1024
● Output Current: 4CH, 3A/CH
● Output Power: 144 - 288W
● Light Type: Single Colour
● Size: 86x86x35 mm
● Remote distance up to 30m within Free Range. Please
allow for 12m within areas restricted by obstacles.

Pairing Guide

Pairing your Wall Panel with each 2.4G RF receiver
● Using the "Match Key"
1. Match Switch off receiver power, then switch on power again,
:
short press zone key 3 times on the wall panel quickly within 5s after receiver power on,
the link has been completed once the connected LED lights flash 3 times.
Repeat this process to link further receivers to the wall panel.
2. To Delete a match: Switch off power to the receiver, then switch on power again,
short press the zone key you are deleting 5 times on the remote within 5s after power on,
the unlink has been completed once the connected LED lights flash 5 times.
● At Power Up
Match the controller with our receiver (Without using the Match Key)
Match Switch off receiver power, then switch on power again,
short press zone key 3 times on the remote quickly within 5s after receiver power on,
:
1.
the link has been completed once the connected LED lights flash 3 times.
2. To Delete a match: Switch off power to the receiver, then switch on power again,
short press the zone key you are deleting 5 times on the remote within 5s after power on,
the unlink has been completed once the connected LED lights flash 5 times.
1S.
.
.

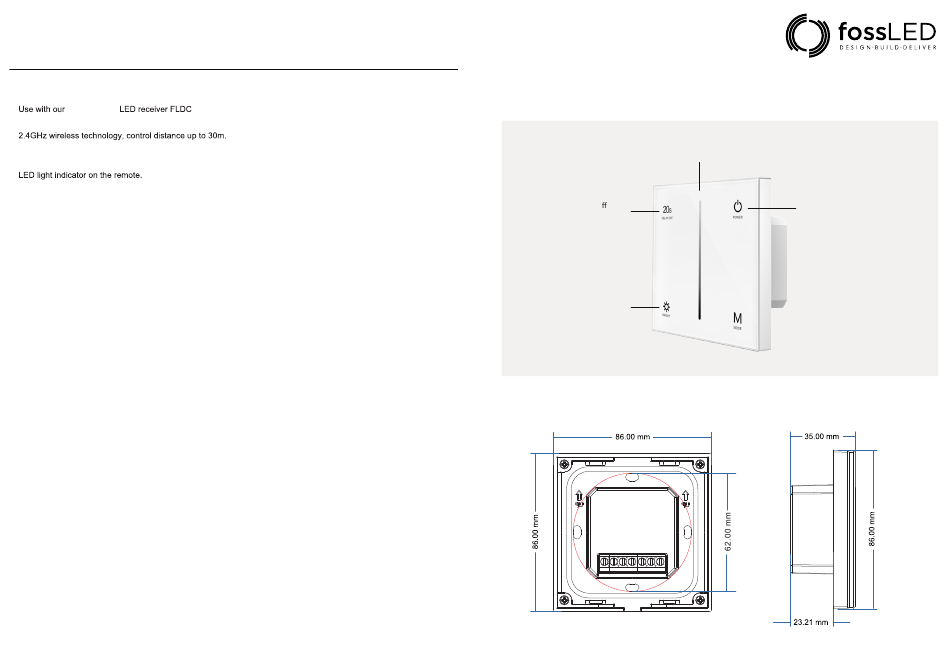

Key Functions

Turn Lights o after
20 seconds
10 Quick Select
Brightness Levels
Dimensions
Brightness
Slider
Power
RF Receivers - FLCT1S
