fossLED FLWP4T User Manual

User Guide
- FLWP4T
RF / DMX Control - 4 Zone Tuneable Touch Wall Panel

Features

Features
●
4 Zone Touch panel compatible with both DMX512 (FLDC4Y-DMX) and RF (FLDC4Y) receivers.
● Sensitive tunable white and dimmable slider.
●
● When used as an RF controller it can be Paired with multiple receivers.
●
Set and save several Scene modes
●

Technical Parameters

● Output signal: RF(2.4GHz) + DMX512
● Input Voltage: 85-265VDC
● Light Type: Tuneable White
● Size: 86x86x35 mm
● Remote distance up to 30m within Free Range. Please allow for 12m within
areas restricted by obstacles.
.

Pairing Guide

Pairing your Wall Panel with each 2.4G RF receiver
● Using the "Match Key"
1. Match Switch off receiver power, then switch on power again,
:
short press zone key 3 times on the wall panel quickly within 5s after receiver power on,
the link has been completed once the connected LED lights flash 3 times.
Repeat this process to link further receivers to the wall panel.
2. To Delete a match: Switch off power to the receiver, then switch on power again,
short press the zone key you are deleting 5 times on the remote within 5s after power on,
the unlink has been completed once the connected LED lights flash 5 times.
● At Power Up
Match the controller with our receiver (Without using the Match Key)
Match Switch off receiver power, then switch on power again,
short press zone key 3 times on the remote quickly within 5s after receiver power on,
:
1.
the link has been completed once the connected LED lights flash 3 times.
2. To Delete a match: Switch off power to the receiver, then switch on power again,
short press the zone key you are deleting 5 times on the remote within 5s after power on,
the unlink has been completed once the connected LED lights flash 5 times.
.
.

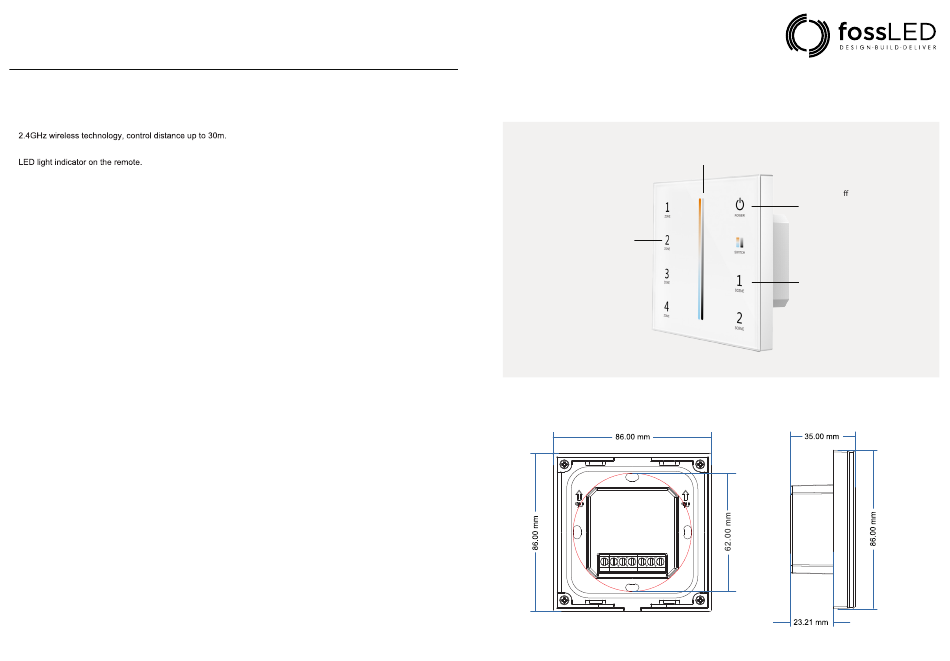

Key Functions

Tuneable White / Brightness
Zone Selection - Short press to
select and turn on lighting in
that Zone. Long press 2s to
turn of the lighting in this
Zone.
Short press multiple Zone keys
quickly to control Zones
simultaneously.

Dimensions

Slider
Turn On/O
Lighting in all
Zones
Short press will recall
previously saved scenes. To
save a new scene, hold scene
button for 2s.
RF Receiver - FLDC4Y
DMX Receiver - FLDC4Y-DMX
