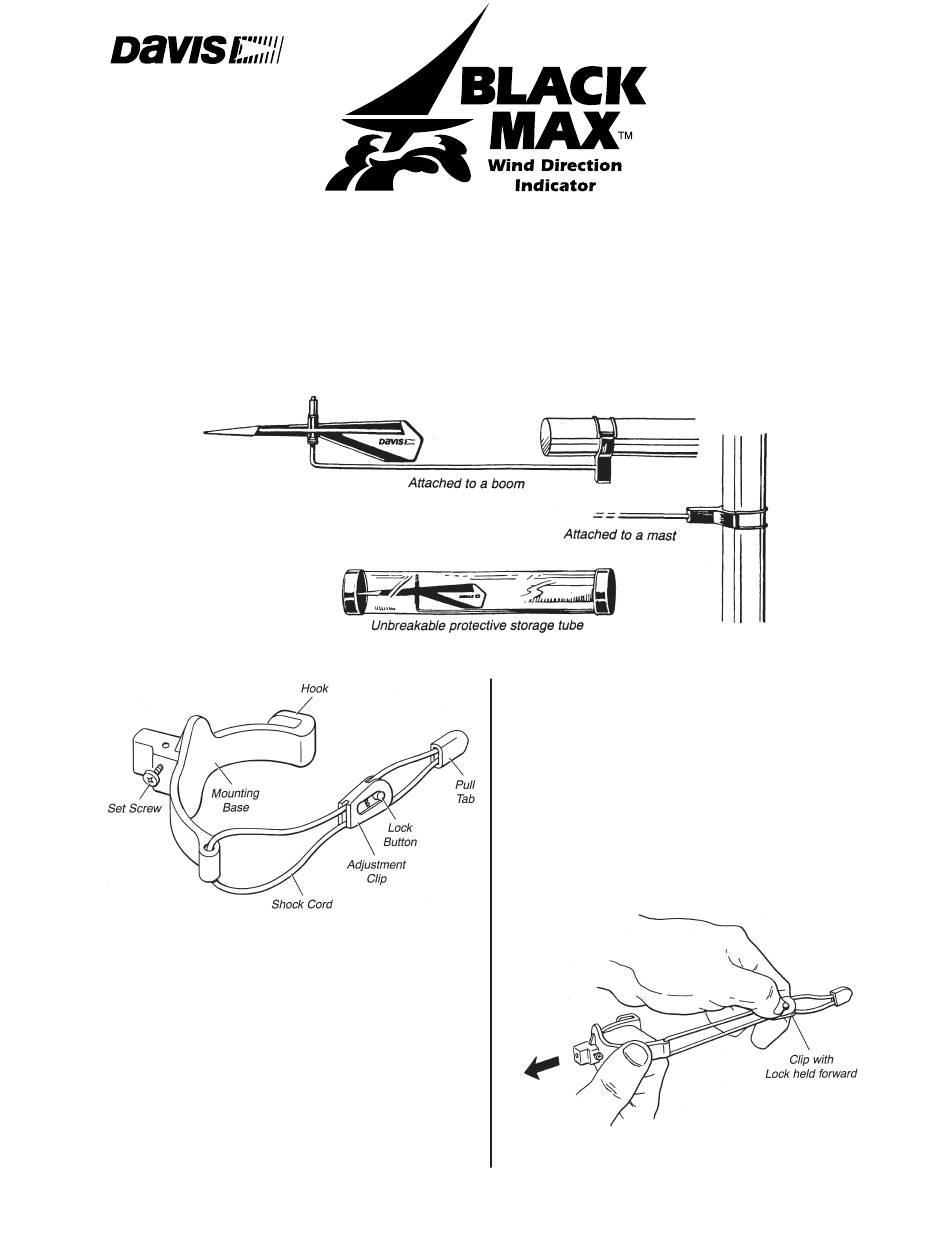

Black Max™ is a versatile, high performance wind direction indicator that attaches
quickly to masts and booms on most small boats such as Lasers and Sunfish.
The tough, high impact plastic vane is designed to withstand years of punishment
and the abuse of small boat sailing. The stainless steel mounting arm and set
screw, as well as a tough plastic mounting base, add to the system's durability.
Wind vane length 8" (20 cm). Unique adjusting system fits masts or booms from
1
1
/
–2
1
/
" (38 to 64 mm). Comes in an unbreakable, protective storage tube.
2
2
MOUNTING INSTRUCTIONS
Adjustable for masts or booms between 1
(38–64 mm)
• Adjust the shock cord to fit snugly around the
mast or boom. To tighten, draw cord through the
adjustment clip using the pull tab. To loosen, slide
the lock button forward (away from the mounting
base). Then prevent the lock button from sliding
back by placing your thumbnail against it while you
pull the cord back through the adjustment clip.
#1295
/
–2
/
"
1
1
2
2
Continued...
Advertisement
Related Manuals for DAVIS BLACK MAX 1295
Summary of Contents for DAVIS BLACK MAX 1295
- Page 1 ® #1295 Black Max™ is a versatile, high performance wind direction indicator that attaches quickly to masts and booms on most small boats such as Lasers and Sunfish. The tough, high impact plastic vane is designed to withstand years of punishment and the abuse of small boat sailing. The stainless steel mounting arm and set screw, as well as a tough plastic mounting base, add to the system’s durability. Wind vane length 8" (20 cm). Unique adjusting system fits masts or booms from –2 " (38 to 64 mm). Comes in an unbreakable, protective storage tube. MOUNTING INSTRUCTIONS Adjustable for masts or booms between 1 –2 " (38–64 mm) • Adjust the shock cord to fit snugly around the mast or boom. To tighten, draw cord through the adjustment clip using the pull tab. To loosen, slide the lock button forward (away from the mounting base). Then prevent the lock button from sliding back by placing your thumbnail against it while you pull the cord back through the adjustment clip. Continued…...
- Page 2 • Wrap shock cord around mast or boom, stretching • Adjust the vinyl keeper so Black Max turns freely it until the clip is captivated by the hook on the yet doesn’t have too much play. mounting base. Replacement Parts Contact your dealer or Davis Instruments to order replacement parts. 1452 Black Max Extra Vane • Insert the Black Max stainless steel arm into the mounting base and tighten set screw. Two holes are provided, allowing mast or boom mounting: Davis Instruments 3465 Diablo Ave., Hayward, CA 94545 U.S.A. (510) 732-9229 • Fax (510) 732-9188 support@davisinstruments.com www.davisinstruments.com 1295_WEB-C September 2023...
