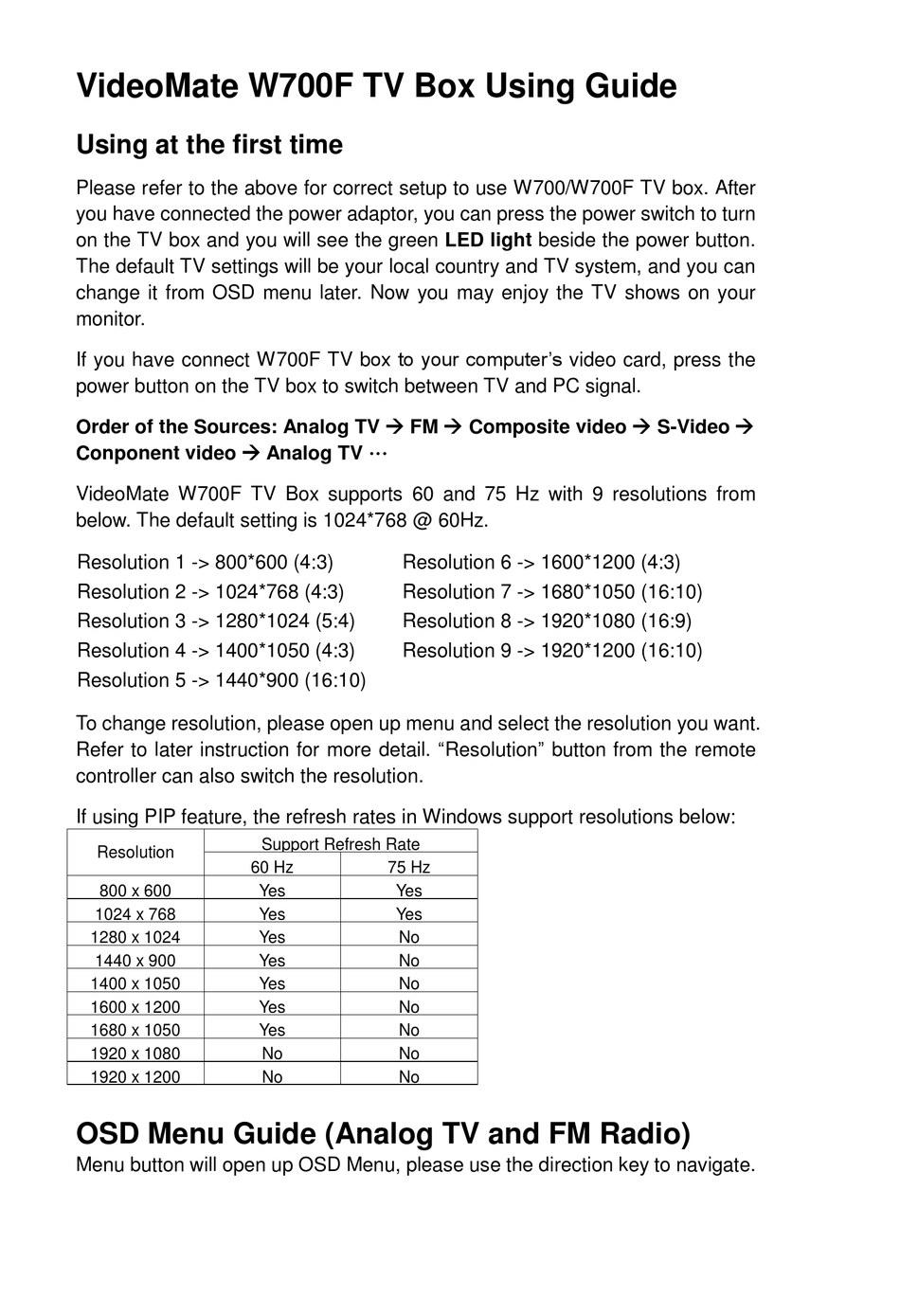

VideoMate W700F TV Box Using Guide

Using at the first time
Please refer to the above for correct setup to use W700/W700F TV box. After
you have connected the power adaptor, you can press the power switch to turn
on the TV box and you will see the green LED light beside the power button.
The default TV settings will be your local country and TV system, and you can
change it from OSD menu later. Now you may enjoy the TV shows on your
monitor.
If you have connect W700F TV box to your computer's video card, press the
power button on the TV box to switch between TV and PC signal.
Order of the Sources: Analog TV  FM  Composite video  S-Video 
Conponent video  Analog TV ...
VideoMate W700F TV Box supports 60 and 75 Hz with 9 resolutions from
below. The default setting is 1024*768 @ 60Hz.
Resolution 1 -> 800*600 (4:3)
Resolution 2 -> 1024*768 (4:3)
Resolution 3 -> 1280*1024 (5:4)
Resolution 4 -> 1400*1050 (4:3)
Resolution 5 -> 1440*900 (16:10)
To change resolution, please open up menu and select the resolution you want.
Refer to later instruction for more detail. "Resolution" button from the remote
controller can also switch the resolution.
If using PIP feature, the refresh rates in Windows support resolutions below:
Resolution
800 x 600
1024 x 768
1280 x 1024
1440 x 900
1400 x 1050
1600 x 1200
1680 x 1050
1920 x 1080
1920 x 1200
OSD Menu Guide (Analog TV and FM Radio)
Menu button will open up OSD Menu, please use the direction key to navigate.
Resolution 6 -> 1600*1200 (4:3)
Resolution 7 -> 1680*1050 (16:10)
Resolution 8 -> 1920*1080 (16:9)
Resolution 9 -> 1920*1200 (16:10)
Support Refresh Rate
60 Hz 75 Hz
Yes Yes
Yes Yes
Yes No
Yes No
Yes No
Yes No
Yes No
No No
No No
