Lumitec 101478 Manual

Perimeter Light Installation Instructions
Lumitec flood lights should be installed by
qualified persons only. Establish the electrical
connections per ABYC guidelines. Light circuits
should be protected with an appropriately sized
fuse. Fuses on circuits with multiple lights should
be sized accordingly. Lights are protected by an
over-temperature circuitry and will not overheat.
For Single Color "LT" Products (2 wires)
Wire lights as directed to any standard SPST "On/Off" switch and fuse
properly. Simply turn the light On and Off. No additional instruction needed.
For 2 Color with Dimming Products (2 wires)
Note that the light ramps in intensity over a period of about 3 seconds on
startup. To enable a "dimmed mode" simply interrupt the ramp in intensity with
a brief off/on toggle of the power. Intensity can be set from a soft glow to full
power. A subsequent off/on toggle allows the light to change colors.
For 2 Color - Flashing Products (3 wires)
Wire to any standard 3-way "On/Off/On" switch or 2 separate 2-way "On/Off"
switches. The "red" wire controls the white light and can be dimmed using the
method described above. The "orange" wire controls the flashing light.
Pre-Drill For #6 Screws
Perimeter Light Installation Instructions
Lumitec flood lights should be installed by
qualified persons only. Establish the electrical
connections per ABYC guidelines. Light circuits
should be protected with an appropriately sized
fuse. Fuses on circuits with multiple lights should
be sized accordingly. Lights are protected by an
over-temperature circuitry and will not overheat.
For Single Color "LT" Products (2 wires)
Wire lights as directed to any standard SPST "On/Off" switch and fuse
properly. Simply turn the light On and Off. No additional instruction needed.
For 2 Color with Dimming Products (2 wires)
Note that the light ramps in intensity over a period of about 3 seconds on
startup. To enable a "dimmed mode" simply interrupt the ramp in intensity with
a brief off/on toggle of the power. Intensity can be set from a soft glow to full
power. A subsequent off/on toggle allows the light to change colors.
For 2 Color - Flashing Products (3 wires)
Wire to any standard 3-way "On/Off/On" switch or 2 separate 2-way "On/Off"
switches. The "red" wire controls the white light and can be dimmed using the
method described above. The "orange" wire controls the flashing light.
Pre-Drill For #6 Screws
Lumens: 1,000 (cold)
Color Temp: 5000
Color Rendering: 70+
IP67 Compliant
Voltage: 10 - 30vDC
12vDC Amps: 1.30A
24vDC Amps: 600mA

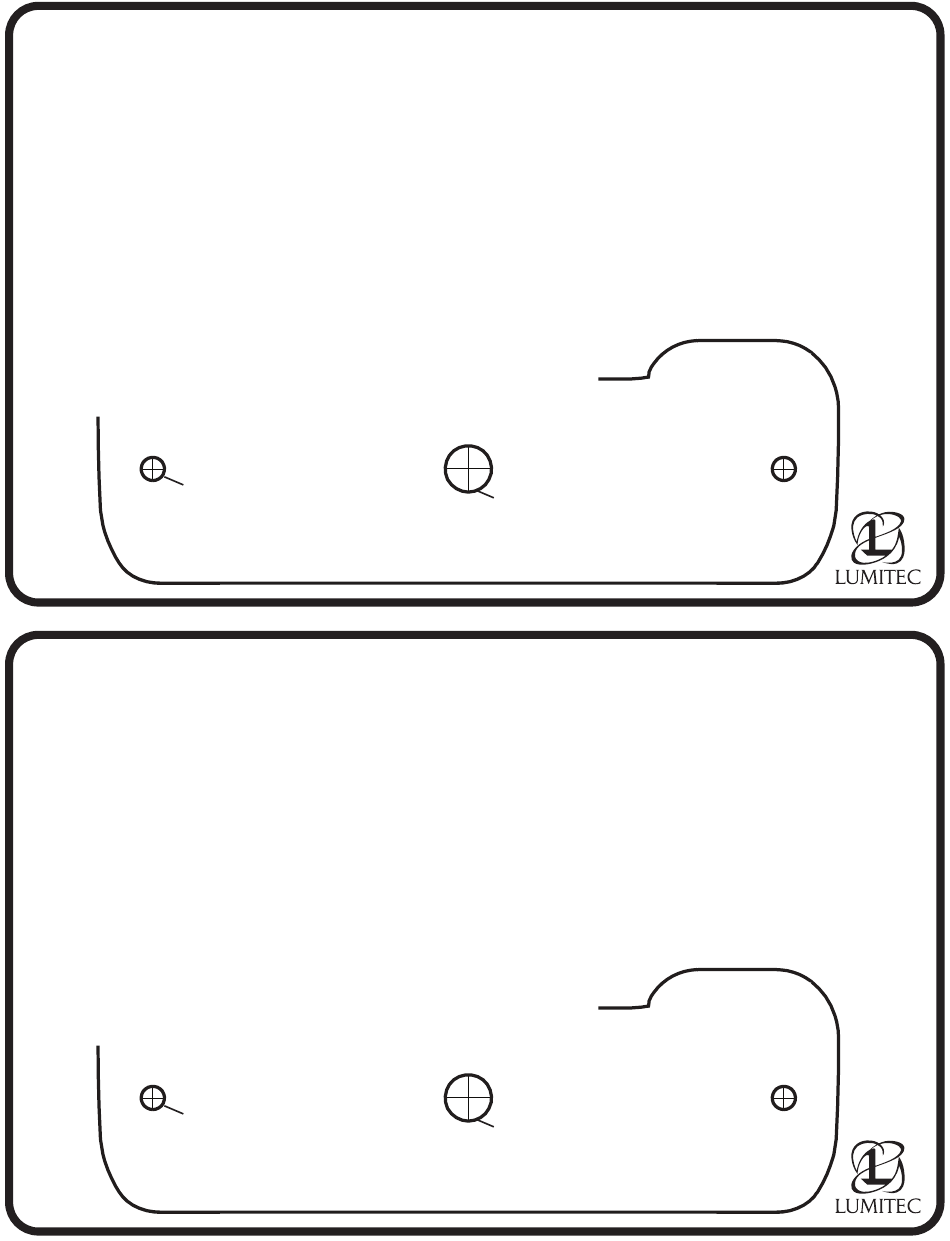

Drill 1/4" Wire Exit Hole
TEMPLATE TO SCALE
Lumens: 1,000 (cold)
Color Temp: 5000
Color Rendering: 70+
IP67 Compliant
Voltage: 10 - 30vDC
12vDC Amps: 1.30A
24vDC Amps: 600mA
Drill 1/4" Wire Exit Hole
TEMPLATE TO SCALE
3 Year Limited Warranty
The product is warranted to be free from defects in
workmanship and materials for a period of three years from
the date of original purchase. Lumitec is not responsible for
product failure caused by abuse, neglect, improper
installation, or failure in applications other than those for
which it was designed, intended, and marketed. Should
your Lumitec product prove defective during the warranty
period, promptly notify Lumitec and return product with
freight prepaid. Lumitec will, at its option, repair or replace
the product or defective portion without charge for parts or
labor, or, at Lumitec's option, refund purchase price.
Products repaired or replaced under this warranty shall be
warranted for the unexpired portion of the warranty
applying to the original product(s). No warranty or
affirmation of fact, express or implied, other than as set
forth in the limited warranty statement above is made or
authorized by Lumitec, Inc. Any liability for consequential
and incidental damages is expressly disclaimed. Lumitec
liability in all events is limited to, and shall not exceed, the
purchase price paid.
Visit lumiteclighting.com for more details
3 Year Limited Warranty
The product is warranted to be free from defects in
workmanship and materials for a period of three years from
the date of original purchase. Lumitec is not responsible for
product failure caused by abuse, neglect, improper
installation, or failure in applications other than those for
which it was designed, intended, and marketed. Should
your Lumitec product prove defective during the warranty
period, promptly notify Lumitec and return product with
freight prepaid. Lumitec will, at its option, repair or replace
the product or defective portion without charge for parts or
labor, or, at Lumitec's option, refund purchase price.
Products repaired or replaced under this warranty shall be
warranted for the unexpired portion of the warranty
applying to the original product(s). No warranty or
affirmation of fact, express or implied, other than as set
forth in the limited warranty statement above is made or
authorized by Lumitec, Inc. Any liability for consequential
and incidental damages is expressly disclaimed. Lumitec
liability in all events is limited to, and shall not exceed, the
purchase price paid.
Visit lumiteclighting.com for more details
