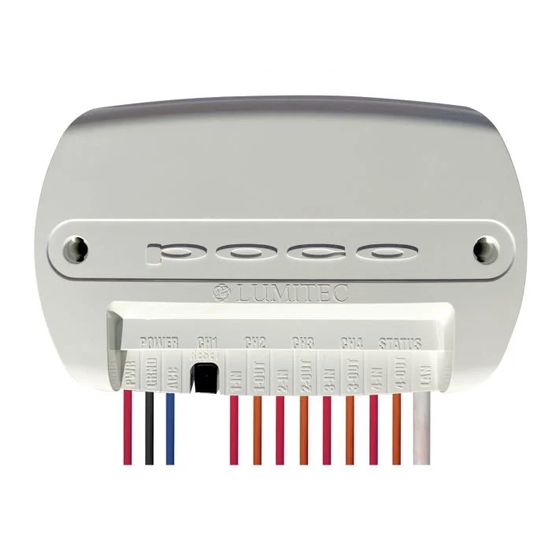

Lumitec Poco Quick Start Manual

1
STEP 1:

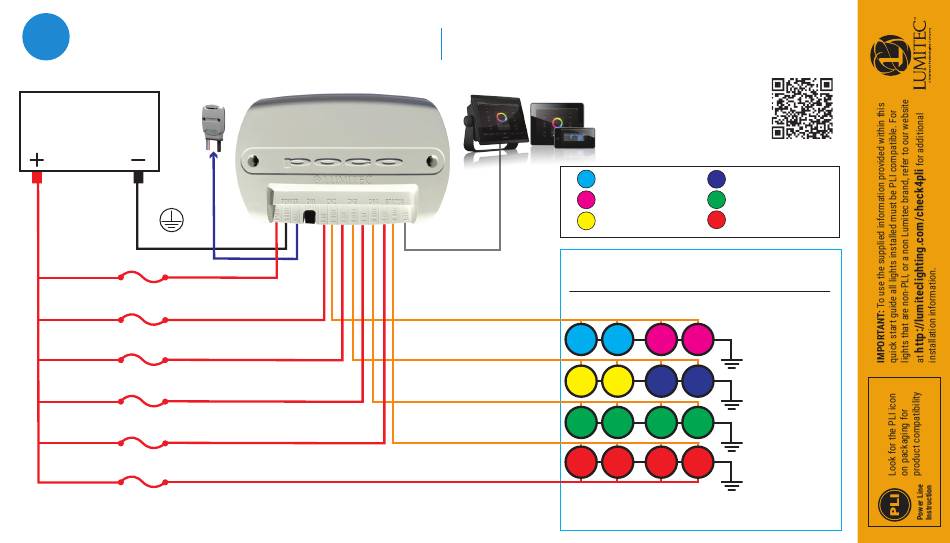

Plan and Install Your Digital Lighting System
To Pico S8 Module
(optional)
BATTERY
12 or 24 vDC
Power Wire Ground Wire
3A Fuse
10A Fuse Max
10A Fuse Max
10A Fuse Max
10A Fuse Max
Fuse size is based on number
of underwater lights
POCO Replaces Physical Switches
ACC IN
PWR IN
CH1 IN
CH2 IN
CH3 IN
CH4 IN
http://lumiteclighting.com/poco-quick-start
MFD or Wireless Device
CALCULATE YOUR AMP DRAW
Ethernet Connection
(optional)
Total amps per channel must be below 10 Amps
Amp Draw at Lights
CH1 OUT
0.5A
CH2 OUT
0.5A
CH3 OUT
1.25A 1.25A
CH4 OUT
0A
Amp draw information is available
on product packaging or at
lumiteclighting.com
Go to Quick
Start Webpage
Aft Hardtop Lights
Fwd Spreader Lights
Aft Spreader Lights Under Gunwale Lights
Fwd Hardtop Lights Underwater Lights
Total Amps Per/CH
= 3.5 Amps
0.5A 1.25A 1.25A
0.5A 1.25A 1.25A
= 3.5 Amps
1.25A 1.25A = 5 Amps
0A 0A 0A = 0 Amps
