Delancey
®
Dual Control Widespread
Lavatory Faucet
Thank you for selecting American Standard...
the benchmark of fine quality for over 140 years.
To ensure that your installation proceeds smoothly-please read
these instructions carefully before you begin.
RECOMMENDED TOOLS
Flat Head Screwdriver
1

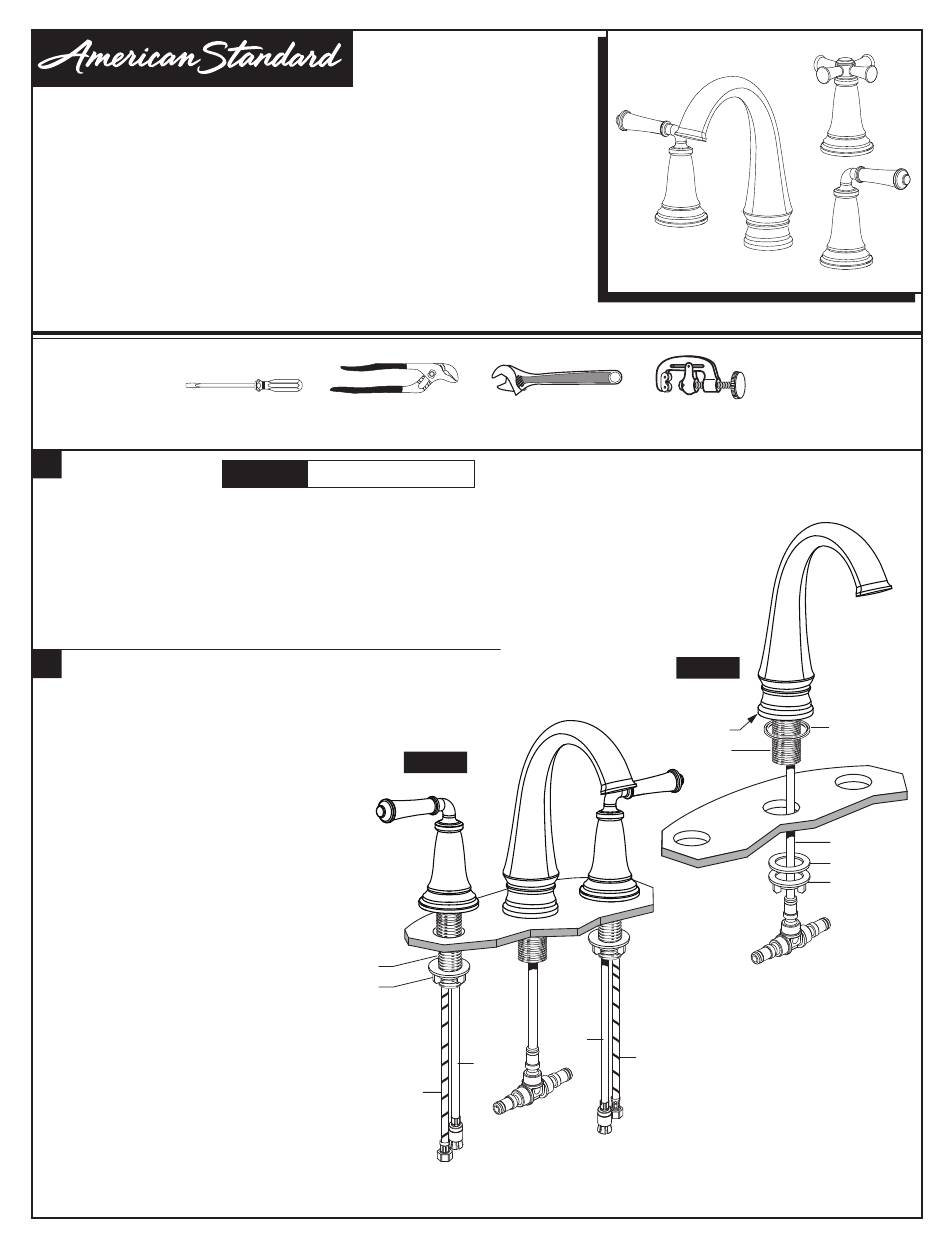

INSTALL SPOUT
Fig. A.
• Insert SHANK (1) and HOSE (2) through center hole, making sure
SEAL WASHER (3) is properly seated in spout base.
• From below, push RETAINING WASHER (4) onto SHANK (1). Secure faucet
with MOUNTING NUT (5).
• Align and center SPOUT. Tighten MOUNTING NUT (5).
1A
INSTALL VALVE BODIES
Fig. B.
• Remove LOCKNUT (6) from SIDE VALVE SHANKS (7).
• Insert Hot and Cold SIDE VALVE HOSES (8),
FLEXIBLE SUPPLIES (8a) into mounting holes.
• Thread LOCKNUT (6) onto each SIDE VALVE
SHANK (7) from underside of sink or
mounting surface.
• Align and center SIDE VALVES. Tighten
LOCKNUTS (6).
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2018
INSTALLATION
INSTRUCTIONS
Slip Jaw Pliers
Turn off hot and cold water
CAUTION
supplies before begining.
7
6
8 Red Stripe
(HOT)
7052807
7052827
7052814
Adjustable Wrench
Fig. B.
8a
8a
- 1 -
Certified to comply with ANSI A112.18.1M
Tubing Cutter
Fig. A.
SPOUT BASE
1
8 Blue Stripe (COLD)
3
2
4
5
M965993 (10/18)
